EGR “SPOOFER” INSTALLATION
If you decide to disable the EGR, you will need to follow these instructions. In
order for the Edge Racing Product to work properly on 2010-11 trucks with
a disabled EGR, the EGR Sensor needs to be unplugged and replaced with a
“spoofer”. (NOTE: For 2007.5-2009 trucks, DO NOT plug the Male “Spoof-
er” into the engine harness as described.
However, the female connector may be
used to seal and protect the EGR Hous-
ing Connector.
Installation Steps:

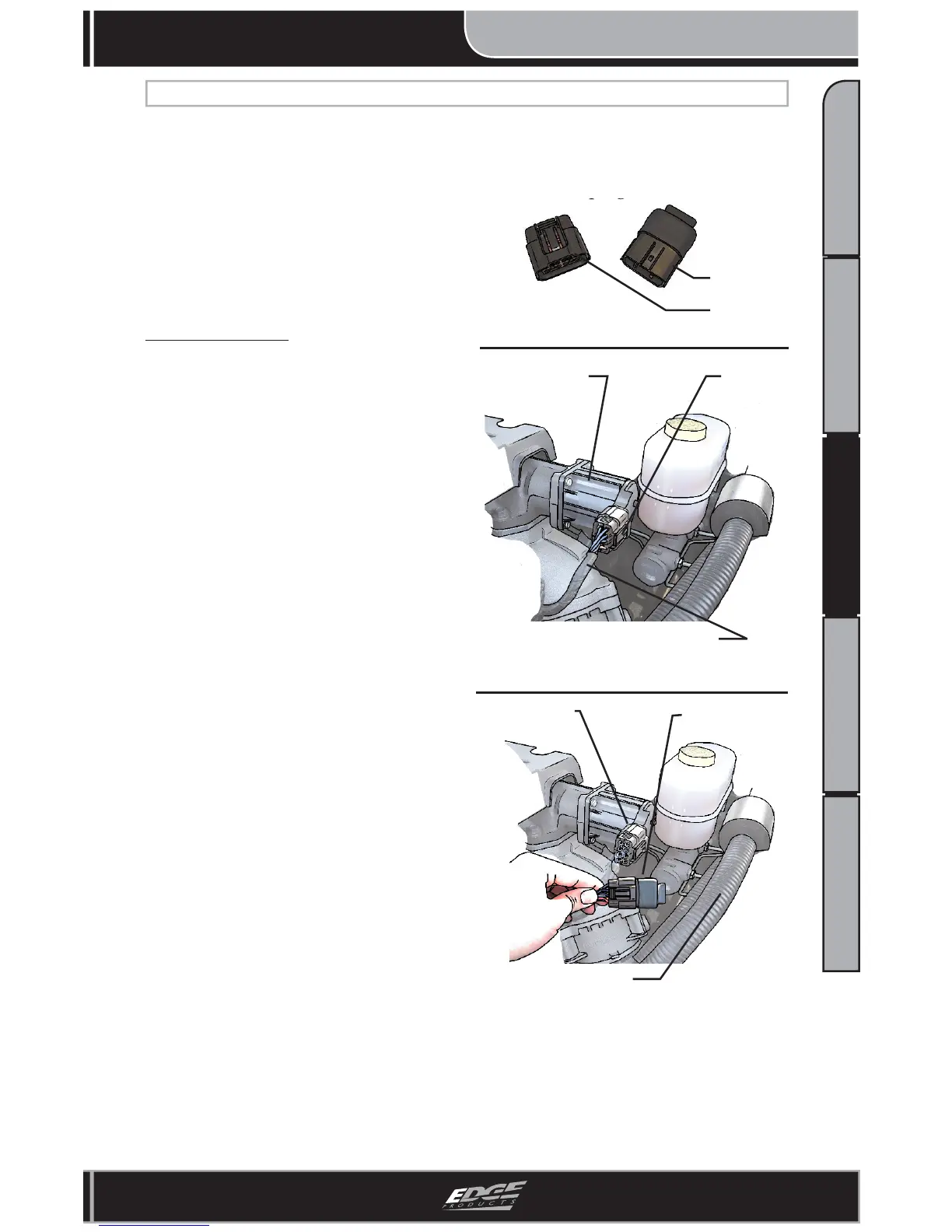

1. Locate the EGR Sensor housing
underneath the hood. It is located on the
driver side.
(See Figure 3)
2. Remove the EGR Sensor Harness by
pushing in the connector’s locking tab,
then pulling the connector away from the
EGR housing. (See Figure 3)
3. Plug the “Spoofer” into the EGR Sen-
sor harness (See Figure 4).
4. Plug the Female connector into the
EGR housing connector (See Figure 4).
5. Use a zip tie to strap the EGR Sensor
Harness to the electrical conduit shown
in Figure 4.
NOTE: When using the EGR
“Spoofer” on the 2010-11 trucks, it is
normal for the following trouble codes to
be set:
-DTC P049D “EGR Control Position...”
-DTC P046C “EGR Position Sensor...”
These codes may be set, but the engine
light will not come on. It is ok to leave the
codes.
NOTE: If your truck’s calibration (see pg.
33 for instructions on how to get calibra-
tion) ends in BD on a 2010 or an AJ
on a 2011 then you may experience a
“service exhaust system message” while
using the EGR “Spoofer” with the Intake Throttle plate removed. This condi-
tion is typically experienced if the engine is at normal operating temperatures
and is allowed to idle for a couple of minutes. This message can be ignored
and will go away by itself on 2010 models and will go away on 2011 models if
the DTCs are cleared manually or with the clear codes on startup.
EGR Housing
Tab
EGR Sensor Harness
Figure 3 - Remove Harness
