NOTE: Most racing is done with modifi ed, free-fl owing exhaust systems and
disabled regeneration. When removing your DPF (Diesel Particulate Filter),
you will need to replace it with a “Delete Pipe” manufactured by an aftermar-
ket supplier such as Flow-Pro.
NOTE: Leave DPF pressure sensors vented to atmosphere.
If you have removed your stock DPF and disconnected the EGT sensor cables,
use the sensors included in your kit to replace them. (4) sensors are needed for
2010-2011 trucks and (3) are needed for 2007.5 - 2009 trucks.
NOTE: These new sensors will need to be removed and the sensor cables reat-
tached to the DPF when the DPF hardware is reinstalled.)
NOTE: When using the Race Juice with the DPF removed, the Clear Codes
On Startup option needs to be turned On in the Attitude diagnostics menu.
Refer to the CS/CTS User Manual for more information.
NOTE: When deleting the DPF it is normal for the following trouble code to
be set: DTC P244A - “DPF Differential Too Low” This code may be set, but
the engine light will not come on. It is ok to leave the code.

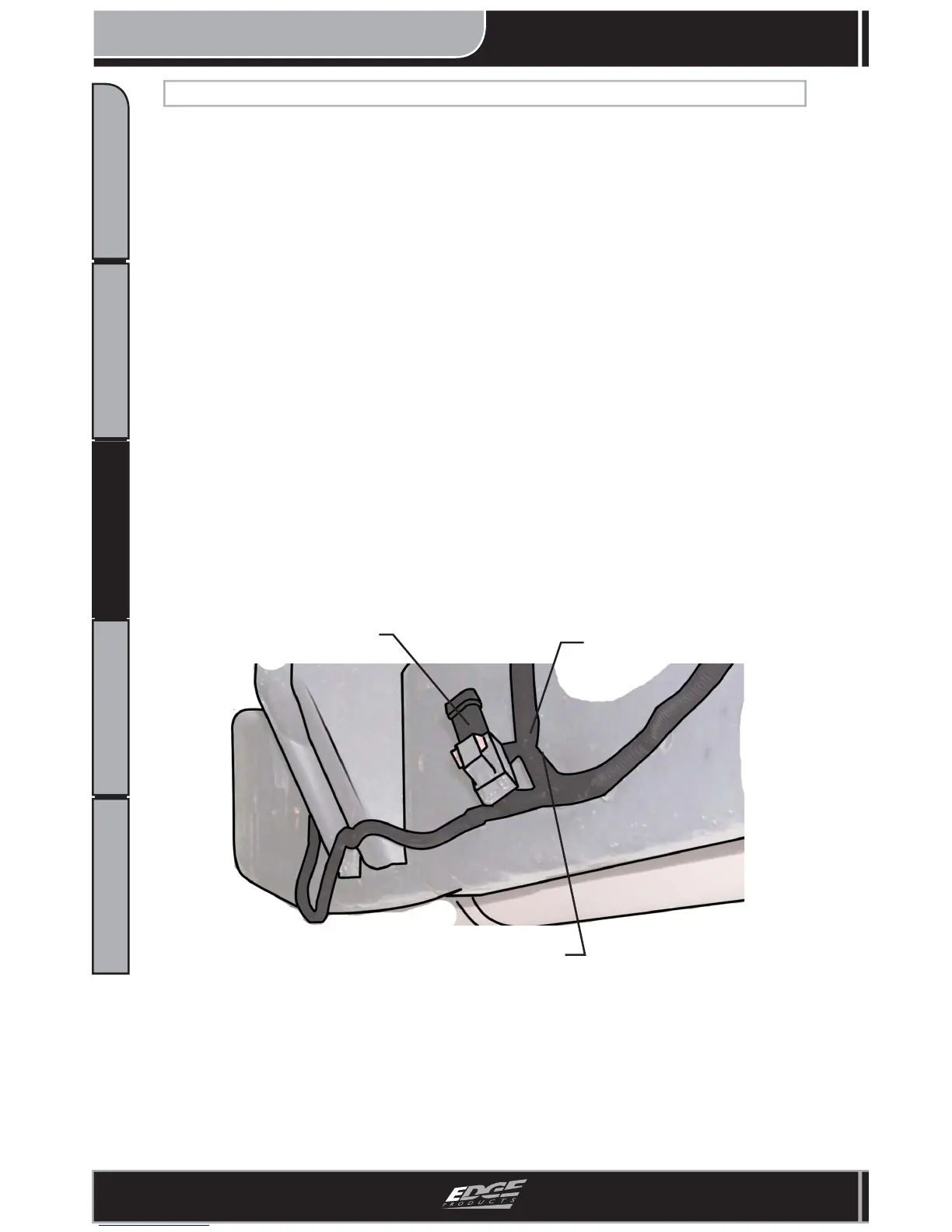

Figure 1 - DPF EGT Sensor Install Example
DPF EGT SENSOR INSTALLATION
Edge DPF EGT Sensor
Vehicle Harness
Vehicle DPF Connector (1 of 4 shown)
