Installation Instructions
Dodge Juice
7. Make sure that the probe cable
is positioned to allow best path and
minimal bending for routing to the
fi re wall.
6. Install the probe into the fi tting,
and tighten the top nut of the fi tting
just tight enough to keep the probe
fi rmly mounted. (Figure 2)

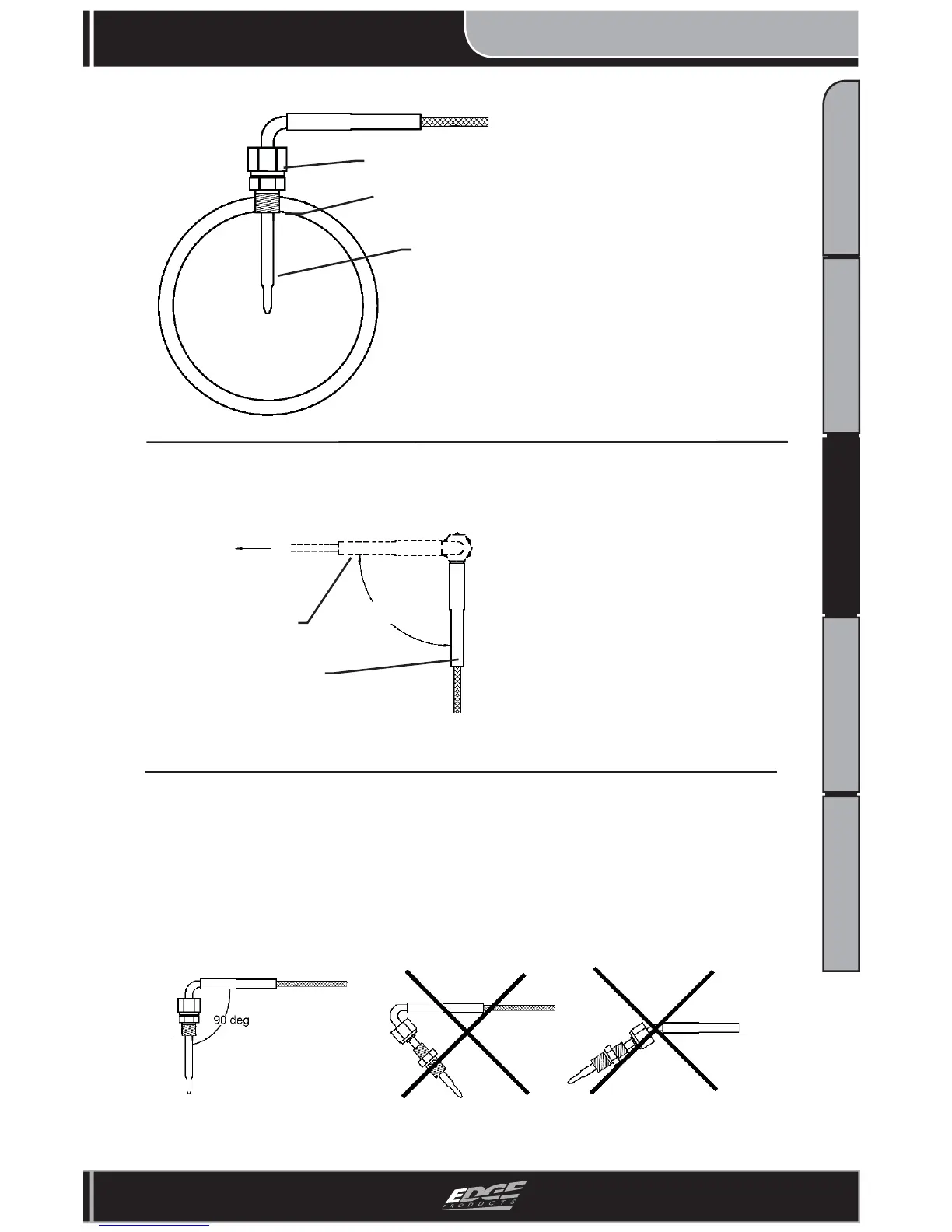

Figure 3 - 90 Degree
Starting Position
Tightened Position
90 Deg.
To Fire wall
Figure 2 - Probe Insertion
Fitting
Flush
Nut
Probe
NOTE: The probe will move ap-
proximately 90 Deg. clockwise in
the direction the nut is tightened.
Before fully tightening the nut,
make sure the cable starts 90
Degrees from the fi nal resting po-
sition. When tightened, the cable
will be correctly positioned.
CAUTION: Do not bend the probe after installed. If needed, loosen the
probe nut, adjust the probe, and re-tighten. Bending the probe tubing will
result in a faulty probe. (Figure 4)
Figure 4 - DO NOT BEND
Wrong
Correct
