6. Route the cable from below the dash
up to the lower left corner of the driver
side windshield. (Figure 4)

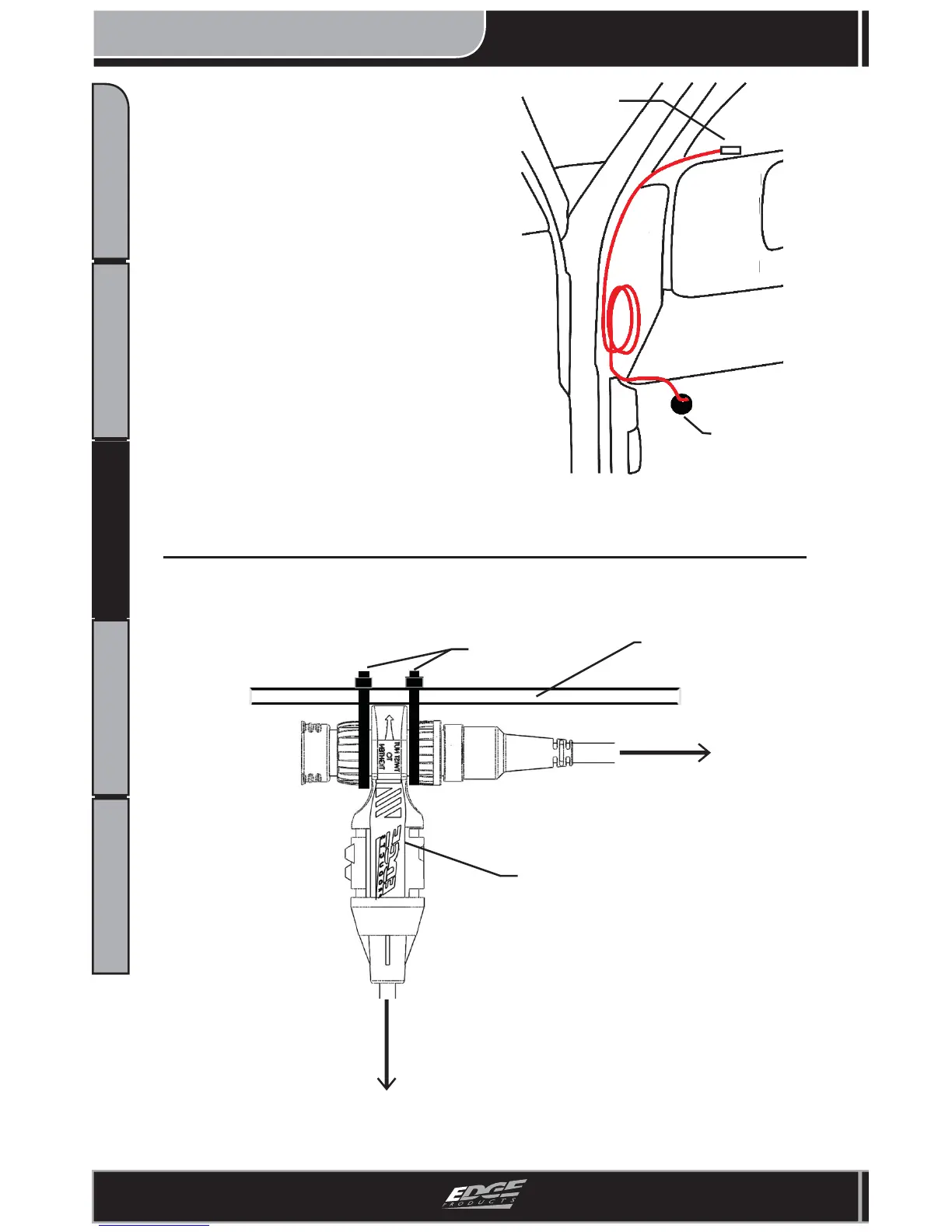

Figure 4 - In Cab Routing
Grommet
7. If needed, remove side panels to help
see while routing.
8. Leave enough length between the dash
and the end of the CS/CTS connector for
easy CS/CTS install.
NOTE: For a clean look, the cable can
be hidden behind the dash plastic and
the door frame weather strip.
CS/CTS
Connector
Figure 5 - Securing JAB (Looking from the front of the truck to back)
9. Using the supplied zip ties, fasten the
EAS connectors underneath the overhang
which runs across the top of the fi re wall.
(Figure 5)
10. Keep the JAB assembly close to the
driver side.
Zip Ties
Fire Wall
Overhang
JAB Assembly
To CS/CTS
To Juice
To Next Page
