4. INSTALLATION V-65E-A
4-2
4.3 Initial position
4.3.1 Distance between V-65E/LE-A and CNC-lathe
In order to use the automatic bar feeder in the best possible way you should see to
it that the distance between the CNC-lathe and the bar feeder is not too short!!
You may; however, load only bars whose length equals the spindle length of the
CNC- lathe. The bar stock has to be fed completely into the lathe spindle.
The bar feeder, however, must not be too far from the CNC-lathe.

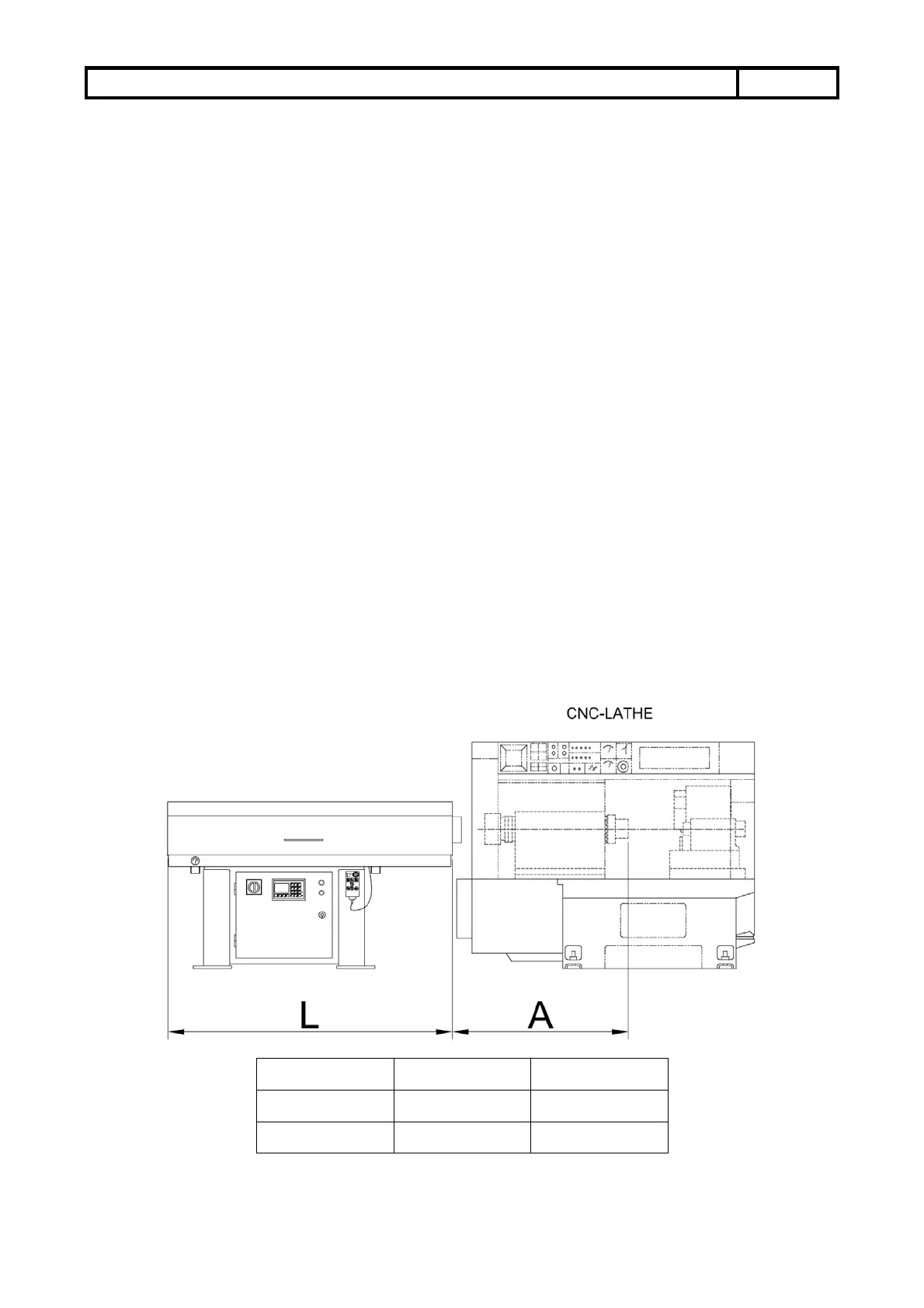

The Max distance between CNC-lathe and bar feeder can be seen from the
following drawing.
If 1250mm should not be enough, you have to install a V-65LE-A to replace
V-65E-A.
! IMPORTANT ! Be careful that – if several chucking devices are available-the max.
Distance will never be exceeded.
L A
V-65E-A 1600mm Max.1250mm
V-65LE-A 1900mm Max.1550mm
