5. ADJUSTMENT AND SETTING V-65E-A
5-2
 
5.2 Adjustment and selection of the bar feeder

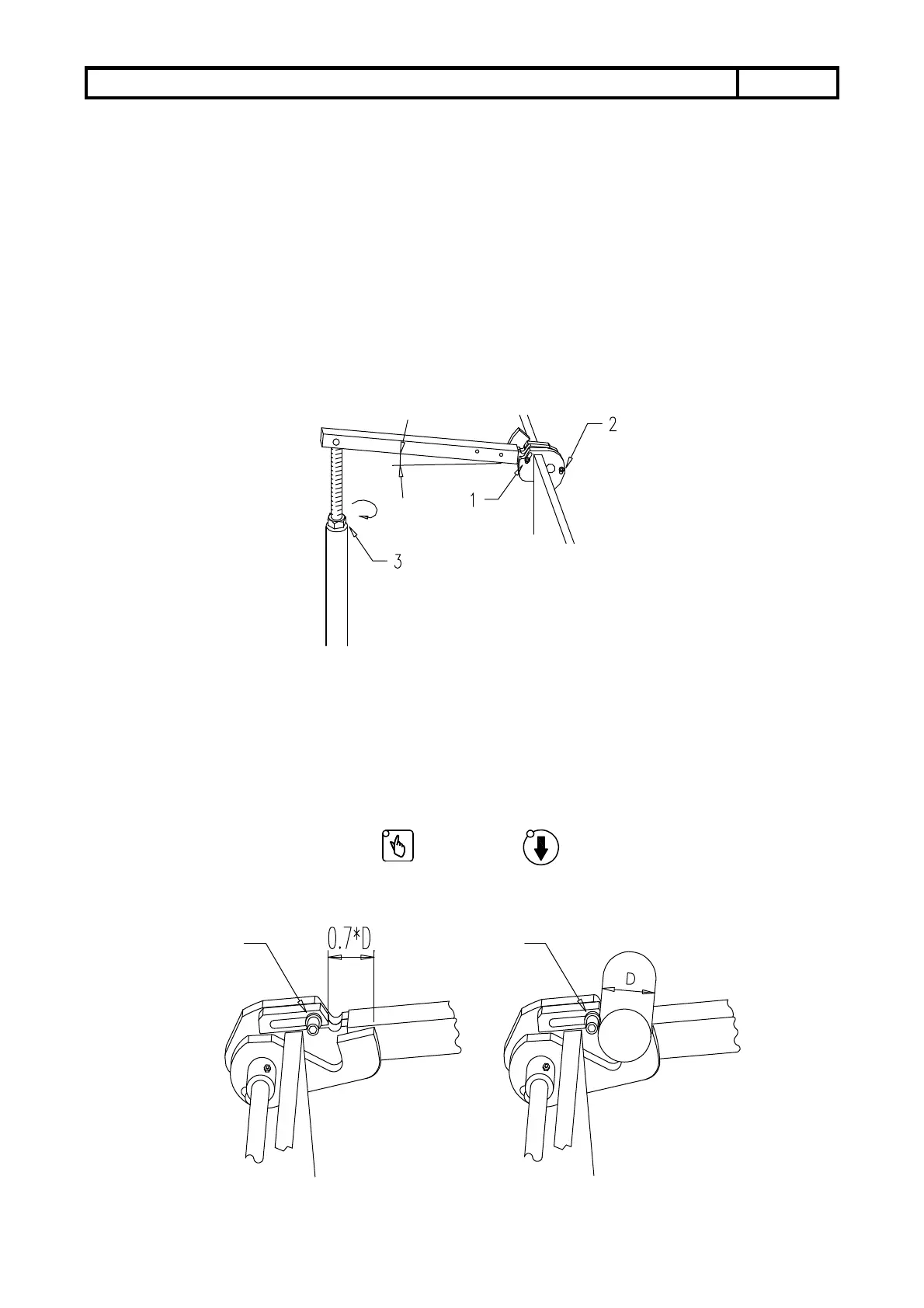

5.2.1 Adjustment of lever system
5.2.1.1 The inclination of the feeding frame depends on the kind of bar stock used：
round bar stock：α about 5˚ ~ 8˚ hexagonal bar stock：α about 20˚ Disengage
screw ( 1 ) and ( 2 ).
5.2.1.2 Adjust screw ( 3 ) to suitableαangle. The material can smooth to fall down.
5.2.1.3 Tighten screws ( 1 ) and ( 2 ).
5.3 Adjustment of bar stop
5.3.1 Disengage screws I each.
5.3.2 Adjust bar stop so that only I bar is loaded.
5.3.3 Tighten screws I.
5.3.4 Switch into manual mode , and go to position.
−
