4. INSTALLATION V-65E-A
4-4

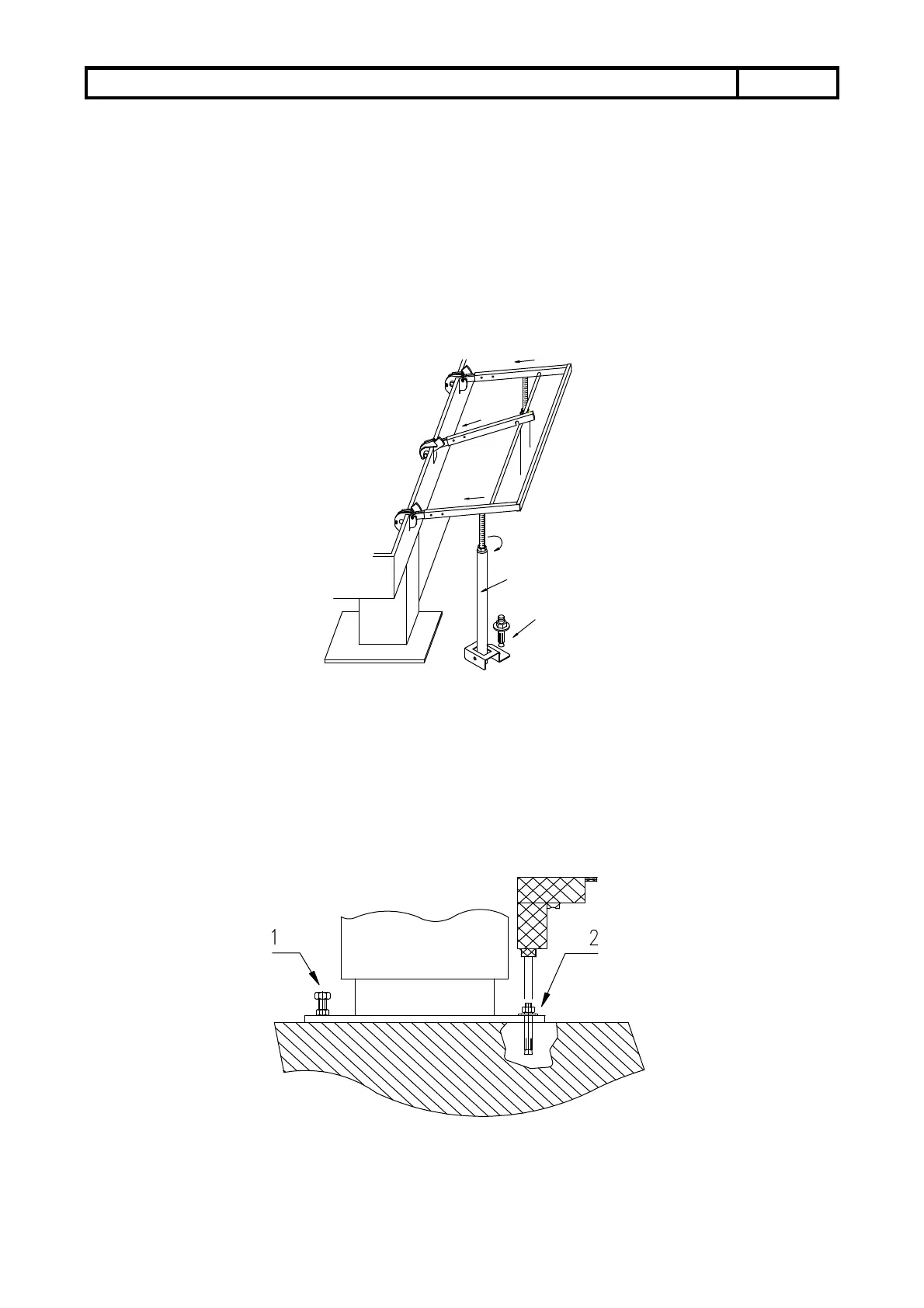

4.5 Mounting of the feeder frame
4.5.1 First, put the lever into support tube（1）.
4.5.2 The support profile fixed with the extension（2）and fastened in the suitable height
with screw（3）.
4.5.3 Then the middle support profile fixed with the extension（4）.
4.5.4 Finally securing with the screw（5）.
4.6 Securing and fastening of the bar feeder
4.6.1 Rotate 4 ground-screws（1）to touch the ground, and fix the nuts.
4.6.2 Drill ground（2）with drill bit Ø19mm（¾”）, and fix the spindle-screw.
5
1
3
4
2
2
