Edge Technologies V-65 Series - 2.4 Air Supply and Power Requirements

2. DATA OF TECHNIQUE V-65E-A
2-3
2.4 Compressed air supply and power supply
2.4.1 Compressed air pipe minimum Ø 8mm. Minimum pressure 6 kg/cm
2
. Compressed
air consumption about 50L/H.

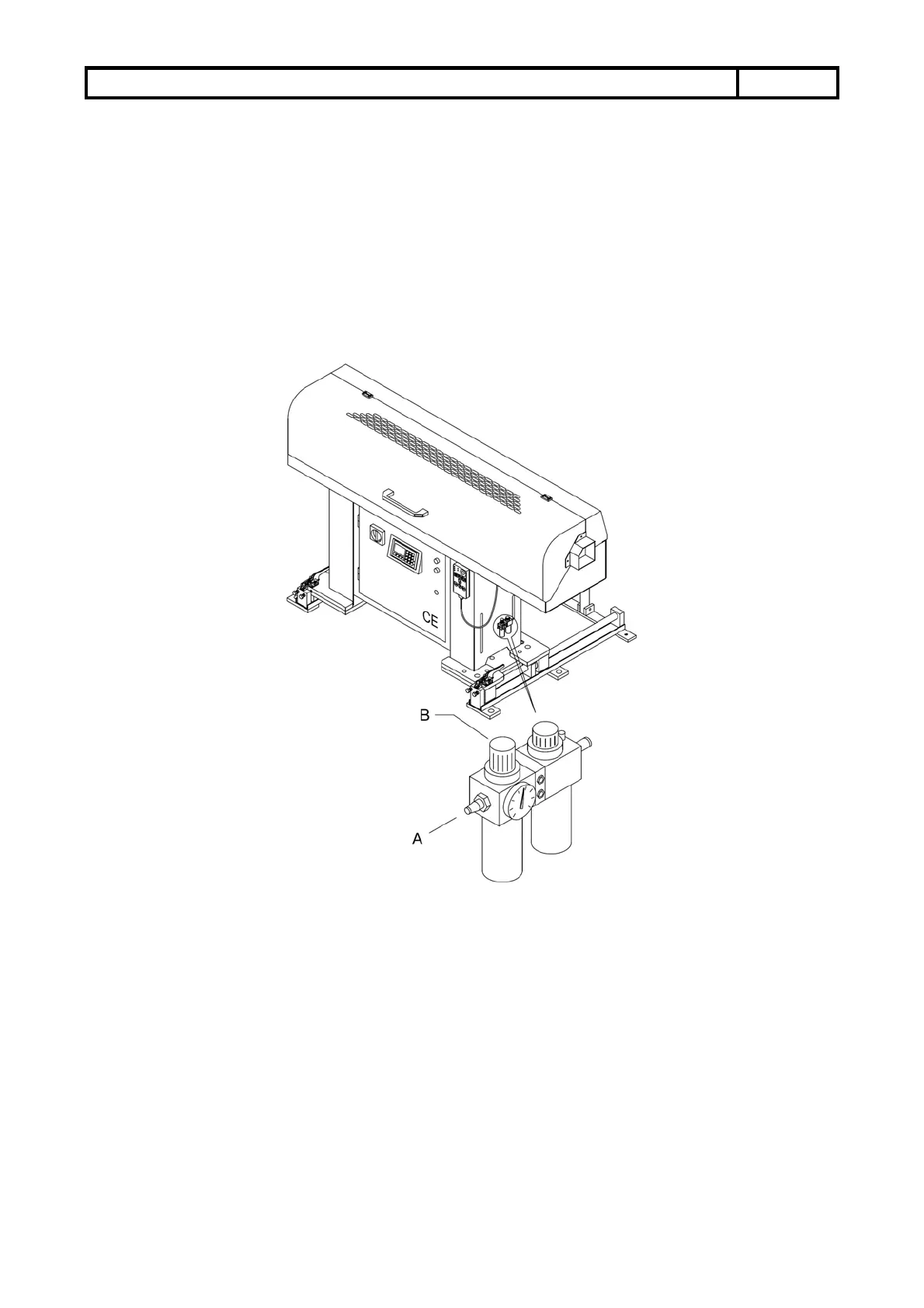

2.4.2 Put the air supply tube into (A). Then pull and turn around the knob (B) and set the
pressure at 6kg/cm
2
.
2.4.3 Power supply 220V/380V，50/60Hz.
