5. ADJUSTMENT AND SETTING V-65E-A
5-3
1
2
3

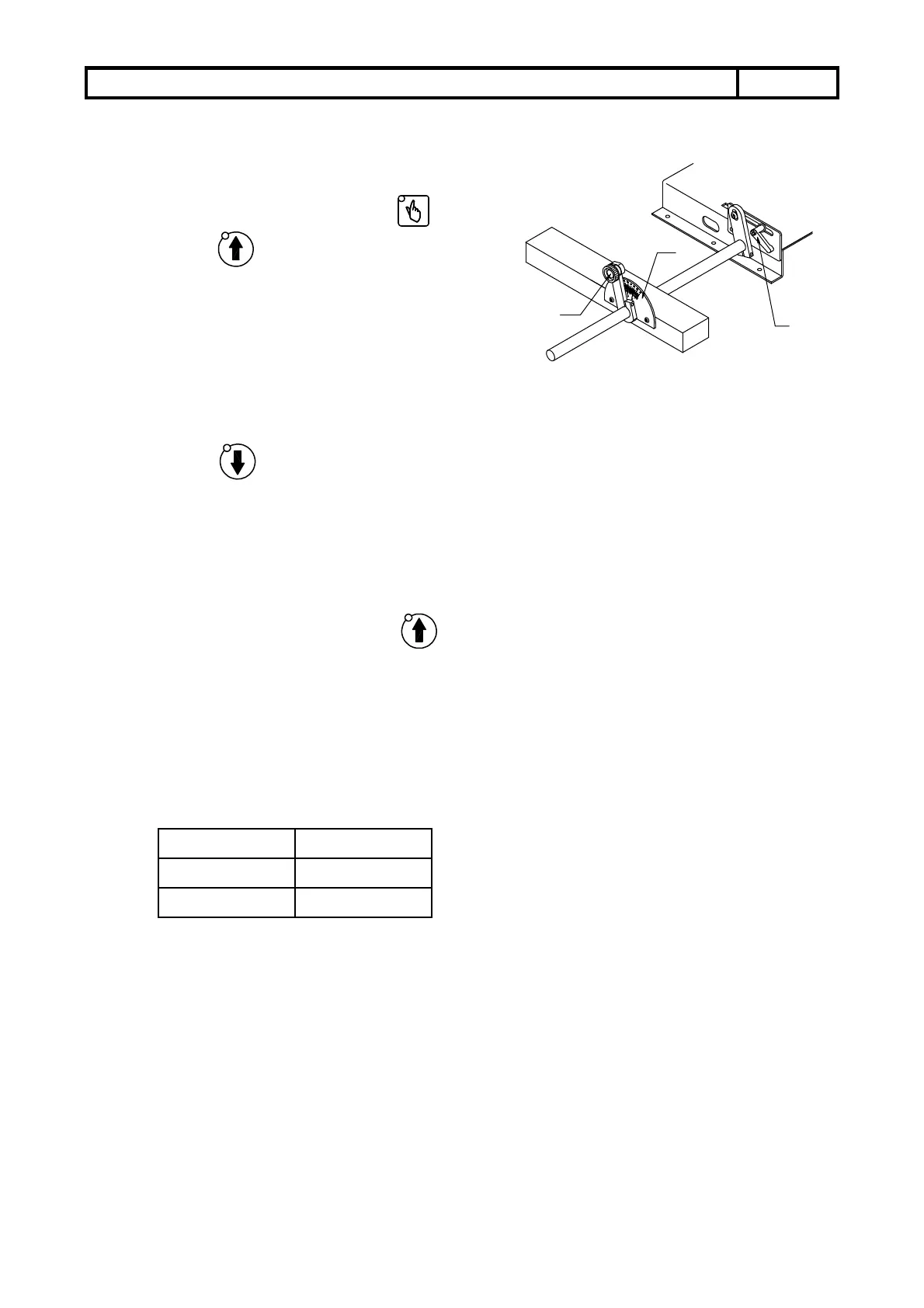

5.4 Adjustment of bar diameter
5.4.1 Turn to the manual position , and
press until it is lighted.
5.4.2 Swing the handle ( 2 ) to adjust the
graduation as same as the diameter of
bar on a graduated meter ( 3 ).
5.4.3 Screw tightly the fixing-handle ( 1 ) on both sides.
5.4.4 Press until it is lighted, put a piece of material in V-type vessel.
5.4.5 Try to push forward the material into the spindle, and check the condition of
adjustment.
※ Follow the step of 5.4.1, you may adjust again if any.
5.4.6 Move out the material, press until it is lighted, the adjustment is completed.
5.5 Adjustment of push bar pressure:
According to chart at the pneumatic unit.
Recommended values:
to ø10mm
3 kg/cm
2
ø10-30mm
3-4 kg/cm
2
from ø30mm
4-6 kg/cm
2
