6. OPERATIONS AND ILLUSTRATIONS V-65E-A
6-4
6.2.2 The function and operation of keys

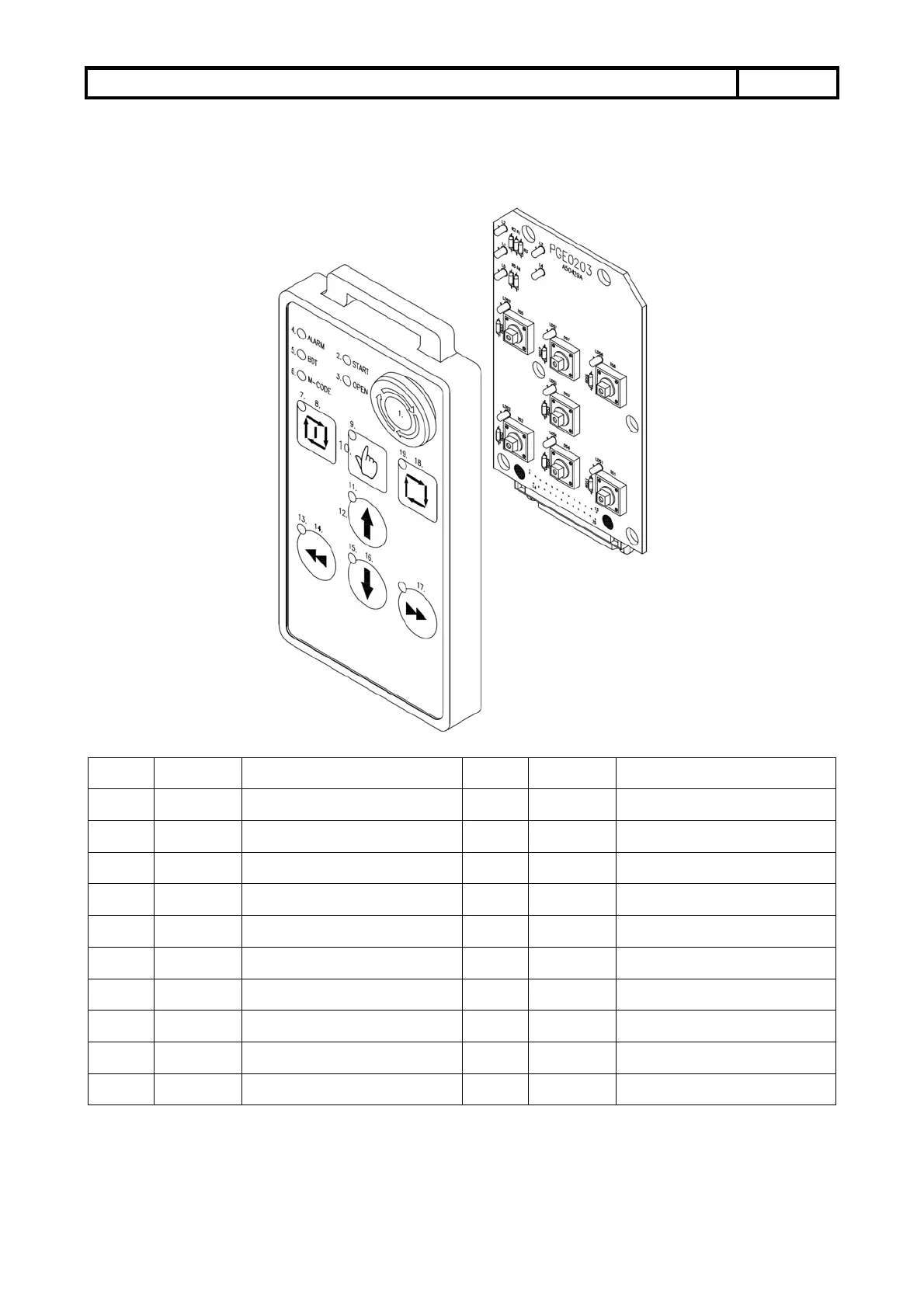

6.2.2.1 Description of button and indication light
NO. Code Function NO. Code Function
1 ES1 Emergency stop 11 LDS3 Clamping in light
2 L3 Start light 12 DS3 Manual clamping in/out
3 L4 Chuck open light 13 LDS2 +Z light(left)
4 L2 Alarm light 14 DS2 -Z Key
5 L1 Bar end light 15 LDS4 Shift light
6 L5 M-Code light 16 DS4 Shift keying
7 LDS5 Automatic start light 17 DS1 +Z Key
8 DS5 Automatic start 18 DS6 Automatic mode
9 LDS7 Manual mode light 19 LDS6 Automatic mode light
10 DS7 Manual mode
