6. OPERATIONS AND ILLUSTRATIONS V-65E-A
6-24

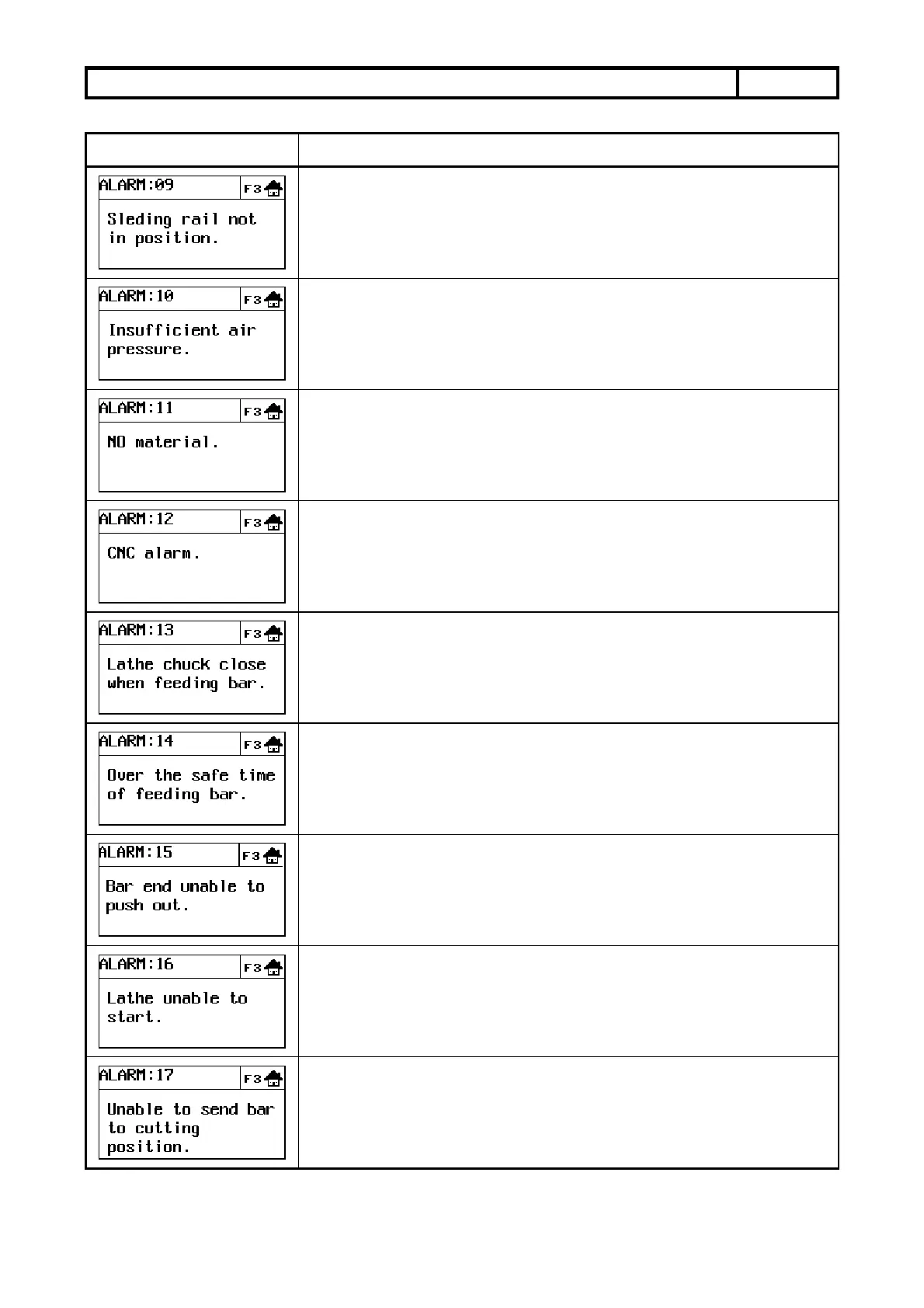

ERROR / CAUSE CURE
※ Please refer to electrical diagram (P.01) , LS5 is operative
while SS1 is opened.
※ Please push the bar feeder to correct position of working.
※ Check the pressure
of the compressed air.
※ Please refer to electrical diagram (P.02), check AS1
whether
breakdown.
※ Please check whether have any material on the bar feeder or
in the spindle.
※ Before machining, please solve the alarm of CNC.
※ Please ch
eck the start signal sent from the bar feeder whether
correct of CNC’s sub-program.
※ Please check whether the bar feeder feeding smoothly。
※ Please check whether the new material is lodged out of the
spindle.
※ When the program of the CNC runs to sub-program, check
whether the return stroke of axis Z is enough to push out
remnant.
※ Check whether the value of “Remnant push out” is correct,
Setting method refer to( page6-17)
※ Please check whether the interface signal code R5 Relay
has motion.
※ Check whether the lathe receive the signal from R5 Relay.
※ Please check the setting of facing position. Please refer to
(page 6-16 )
