EdgeStar AP14009COM-1 - Duct Connector Installation; Connecting Duct Connectors

9

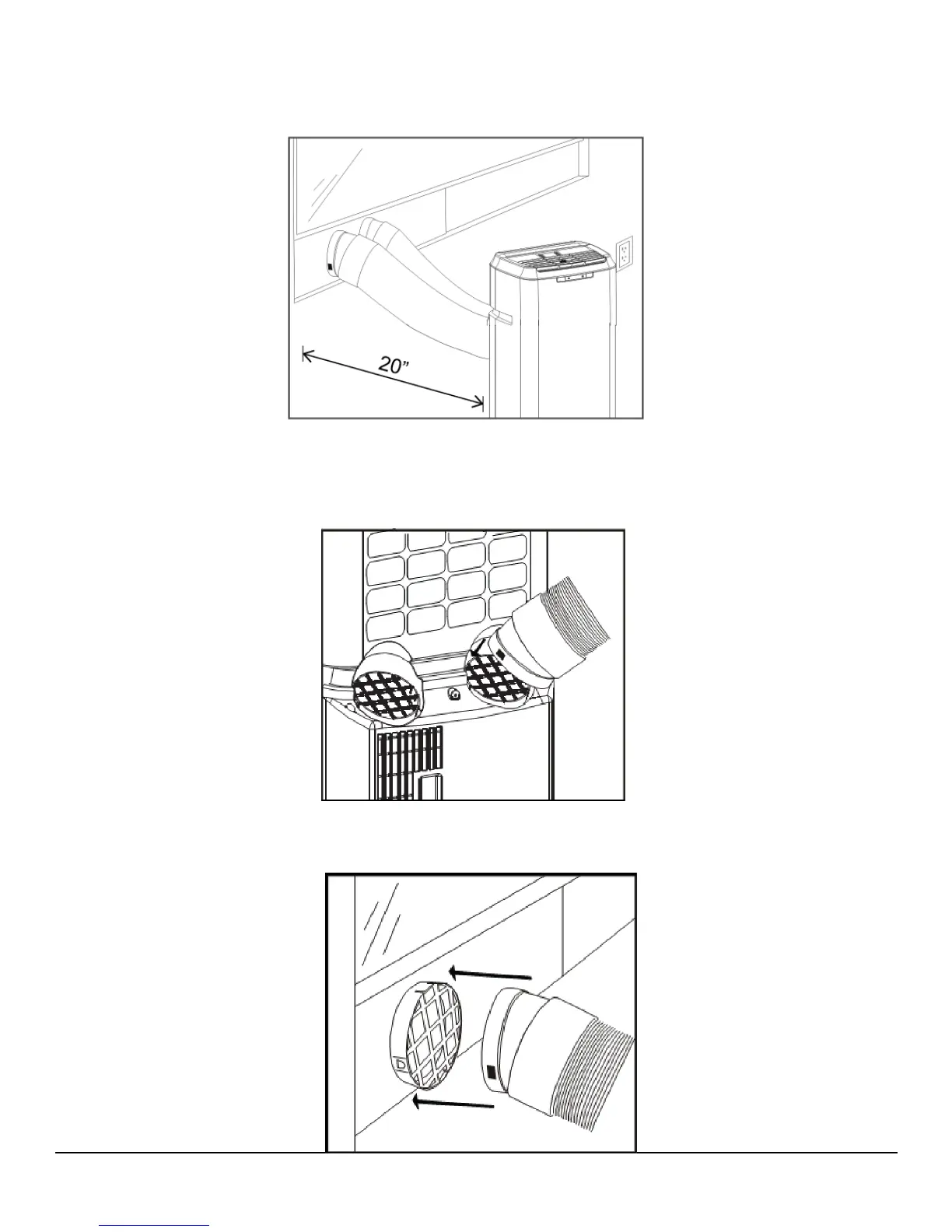

6. Roll the unit towards the window kit. Leave at least 20 inches between the unit and the wall.
Connecting the Duct Connector to the Unit
7. Align the slots on the duct connector to the tabs on the unit and snap the duct connector into
the back of the unit.
Connecting the Duct Connector to the Grated Adapter
8. Align the slots on the duct connector to the tabs on the grated adapter and snap the duct
connector into place.
