EdgeStar AP8000W User Manual

7

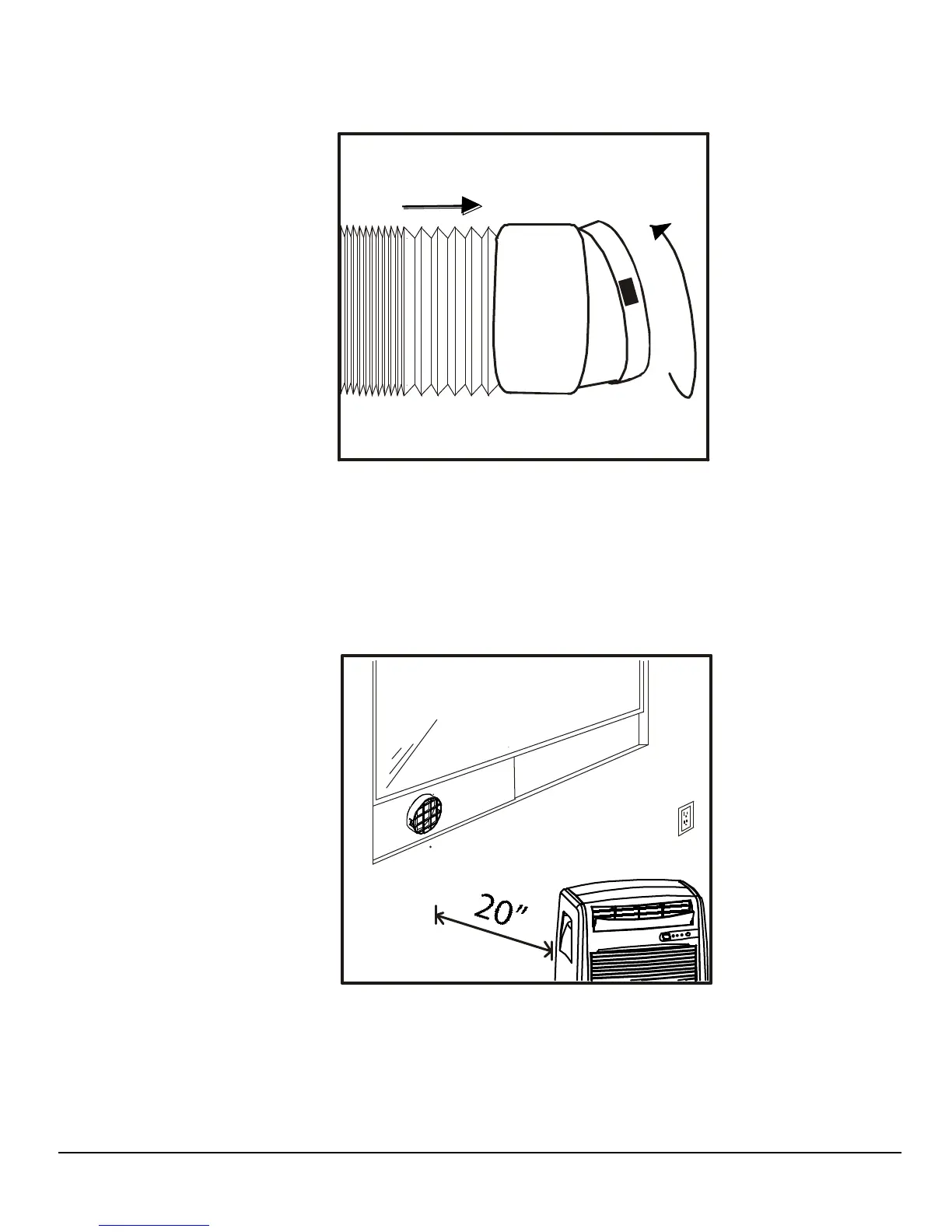

Attaching the duct
connectors to the exhaust
hose
A.
B.
5. Attach the connectors to the hose:
A. Extend the ends of the exhaust hose
B. Thread the duct connector on by turning it clockwise until it
stops.
6. Roll the unit towards the window kit. Leave a space that is at
least 20 inches to the wall.



EdgeStar AP8000W Specifications

General

Description of product	Portable Air Conditioner
Model	AP8000W
Color	White
Voltage/Frequency	AC 115V~60Hz
Input Power	840W
Current	7.9A
Dehumidifying capacity	71 Pints/Day
Timer	24 Hour
Coolant	R-410A

Weight and Dimensions

Dimensions WxHxD	19 1/4” 24 3/4” x13 1/4”
Weight	56 lbs
