Portable Air Conditioner 8

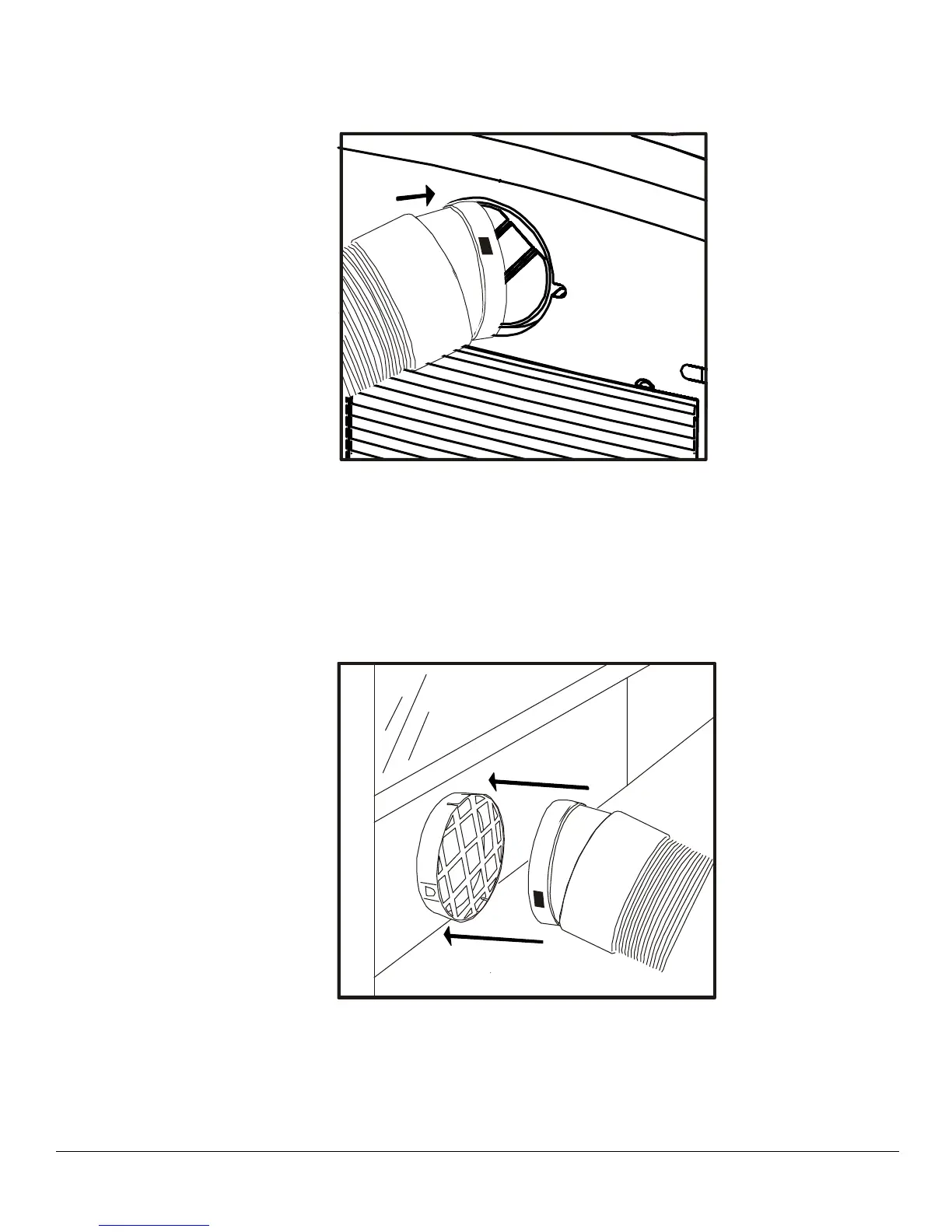

Connecting the duct
connector to the unit
Connecting the duct
connector to the grated
adapter
7. Align the slots on the duct connector to the tabs and snap into
the back of the unit.
8. Align the slots on the duct connector to the tabs on the grated
adapter and snap in place.

