SB-424, SB-216S and SB-512i Tow Vehicles 2-3
2.1.3 Power Amplifier
The specifications for the Power Amplifier are shown in Table 2-3.
2.2 SB-424, SB-216S and SB-512i Tow Vehicles
The general specifications for the SB-424, SB-216S and SB-512i Tow Vehicles are shown
in Table 2-4.
Table 2-3:
Power Amplifier Specifications
Number of channels: 2
Gain: 33 dB/channel
Output power: 2000 W peak
Input voltage: 120–220 VAC, 50/60 Hz, manually selectable

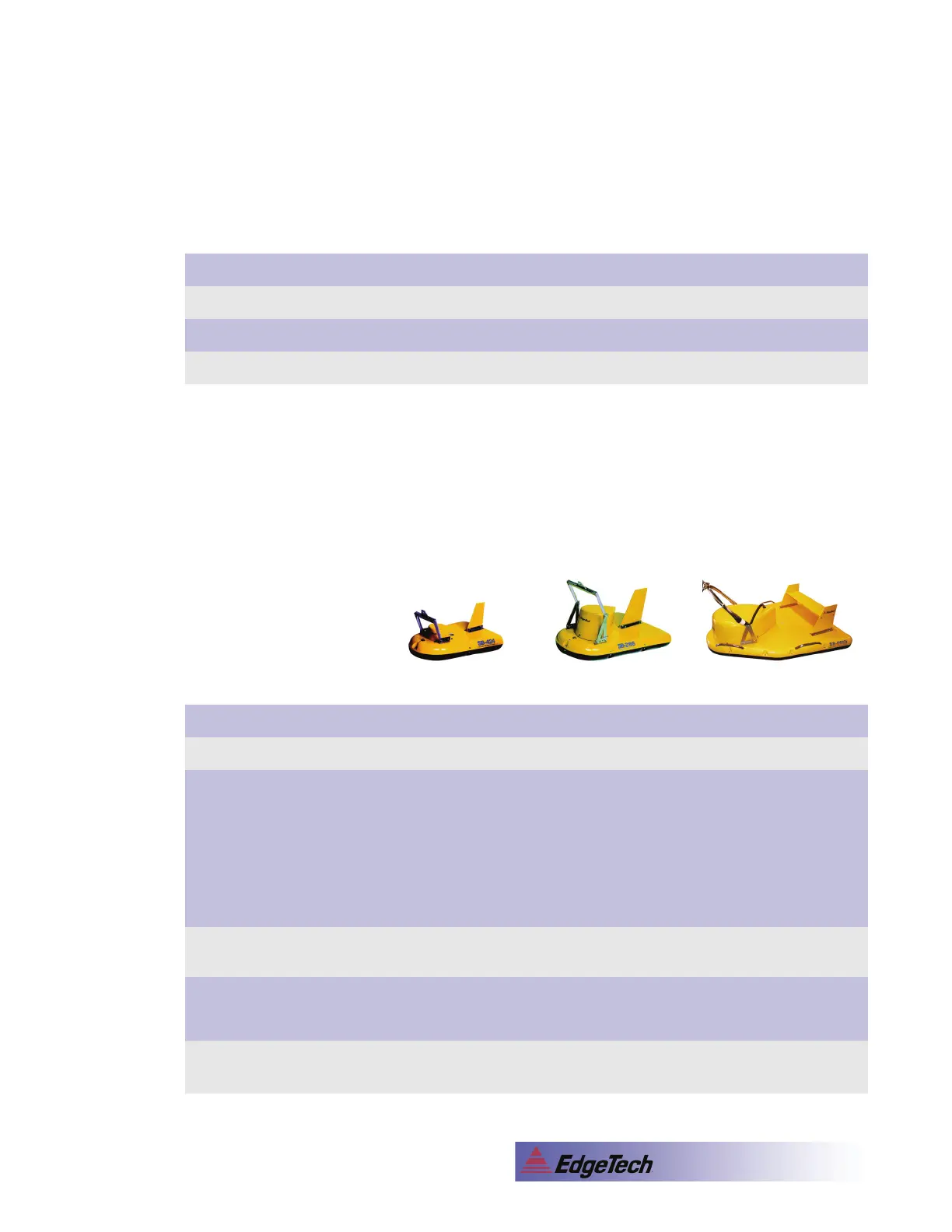

Table 2-4: Tow Vehicle Specifications
SB-424
SB-216S
SB-512i
Frequency range: 4–24 kHz 2–16 kHz 0.5–12 kHz
Pulse type: FM FM FM & WB (wide band)
Pulse bandwidth/pulse
length:
4-24 kHz/10 ms
4–20 kHz/10 ms
4–16 kHz/10 ms
2-15 kHz/20 ms
2–12 kHz/20 ms
2–10 kHz/20 ms
0.5–8.0 kHz/5 ms FM
0.5–2.7 kHz/40 ms WB
0.5–6.0 kHz/20 ms WB
0.5–4.5 kHz/50 ms FM
0.5–6.0 kHz/9 ms FM
0.5–6.0 kHz/18 ms FM
0.5–7.2 kHz/30 ms FM
0.7–12.0 kHz/20 ms FM
2.0–12.0 kHz/20 ms FM
Calibration: Gaussian shaped
pulse spectrum
Gaussian shaped
pulse spectrum
Gaussian and rectangular
shaped pulse spectrum
Vertical resolution:
a
4 cm (4–24 kHz)
6 cm (4–20 kHz)
8 cm (4–16 kHz)
6 cm (2–15 kHz)
8 cm (2–12 kHz)
10 cm (2–10 kHz)
19 cm (1–5.0 kHz)
12 cm (1.5–7.5 kHz)
8 cm (2–12 kHz)
Penetration in coarse and
calcareous sand:
b
2 m (typ) 6 m (typ) 30 m (typ)
