Connector Pinouts 4-11
4.5 Connector Pinouts
Pinout information is provided for the SEA CABLE connector on the back of the Deck Unit
in Figure 4-8 and Table 4-2, and the tow vehicle tow cable connector in Figure 4-8 and
Table 4-3.

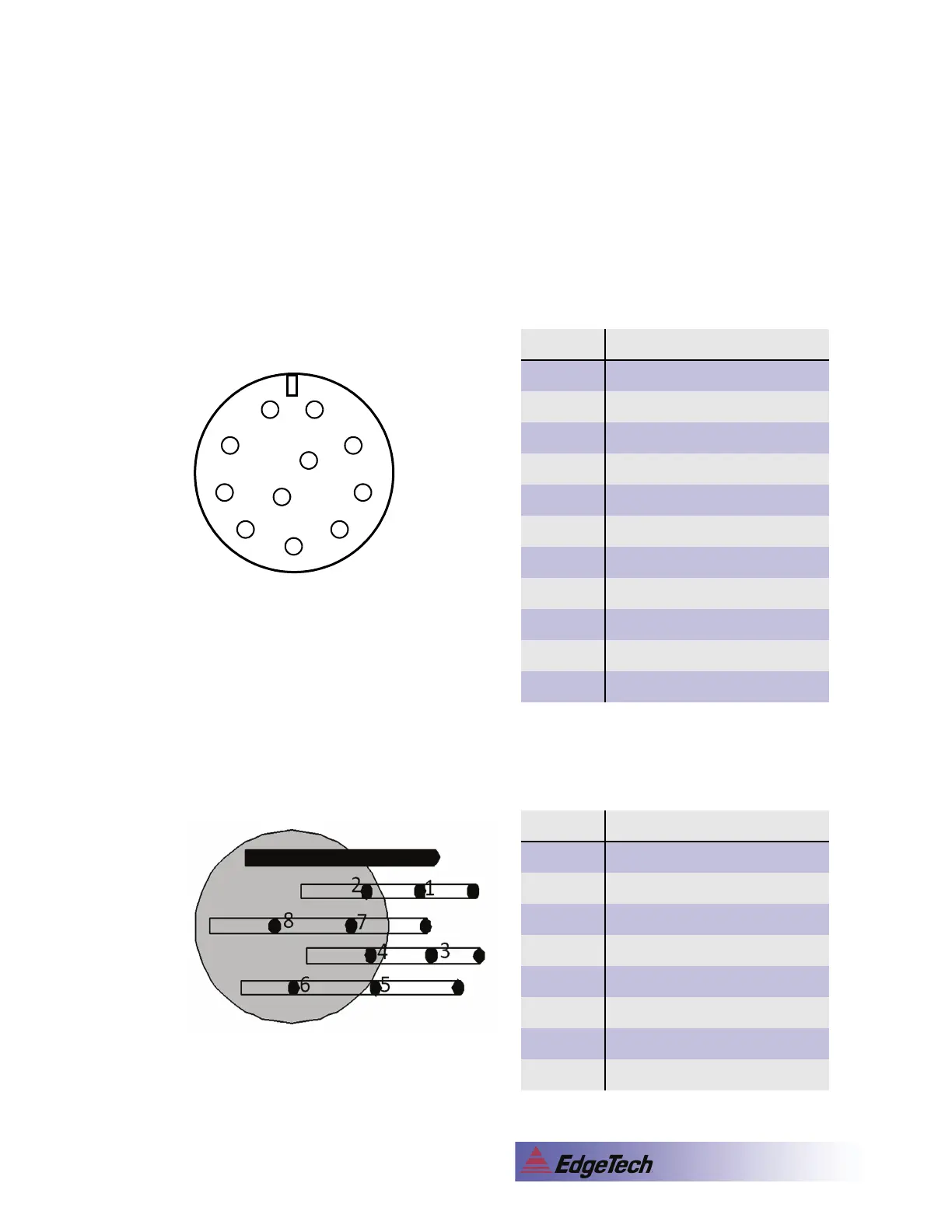

Figure 4-8: SEA CABLE
Connector—Female, Face
View
A
B
C
D
E
F
H
J
K
M
L
Table 4-2: SEA CABLE Connector
Pinouts
PIN FUNCTION
A Transmitter output shield
B +12 VDC
C Sea ground
D NC
E Transmitter out 1
F NC
H Transmitter out 2
J Preamplifier output
K Preamplifier common
L NC
M NC
Figure 4-9: Tow Vehicle Tow Cable
Connector—Male, Face View
Table 4-3: Tow Vehicle Tow Cable
Connector Pinouts
PIN FUNCTION
1 Transmitter out 1
2 Transmitter out 2
3 Preamplifier common
4 Preamplifier output
5 NC
6 +12 VDC
7 Sea ground
8 NC
