GENERAL INFORMATION
SERIAL PORT
The Dealer can install an optional on the AUX outlet for controlling the process of
switching on and off (e.g. telephone remote, local thermostat), located at the rear of the
stove. This can be connected via special optional trestle (code 640560).
BACKUP BATTERY
A backup battery is found on the control board (3-Volt CR 2032 battery). Its malfunction
is indicated with the following messages (not considered a defect but due to normal
wear-and-tear): “Battery check”. For more detailed information, please contact the DEA-
LER who performed the fi rst 1st ignition.
• ELECTRONIC CIRCUIT BOARD
• ELECTRONIC EQUIPMENT
LEONARDO
®
is a combustion safety and control system which allows optimal perfor-
mance in all conditions thanks to two sensors measuring the pressure level in the combu-
stion chamber and smoke temperature.
The detection of and subsequent optimisation of these two parameters is continuous in
order to correct operation anomalies in real time.
The LEONARDO
®
system offers constant combustion, automatically regulating the draft
based on the characteristics of the chimney fl ue (bends, length, shape, diameter, etc.)
and environmental conditions (wind, humidity, atmospheric pressure, installations at high
altitude, etc.).
The standards for installation must be respected.
The LEONARDO
®
system is also able to recognise the type of pellets and automatically
adjust the fl ow moment by moment to ensure the required level of combustion.
+

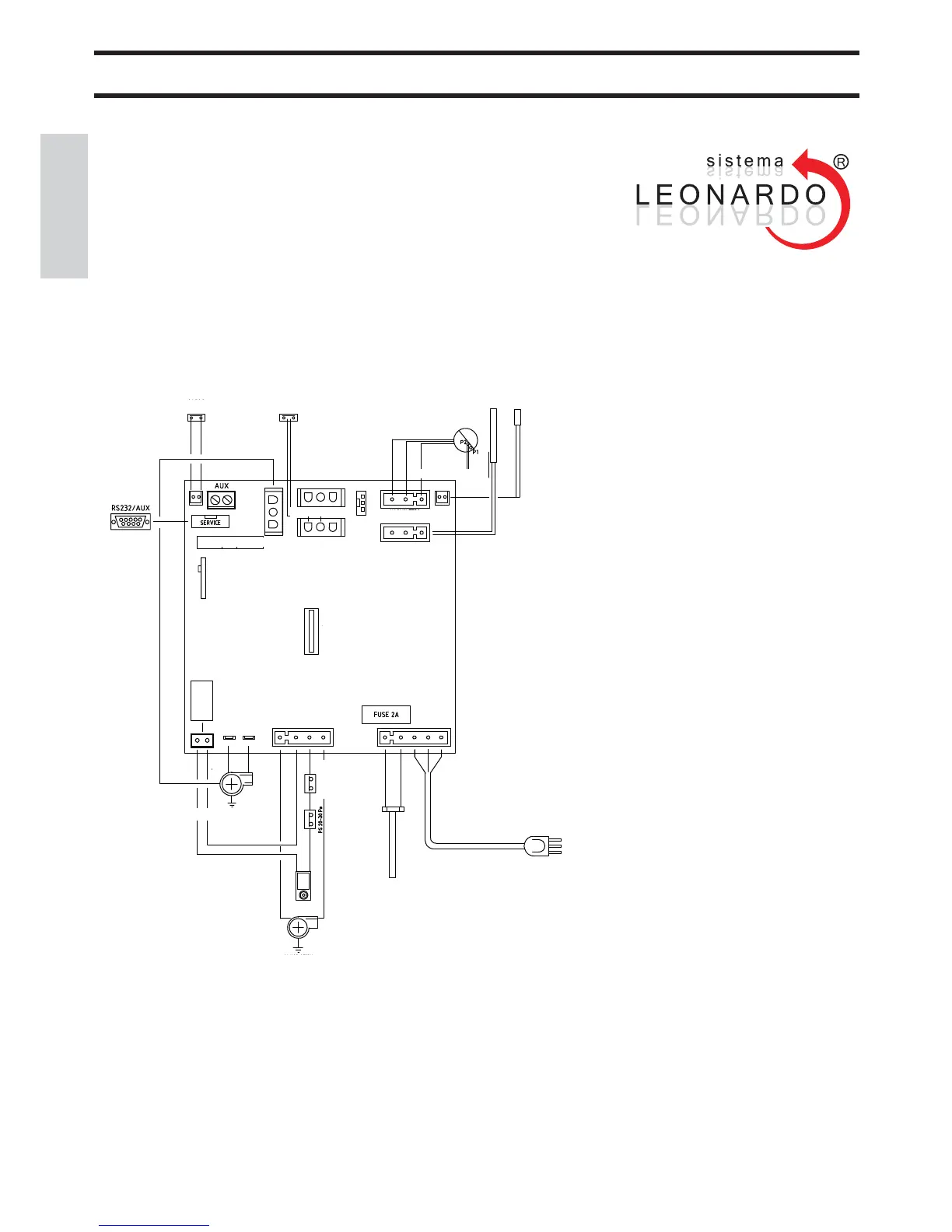

smoke rpm
Vacuum gauge
Reading points
Lithium
CR2032
backup
battery
ventilation ambient
Control panel
SCREW
TM 120°C
Tank
Smoke-expulsion motor
AMBIENT-AIR SENSOR
Vacuum gauge
RPM ambient
remote-control
device
RES safety
tank
micro-port
Emergency button
thermocouple
thermocouple
ingnition element
230 vac power
supply
50hz +/-10%
RPM Hot air
channel
