COVERING INSTALLATION
Ŏ g. 1
A
B
C
Fig. 1

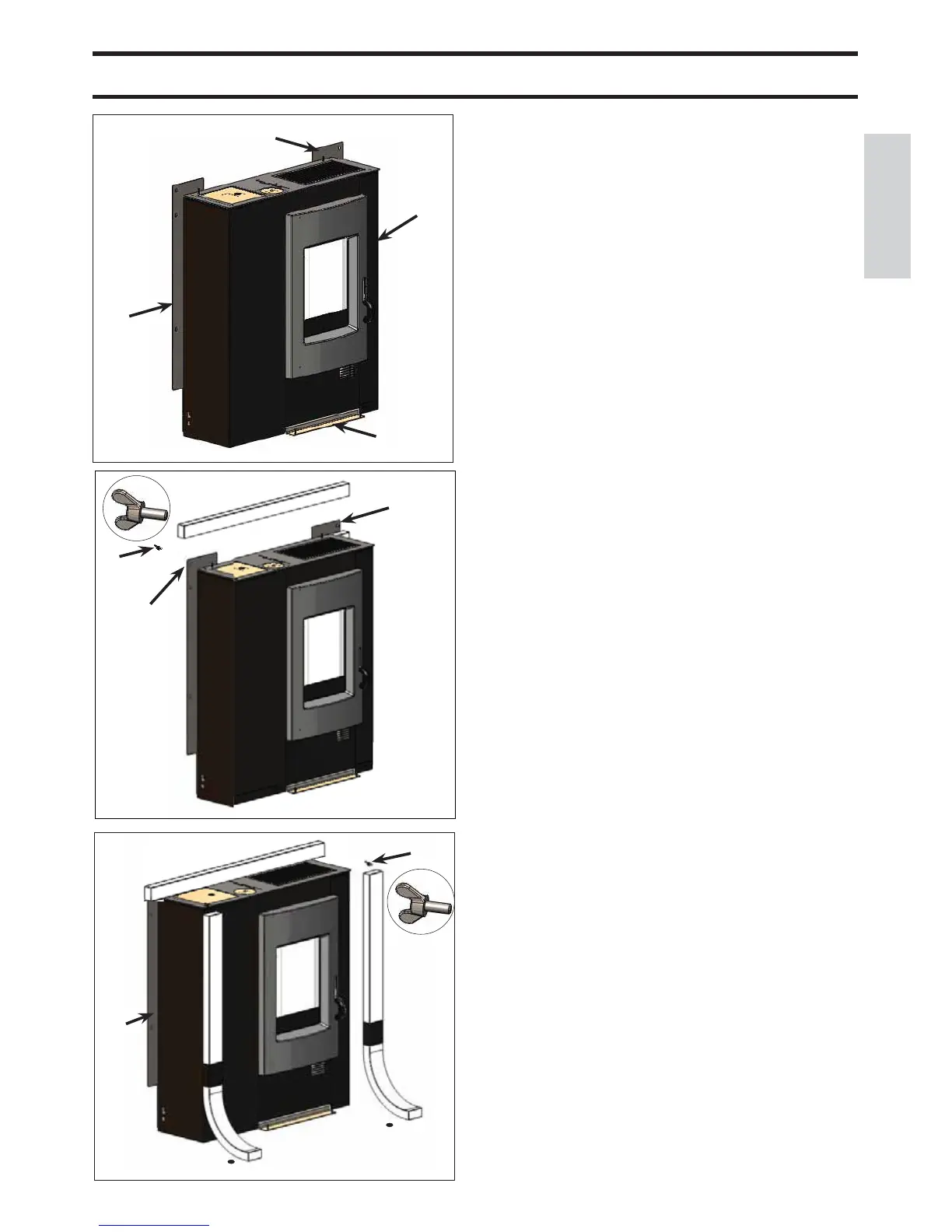

The stove is delivered (Fig. 1) with the metal sides (A-B) and
the metal brackets (C-D) for fastening the horizontal marble
elements already mounted.
The pieces indicated below are packaged separately.
• 2 marble side pieces (E - fi g. 2)
• n° 1 upper horizontal marble element (F - fi g. 3)
• n° 1 1 lower horizontal marble element (G - fi g. 4)
• 6 M6 winged screws (X)
• n° 12 washers (Y)
• 4 rubber pads (Z)
To fi t proceed as follows:
Fig. 2
Assemble the slotted-in upper marble horizontal element (F)
resting on the metal brackets (C).Fasten the upper marble hori-
zontal element (F) to the metal brackets (C) using the washers
and M6 winged screws (X and Y).
Fig. 3
Apply the rubber pads (Z) provided, under the marble side
elements (E).Assemble the two marble side element (E) on the
metal brackets (C) using the washers and M6 winged screws (X
and Y).
C
D
Ŏ g. 2
Ŏ g. 3
E
E
C
X/Y
Z
Z
F
C
C
X/Y
