INSTALLATION
SMOKE OUTPUT
DAME is designed for the connection of the smoke output pipe
at the back and from the top.
The stove is delivered ready for the output of the fl ue from the
back (Fig. 1).

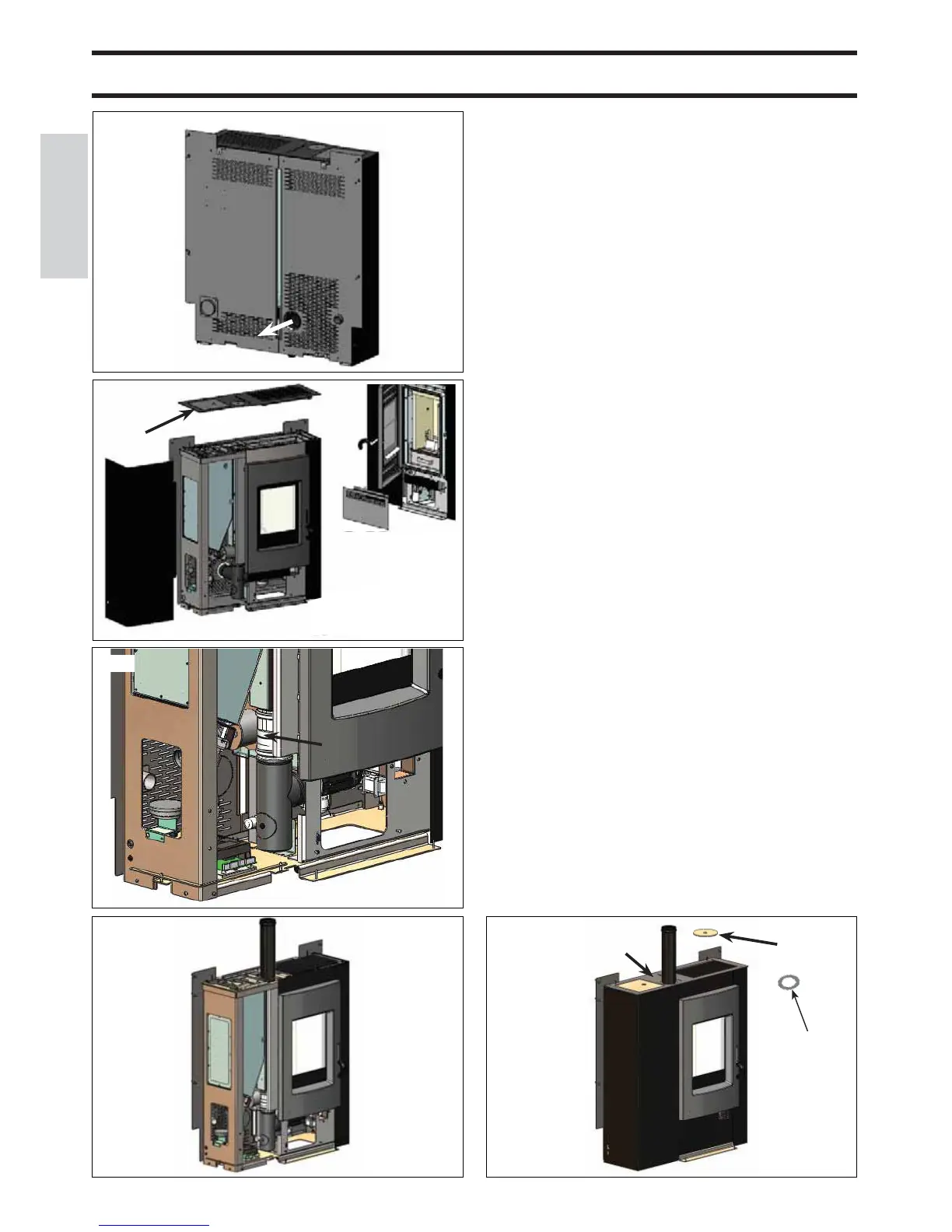

SMOKE OUTPUT CONNECTION ON THE LEFT SIDE
NOTE: CONNECT BEFORE ASSEMBLING THE COVE-
RING AND USE THE OPTIONAL VERTICAL SMOKE-
OUTPUT KIT.
Fig. 2
• Remove the sheet-metal top (B - lift off) complete with hot-
air output grill, and the left metal side (A) by means of screws.
• Open the door and remove the lower metal panel (C) using
screws.
• Remove the elbow joint (F - provided) from smoke extractor
unit vent. undoing the band.
Fig. 3-4
• Install the vertical output pipe (G) with the band provided on
the smoke extractor unit vent.
Note: at the base of the vertical output pipe (G), there is an
inspection cover for cleaning.
• Fit the double-female adapter (H - optional) to the vertical ou-
tput pipe (G) and connect the fi rst section of the smoke output
pipe (T - not provided) to the adapter (H) referred to above.
Fig. 5
• Replace the sheet-metal top (B), remove the closing cap (L)
and use the compensation ring (U).
• Replace the left metal side (A) and the lower metal panel
below the door (C).Continue with the assembly of the covering
as shown in the preceding pages.
Ŏ g. 1
Ŏ g. 2
Ŏ g. 3
Ŏ g. 5Ŏ g. 4
B
A
F
G
H
T B
C
A
L
C
U
