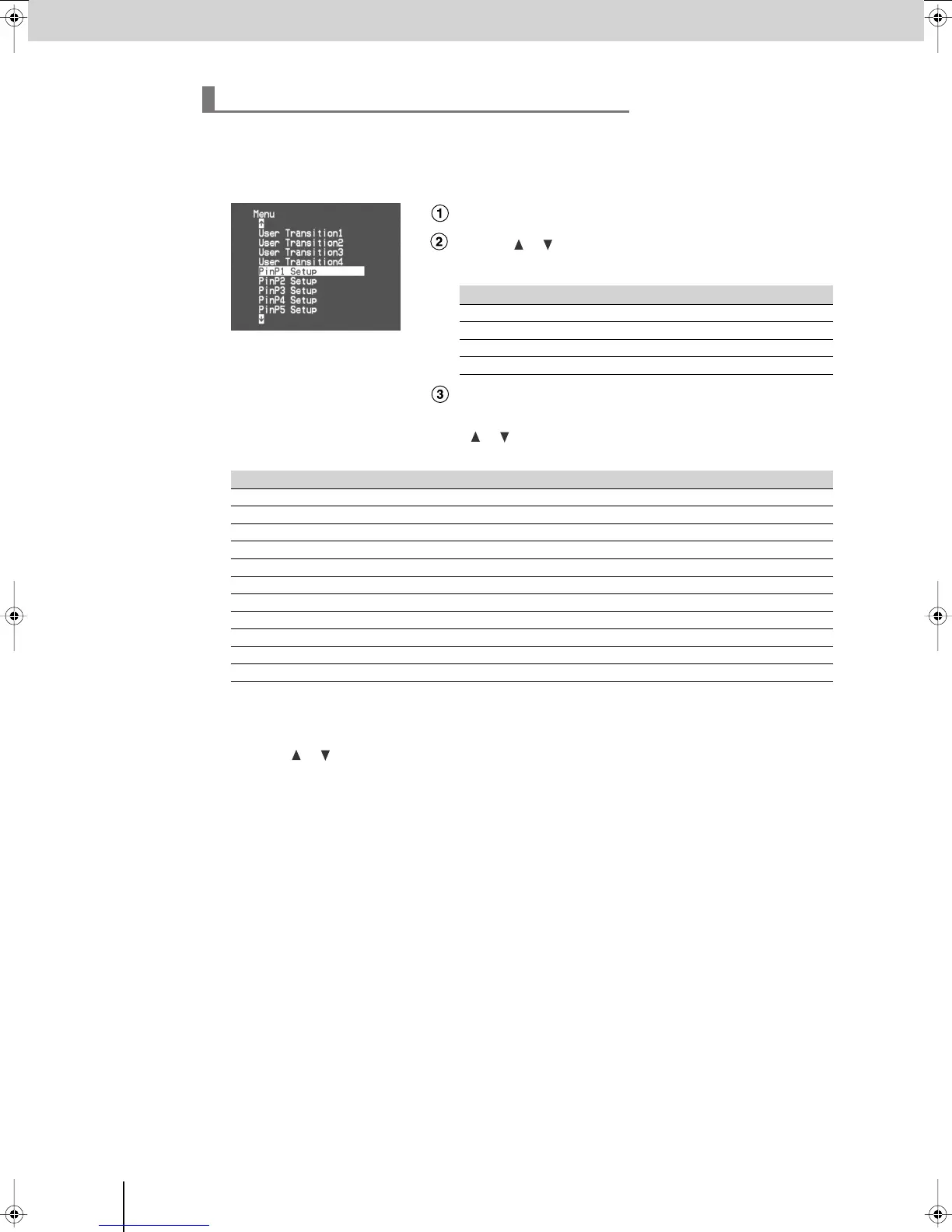

Using Effects
(continued)
44
Eight patterns (“142: PinP1”–“149: PinP8”) are provided for the P in P effect. For each one, you can specify the position
and size of the subscreen.
1 Press the [MENU] button to access the menu, and choose “PinP1 Setup”–“PinP8 Setup.”
Press the [MENU] button to access the menu.
Use the [ ] [ ] buttons to select “PinP1 Setup”–“PinP8 Setup.”
Select the menu item for the PinP effect whose settings you want to edit.
Press the [ENTER] button to confirm your selection.
2
Referring to the table below, use the [] [] buttons to select the item that you want to edit,
and press the [ENTER] button.
*1 If a key-compositing effect (W-LUMIKEY, B-LUMIKEY, CHROMAKEY) is on, the border and shadow of the
subscreen will not be shown.
3
Use the
[] []
buttons to specify the desired position, size, etc., of the subscreen.
4
Press the [MENU] button several times to close the menu.
Detailed settings for the P in P effect
PinP effect Menu item PinP effect Menu item
142: PinP1 PinP Setup1 146: PinP5 PinP Setup5
143: PinP2 PinP Setup2 147: PinP6 PinP Setup6
144: PinP3 PinP Setup3 148: PinP7 PinP Setup7
145: PinP4 PinP Setup4 149: PinP8 PinP Setup8
Menu item Details
PinP-Hposi Adjusts the horizontal position of the subscreen.
PinP-Vposi Adjusts the vertical position of the subscreen.
PinP-4:3 HVsize Adjusts the size of the subscreen with the aspect ratio fixed at 4:3.
PinP-Hsize Adjusts the horizontal size of the subscreen.
PinP-Vsize Adjusts the vertical size of the subscreen.
PinP-Border
*1
Adjusts the border width of the subscreen.
PinP-BColor
*1
Specifies the border color of the subscreen.
PinP-Shadow
*1
Adjusts the shadow length for the subscreen.
PinP-SColor
*1
Specifies the shadow color for the subscreen.
PinP-Trimming Adjusts the trimming region for the subscreen.
PinP-Reset Returns the sub-menu settings to the factory-set state (p. 34).
