Installation
D397-21-880 Issue G
z Remove the bench top adaptor (Figure 6, item 1) by removing the four screws (Figure 6, item 2).
z Slide the Controller into the 19" rack or panel cut out. The use of 19" rack guide rails (Figure 7, item 2) and
support at the rear of the Controller is recommended as shown in Figure 7. The panel cut out information is
defined in Figure 8.
z Fix the Controller in place using the four screws removed previously (Figure 7, item 1).

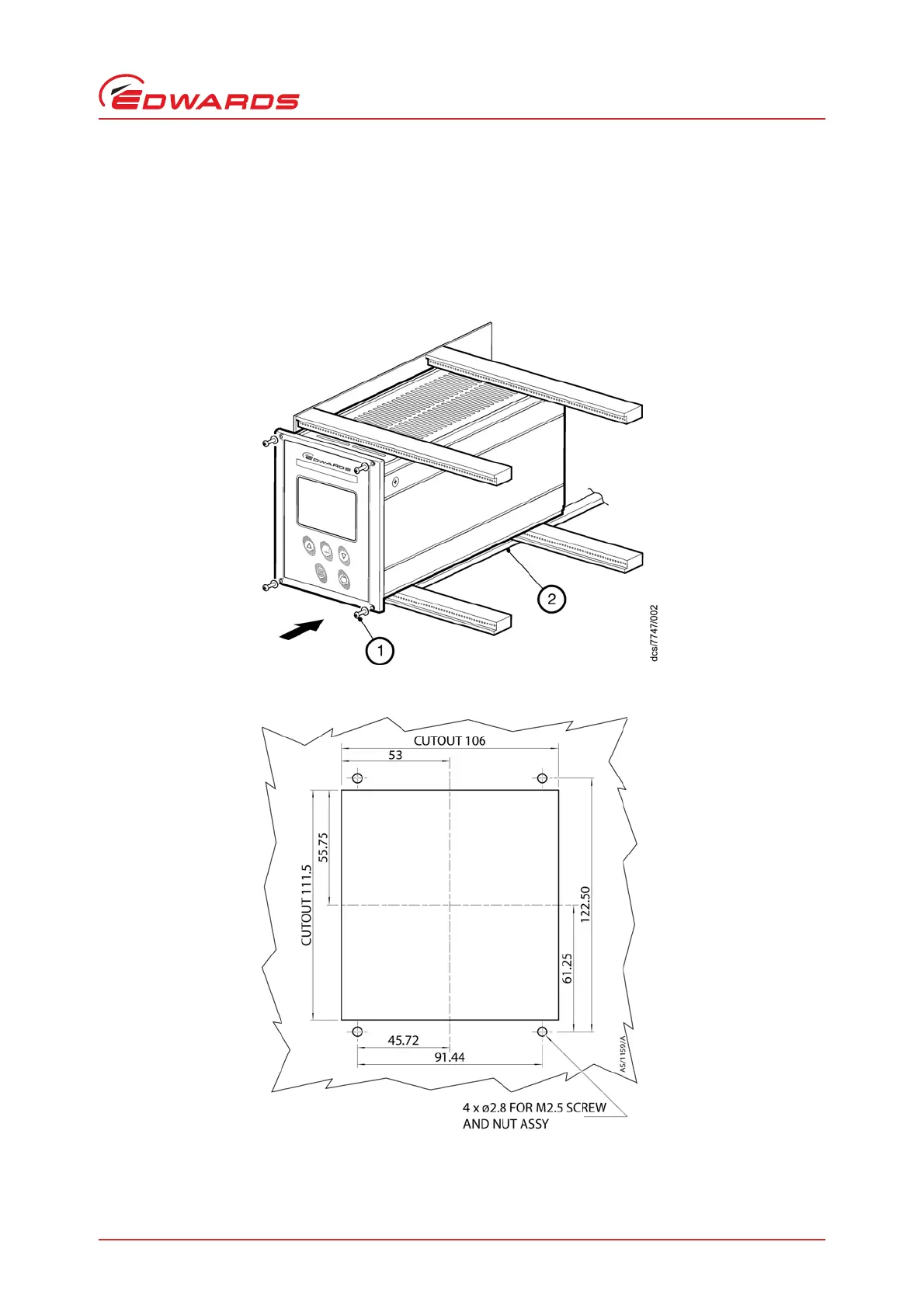

Figure 7 - Rack mounting of a TIC
Figure 8 - Panel cut out drawing
1. Fixing
screw and
washer
2. 19" rack
guide rails
