D397-21-880 Issue G
Page 20 © Edwards Limited 2009. All rights reserved.
Edwards and the Edwards logo are trademarks of Edwards Limited.
Operation
Note: Low pressure gauges must be 'enabled' by the Logic Interface before TIC can turn them ON and OFF. This is
done either by fitting a link across the appropriate pins on the mating connector, or using an external
switch.
The logic interface plug supplied with the TIC has links for this purpose.
If System Interlock (SYSI) is active, pressing the 'Cycle' ( ) button will not switch on low pressure gauges.
Conversely, if SYSI is opened during the vacuum cycle, all connected controllable components will be
switched OFF.
4.6 Changing list items
To change a list item, scroll to the required line and press the 'Select' ( ) button. The list can then be scrolled using
the up and down arrows ( / ).
Pressing the 'Select' ( ) button will accept the adjustment and return the highlight to the row item, allowing another
item to be selected for adjustment.
Pressing the 'Menu' ( ) button will cancel the adjustment and return the highlight to the row item, allowing another
item to be selected for adjustment.
4.7 Changing numerical values
To change a numerical item, scroll to the required line and press the 'Select' ( ) button. The first number will then
be highlighted and can be changed using the up and down arrows ( / ).
The 'Select' ( ) button will move the highlight to the next digit with each successive press, allowing the complete
number to be entered. Pressing the 'Select' ( ) button with the last digit selected will accept the adjustment and
return the highlight to the row item, allowing another item to be selected for adjustment.
At any time, mistakes can be corrected by pressing the 'Menu' ( ) button. This will move the highlight to the previous
digit with each successive button press, allowing corrections to be made. Pressing the 'Menu' ( ) button with the
first digit selected will cancel the adjustment and return the highlight to the row item, allowing another item to be
selected for adjustment.

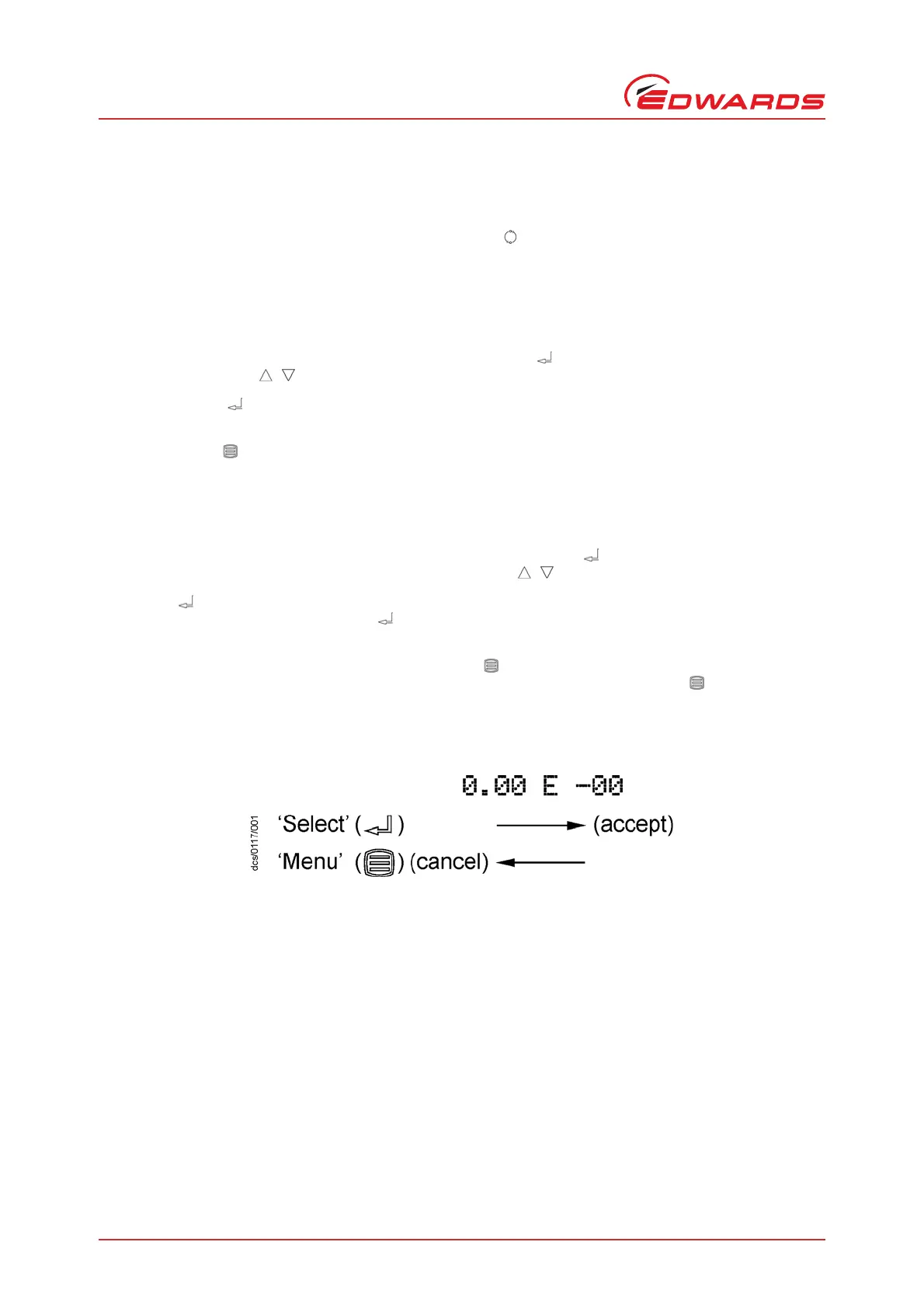

Figure 17 - Changing numerical values
