© Edwards Limited 2012. All rights reserved. Page 27
Edwards and the Edwards logo are trademarks of Edwards Limited.
Installation
M561-00-880 Issue C

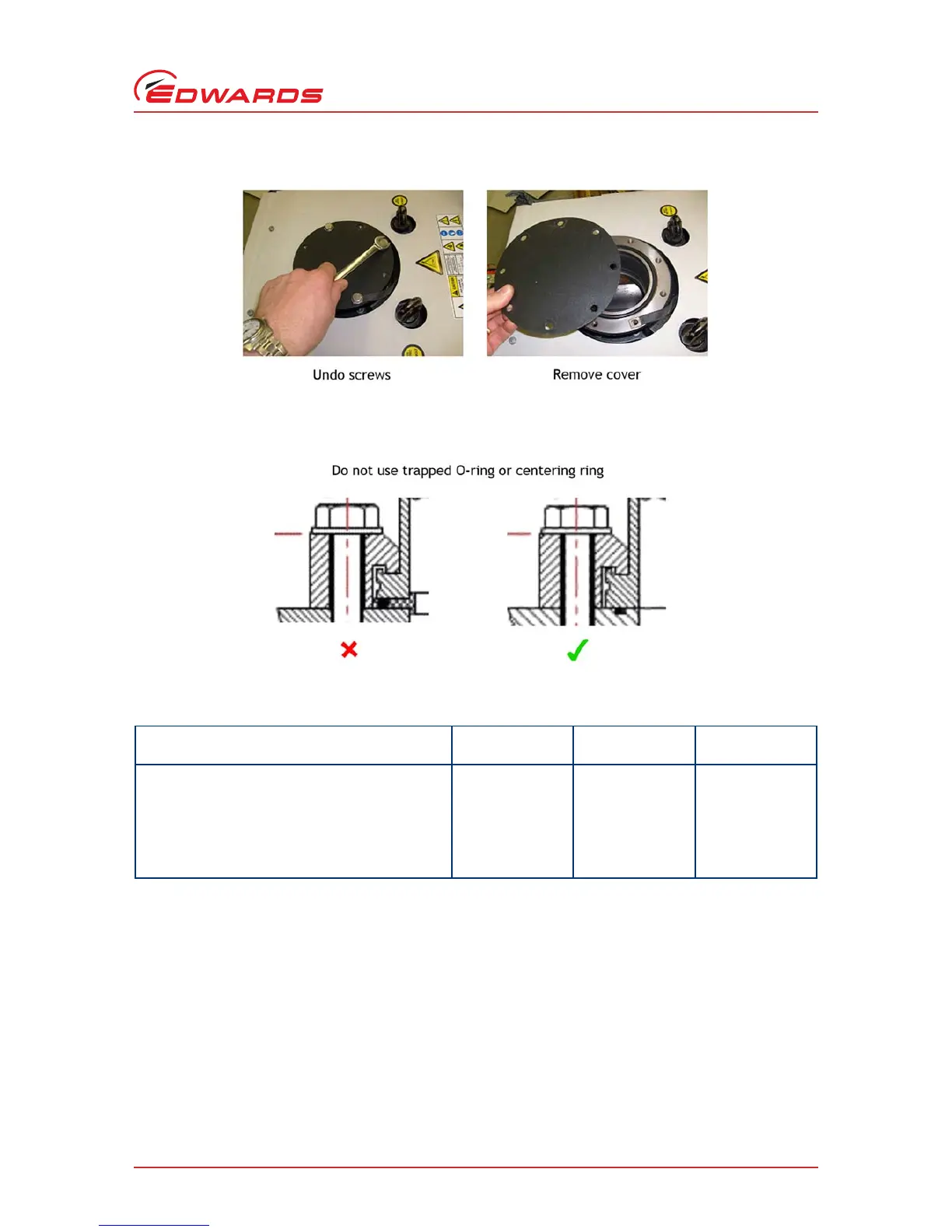

Figure 7 - Connecting the pump inlet
Use Edwards half claw clamps:
3.4 Connect to your factory extraction system (optional)
An extraction port is provided on iXH and iXL systems to allow secondary exhaust ventilation. When connected, the
airflow operates continuously and will extract substances of concern that may be released during a failure.
Refer to Section 2.8 for extraction rates required for each pump model and to Section 7.3 for the required exhaust
extraction cover kit.
Refer to Figure 3, item 7 for location of the extraction port. The pXH does not have facility for extraction.
Flange diameter
Half Claw Clamp
Part No.
Qty Required
Tightening Torque
(Nm)
ISO63 C10007093 4 5
ISO100 C10007093 8 5
ISO160 C10011093 8 5
ISO200 C10011093 12 5
ISO250 C10011093 12 5
