Chapter 2: Installation and configuration

LaserSense 100 Aspirating Smoke Detector Installers Handbook 19

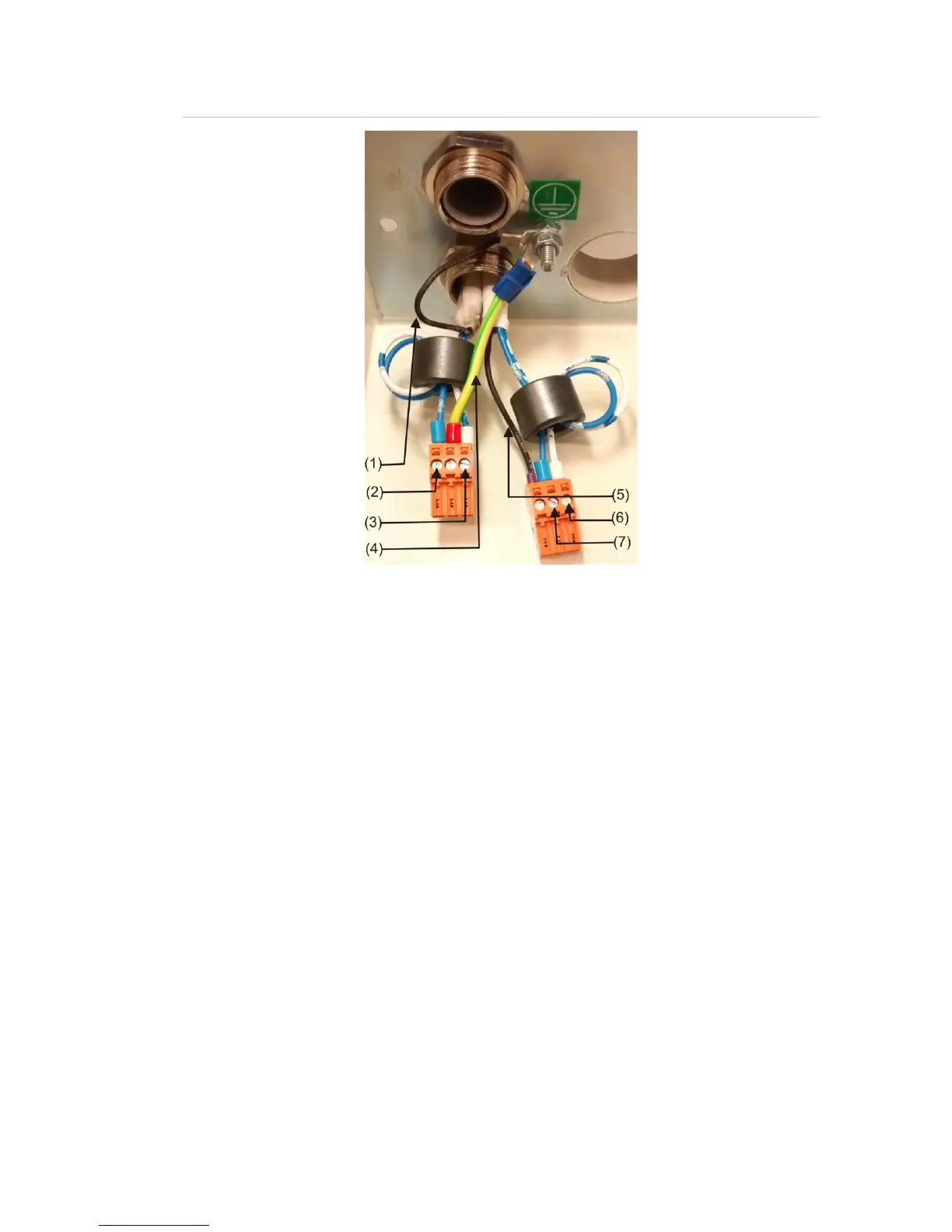

Figure 11: Power and signal connections to the docking station

(1)

Power supply shielded wire to ground stud

(2)

Power supply 0V wire

(3)

Power supply +24V wire

(4) Wire from earth terminal to ground stud

(5) RS-485/SenseNET Bus shielded wire

(6) RS-485/SenseNET Bus A wire

(7) RS-485/SenseNET Bus B wire
