Edwards TCU 40/80 User Manual

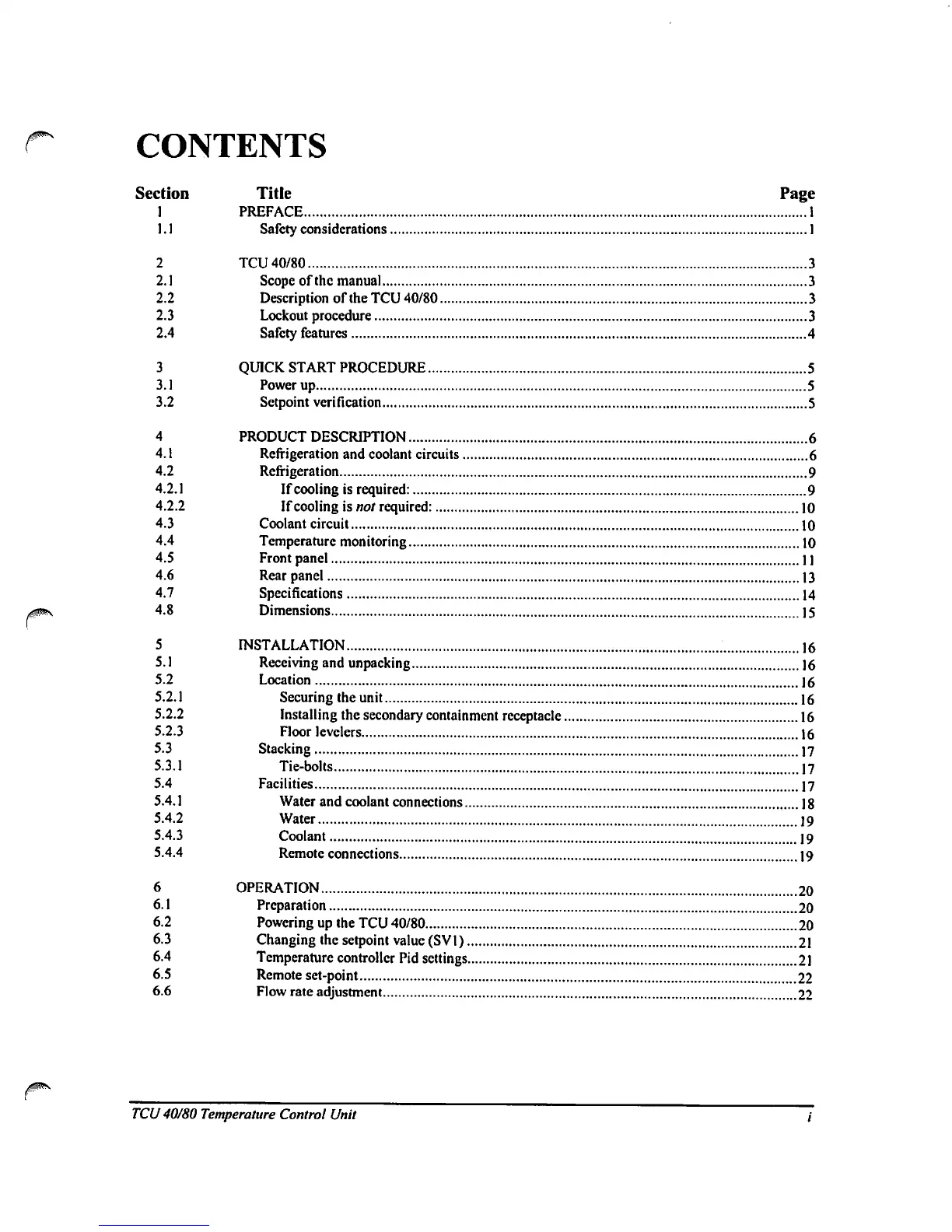

CONTENTS
Section Title Page
1 PREFACE 1
1.1 Safety considerations 1
2 TCU 40/80 3
2.1 Scope of the manual 3
2.2 Description of the TCU 40/80 3
2.3 Lockout procedure 3
2.4 Safety features 4
3 QUICK START PROCEDURE 5
3.1 Power up 5
3.2 Sctpoint verification 5
4 PRODUCT DESCRIPTION 6
4.1 Refrigeration and coolant circuits 6
4.2 Refrigeration 9
4.2.1 If cooling is required: 9
4.2.2 If cooling is not required: 10
4.3 Coolant circuit 10
4.4 Temperature monitoring 10
4.5 Front panel 1 ]
4.6 Rear panel 13
4.7 Specifications 14
4.8 Dimensions 15
5 INSTALLATION ]6
5.1 Receiving and unpacking 16
5.2 Location 16
5.2.1 Securing the unit 16
5.2.2 Installing the secondary containment receptacle 16
5.2.3 Floor levclers 16
5.3 Stacking 17
5.3.1 Tie-bolts 17
5.4 Facilities 17
5.4.1 Water and coolant connections 18
5.4.2 Water 19
5.4.3 Coolant 19
5.4.4 Remote connections 19
6 OPERATION 20
6.1 Preparation 20
6.2 Powering up the TCU 40/80 20
6.3 Changing the setpoint value (SV1) 21
6.4 Temperature controller Pid settings 21
6.5 Remote set-point 22
6.6 Flow rate adjustment 22
/?^v
TCU 40/80 Temperature Control Unit
