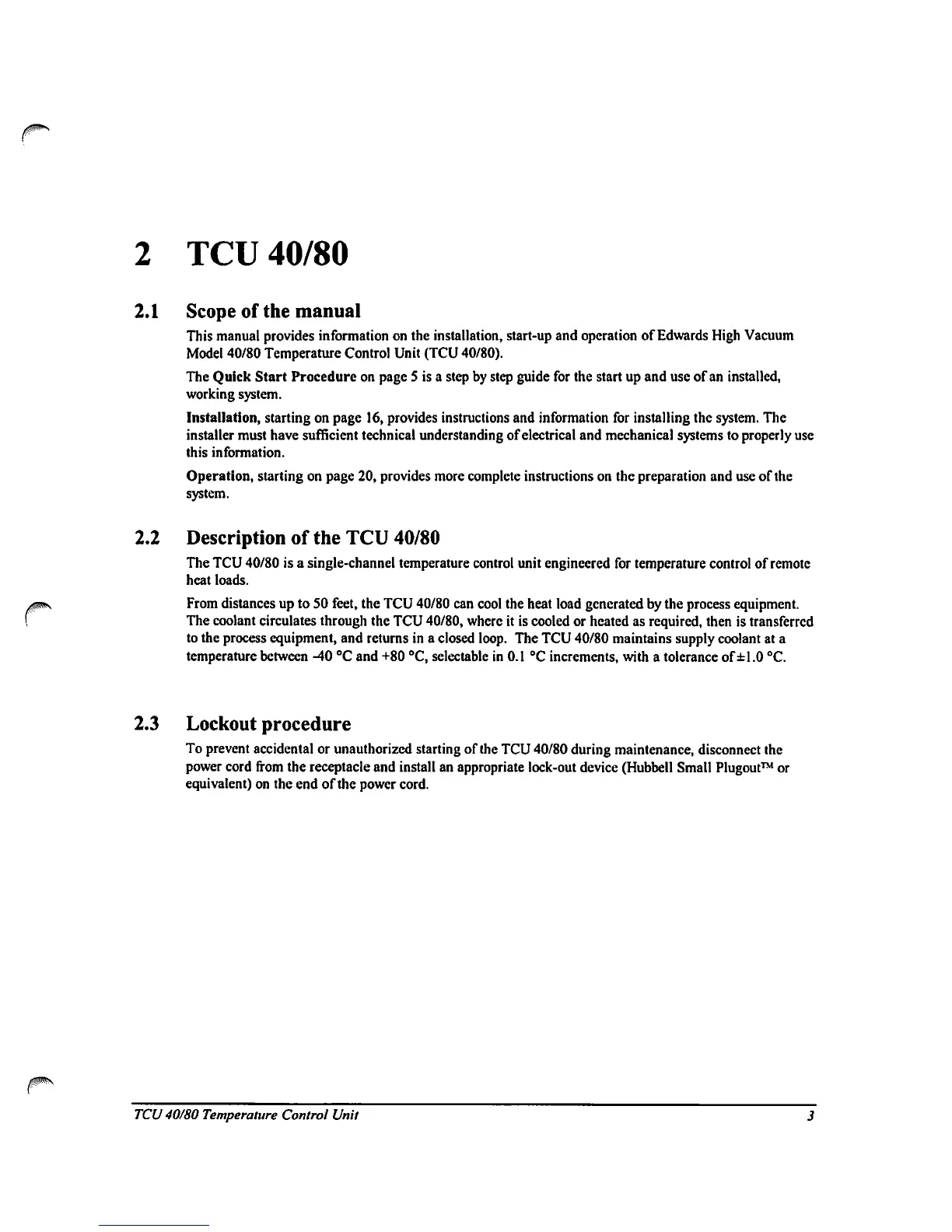

2 TCU 40/80
2.1 Scope of the manual
This manual provides information on the installation, start-up and operation of Edwards High Vacuum
Model 40/80 Temperature Control Unit (TCU 40/80).
The Quick Start Procedure on page 5 is a step by step guide for the start up and use of an installed,
working system.
Installation, starting on page 16, provides instructions and information for installing the system. The
installer must have sufficient technical understanding of electrical and mechanical systems to properly use
this information.
Operation, starting on page 20, provides more complete instructions on the preparation and use of the
system.
2.2 Description of the TCU 40/80
The TCU 40/80 is a single-channel temperature control unit engineered for temperature control of remote
heat loads.
From distances up to SO feet, the TCU 40/80 can cool the heat load generated by the process equipment.
The coolant circulates through the TCU 40/80, where it is cooled or heated as required, then is transferred
to the process equipment, and returns in a closed loop. The TCU 40/80 maintains supply coolant at a
temperature between -40 °C and +80 °C, selectable in 0.1 °C increments, with a tolerance of ±1.0 °C.
2.3 Lockout procedure
To prevent accidental or unauthorized starting of the TCU 40/80 during maintenance, disconnect the
power cord from the receptacle and install an appropriate lock-out device (Hubbell Small Plugout™ or
equivalent) on the end of the power cord.
0
TCU 40/80 Temperature Control Unit
