MaxLoader User’s Guide
90

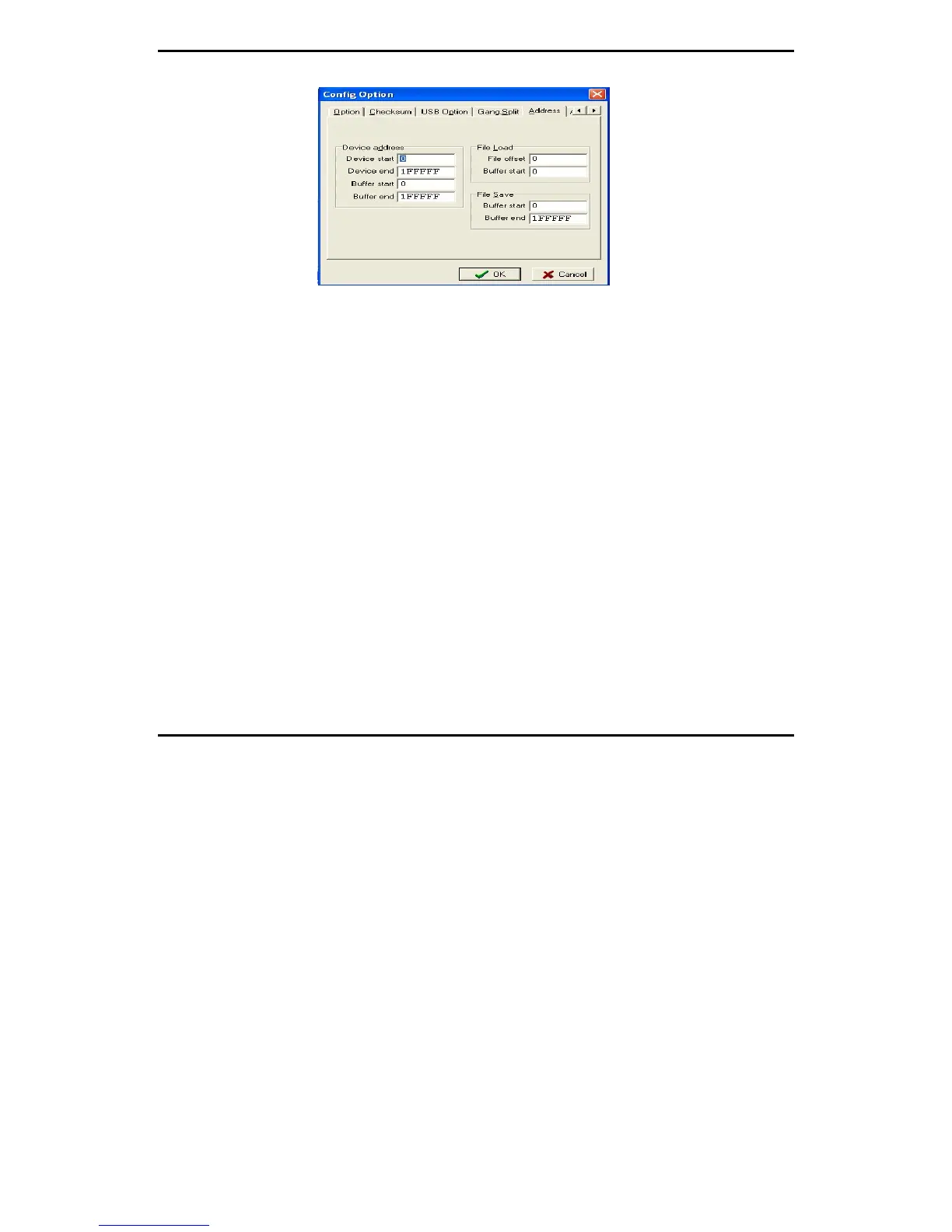

Device Address
These addresses will be applied for programming the buffer data.
-Chip Start: Device Starting address for the data to be programmed in buffer.
-Chip End: Device Ending address for the data to be programmed in buffer.
-Buffer Start: Buffer Starting address for the data to be programmed.
-Buffer End: Buffer Ending address for the data to be programmed.
NOTE: Device size for different devices
Device Device Address
2716 0 - 7FF
2732 0 - FFF
2764 0 - 1FFF
27128 0 - 3FFF
27256 0 - FFFF
27010/1024 0 - 1FFFF
27020/2048 0 - 3FFFF
27040/4096 0 – 7FFFF
File Load
These address will be applied for programming the buffer data.
