MaxLoader User’s Guide
97
EXAMPLE 1: PROGRAM 8 OF 27128 EPROMS WITH SAME DATA:
1. Select the target device (27128) and Load a file that should be same size as
the selected Device size. The target devices could be any devices.
2. Click on the “Gang Program Mode” button.
3. Set Disable for the “Set program” in menu screen.
4. Insert as many as devices in the open sockets.
5. Click a button with serial number or the “START ALL” button and a
programming steam will be executed.

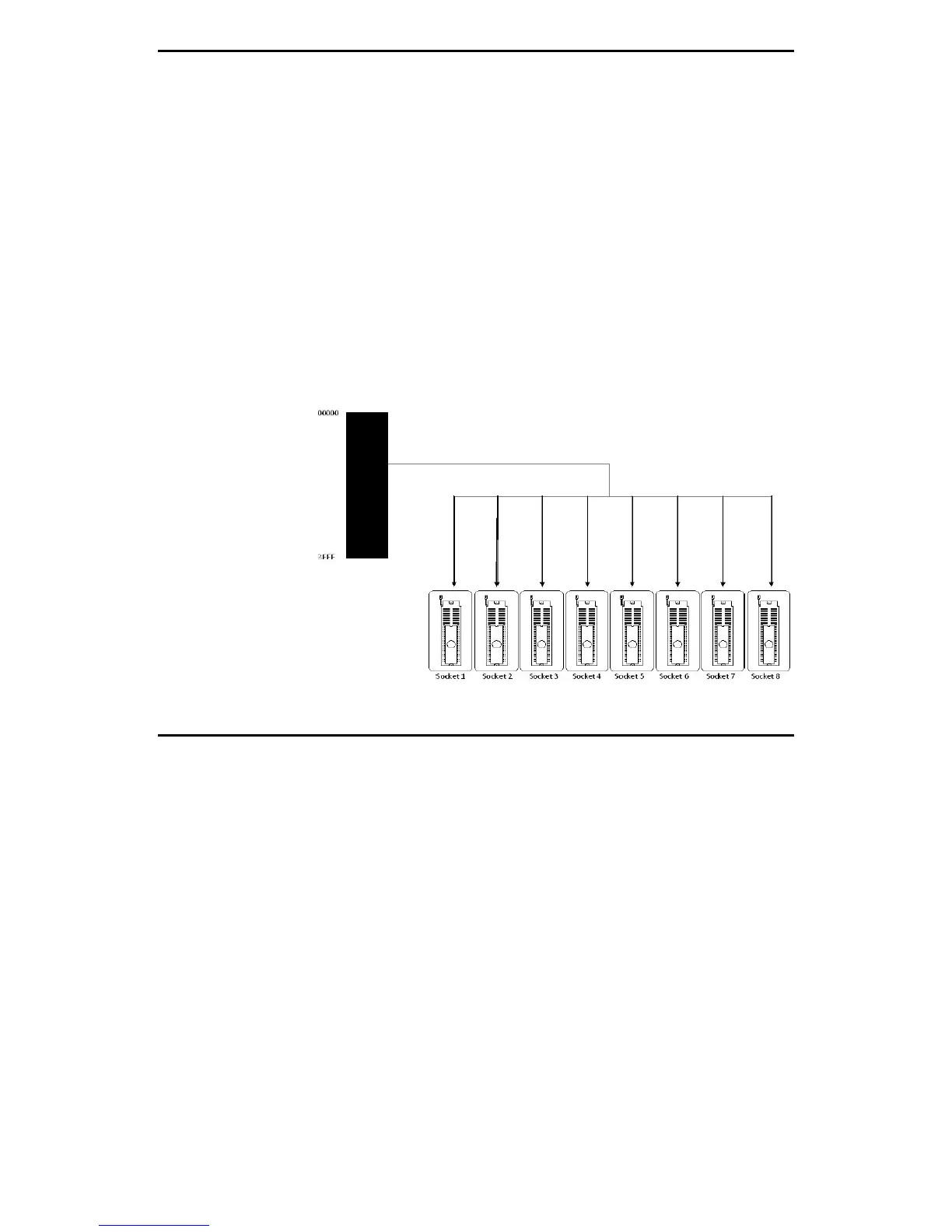

This diagram illustrates how to write (program) buffer data(0000-3FFF for
27128 selection) in eight sockets with same data. All devices in 8 sockets must
be identical and data in devices will be same after programming. If a device in a
group failed during programming, the remaining devices will be programmed;
then, a replacement device must be placed in the same socket as the failed
device
