Connection – Page 64

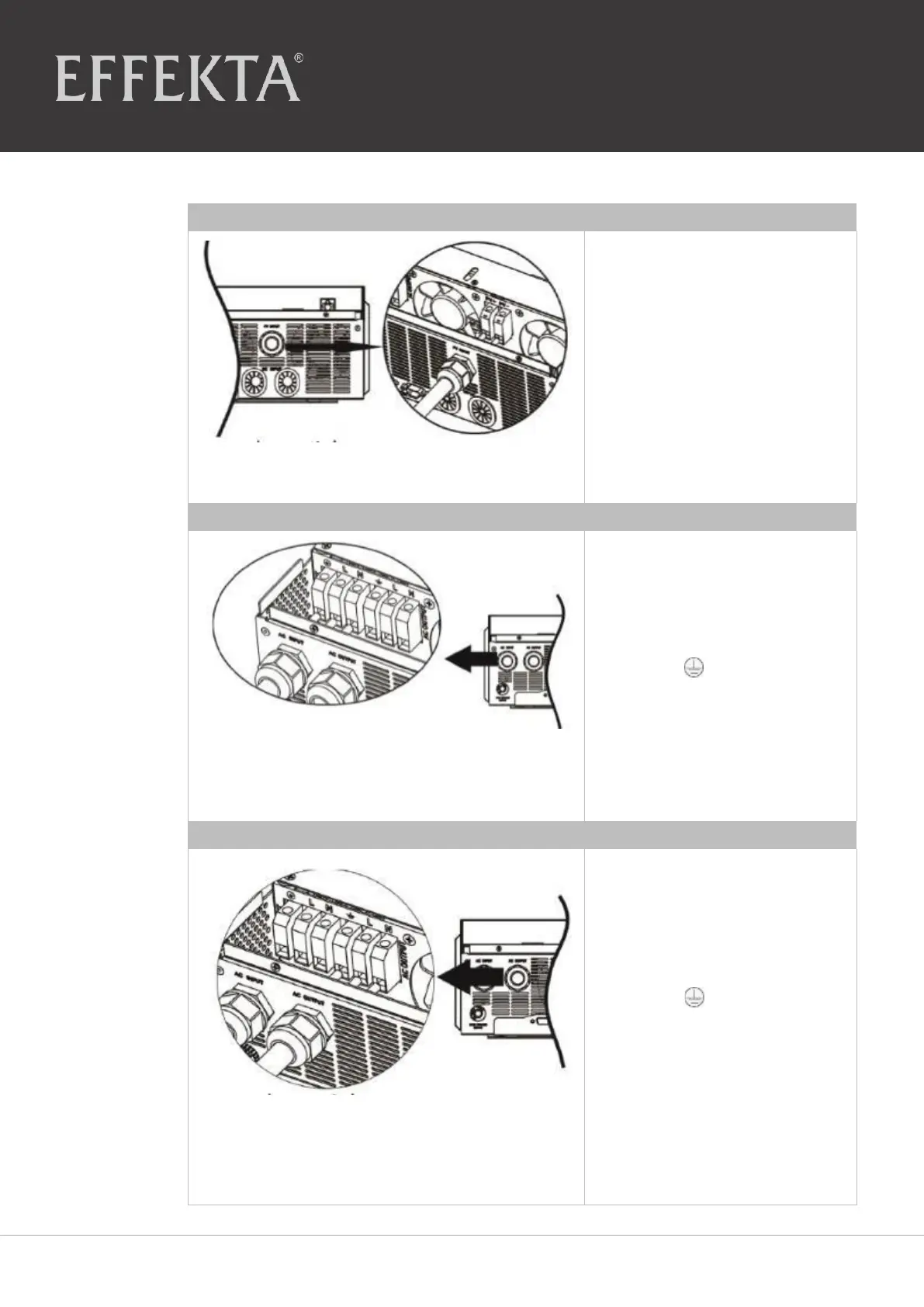

Step 2
Check the correct polarity of the
connection cable from the PV
module and PV input connector .
Connect the plus pole (+) of the
connection cable to the plus
pole (+) of the PV input
connector . Connect the minus
pole of the connection cable (-)
to the minus pole (-) of the PV
input connector .
Step 3
Insert the AC input cable according
to the polarities indicated on the
terminal block .
Tighten the terminal screws.
Connect the PE conductor first .
PE: Mass (yellow-green) L:
LINE (brown or black)
N: Neutral (blue)
Step 4
Insert the AC output cable
according to the polarities
indicated on the terminal block
and tighten the terminal screws .
It is critical to connect the PE
conductor first .
PE: Mass (yellow-green) L:
LINE (brown or black) N:
Neutral (blue)
Ensure that all connected
cables are tightly secured .
