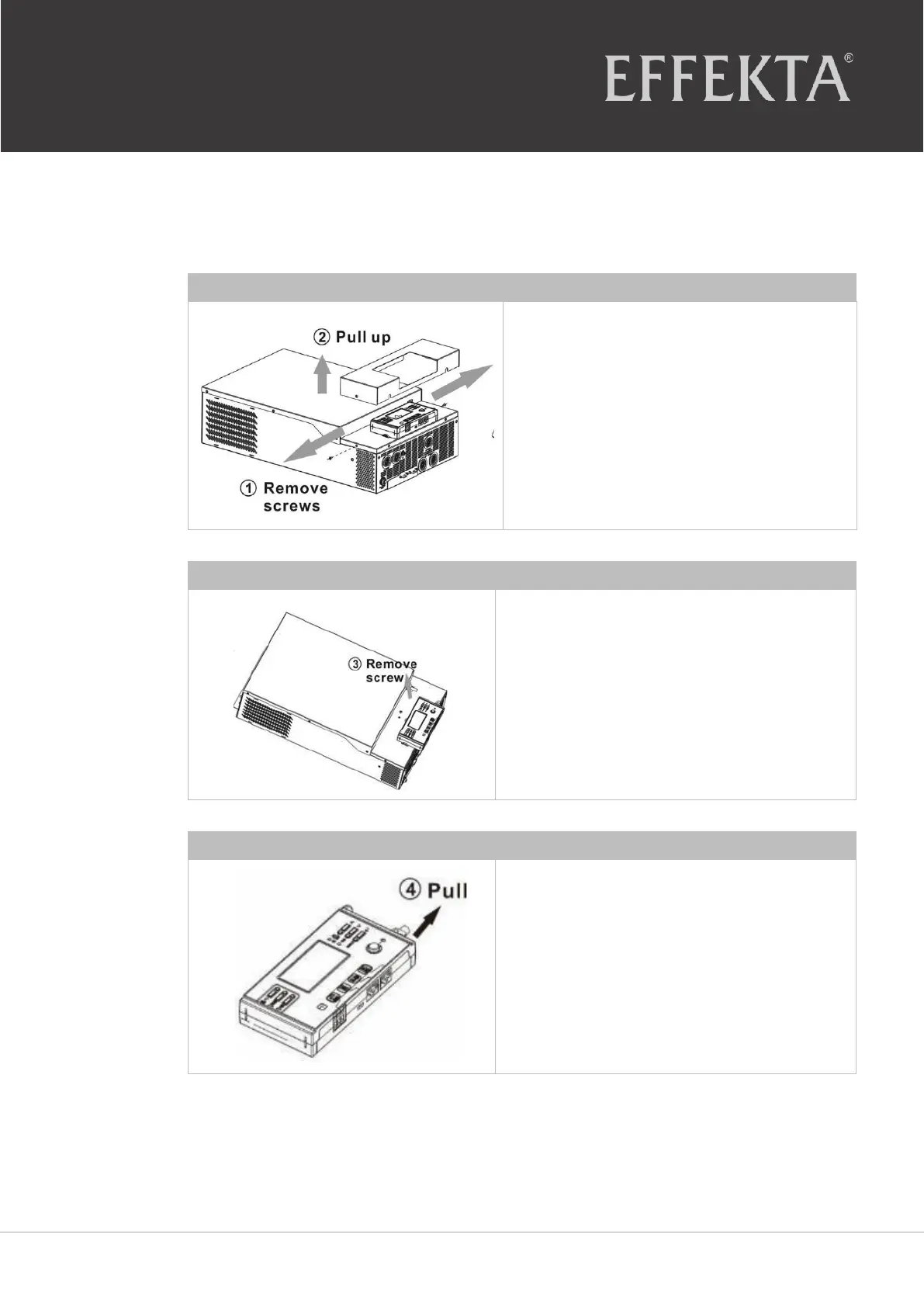

9.7 Installing the remote display panel
The LCD panel can be installed at a different site with an optional communication
cable .
Step 1
Remove the screws on both sides of the
lower housing.
Pull the housing cover up.
Step 2
Remove the screws from the top of the
display field .
Remove the display from the housing
bottom .
Step 3
Pull the cable out from the remote
communication port.
