Connection – Page 63
Solar inverter | V1.7

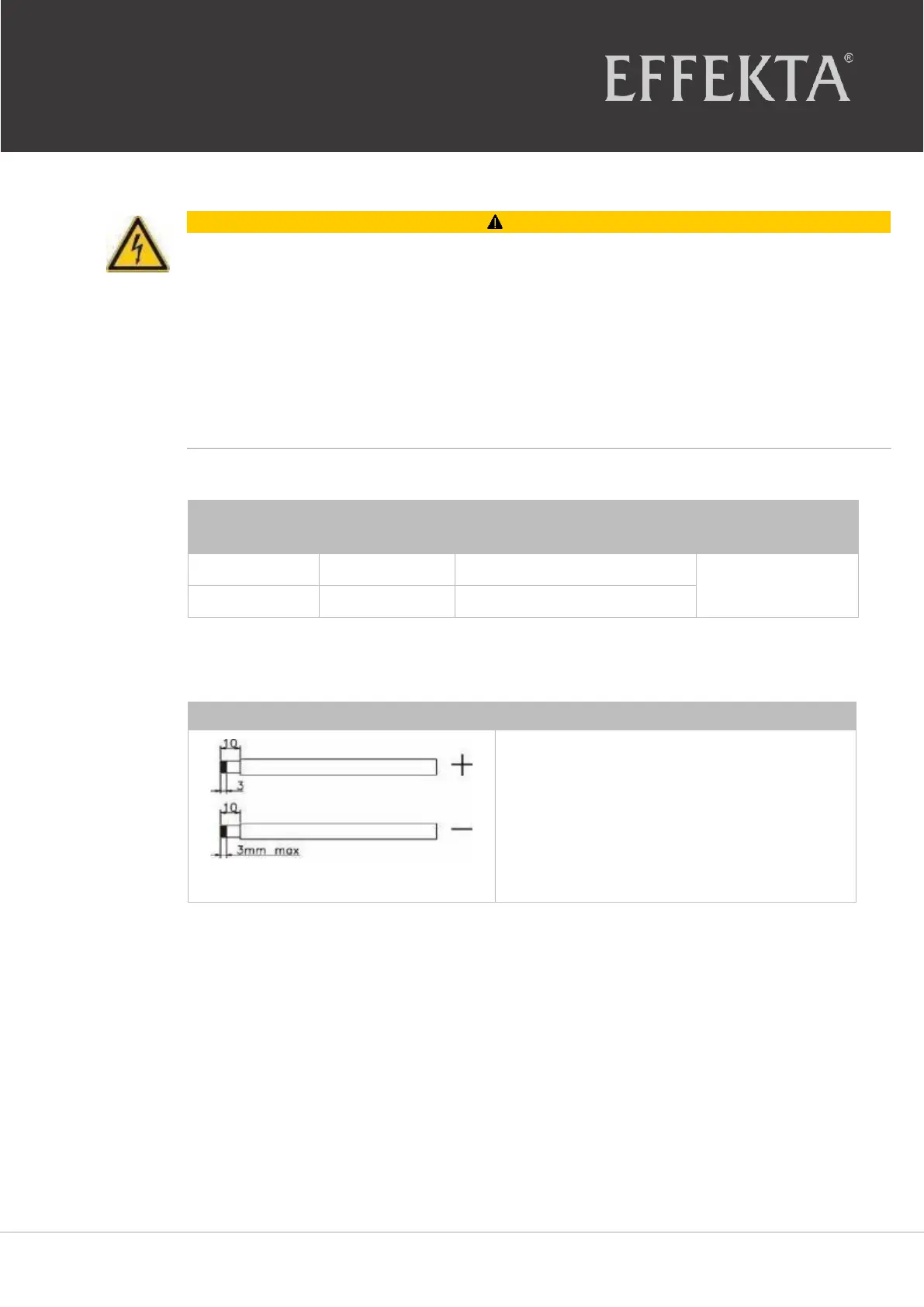

9.4 Connecting a photovoltaic system
Recommended cable sizes :
Model
Max .
current
Cable diameter
Tightening torque
3KW
60A
6m m ²
1.2~1.6 Nm
5KW
80A
10m m ²
Step 1
Remove ca. 10 mm of the isolation from
the plus and minus lines .
WARNING
Risk of injury due to electricity !
 Install a separate DC isolating device between the inverter and the PV
module .
 All the wiring must be carried out by qualified personnel .
 For system safety and efficient operation, it is very important that suitable
cables are used for the connection of the PV module .
 Ensure that the inverter power source is disconnected before beginning
with the wiring for the device .
