Effekta EPS Series - Principal Drawings

U S E R M A N U A L E P S - D
Technical specifications and data are subject to change without any prior notice.
13

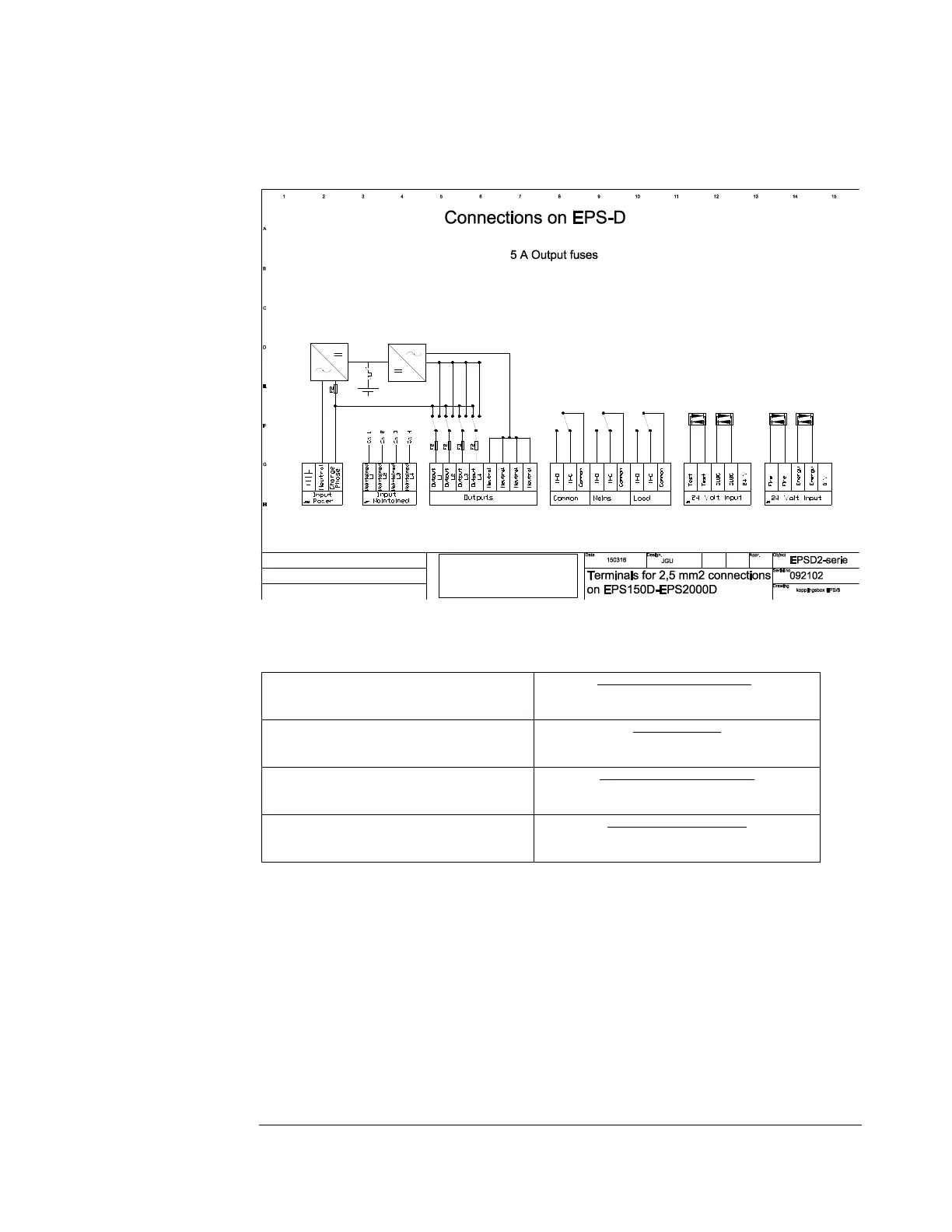

Principal drawings
Suggested connections made with the internal 24 Volts power-supply:
JP1 pin 1 connected to JP1 pin 2
JP2 pin 1 connected to JP1 pin 3
S U B C - S U B C E N T R A L .
A C T I V A T E S A L L O U T P U T S
JP1 pin 1 connected to JP1 pin 4
JP2 pin 1 connected to JP1 pin 5
T E S T I N P U T
A C T I V A T E S A L L O U T P U T S
JP1 pin 1 connected to JP2 pin 2
JP2 pin 1 connected to JP2 pin 3
E N E R G Y S A V E I N P U T
DEA C T I V A T E S A L L O U T P U T S
JP1 pin 1 connected to JP2 pin 4
JP2 pin 1 connected to JP2 pin 5
F I R E A L A R M I N P U T
A C T I V A T E S A L L O U T P U T S
