Effekta EPS Series - Connection Examples

U S E R M A N U A L E P S - D
Technical specifications and data are subject to change without any prior notice.
14
Connection examples

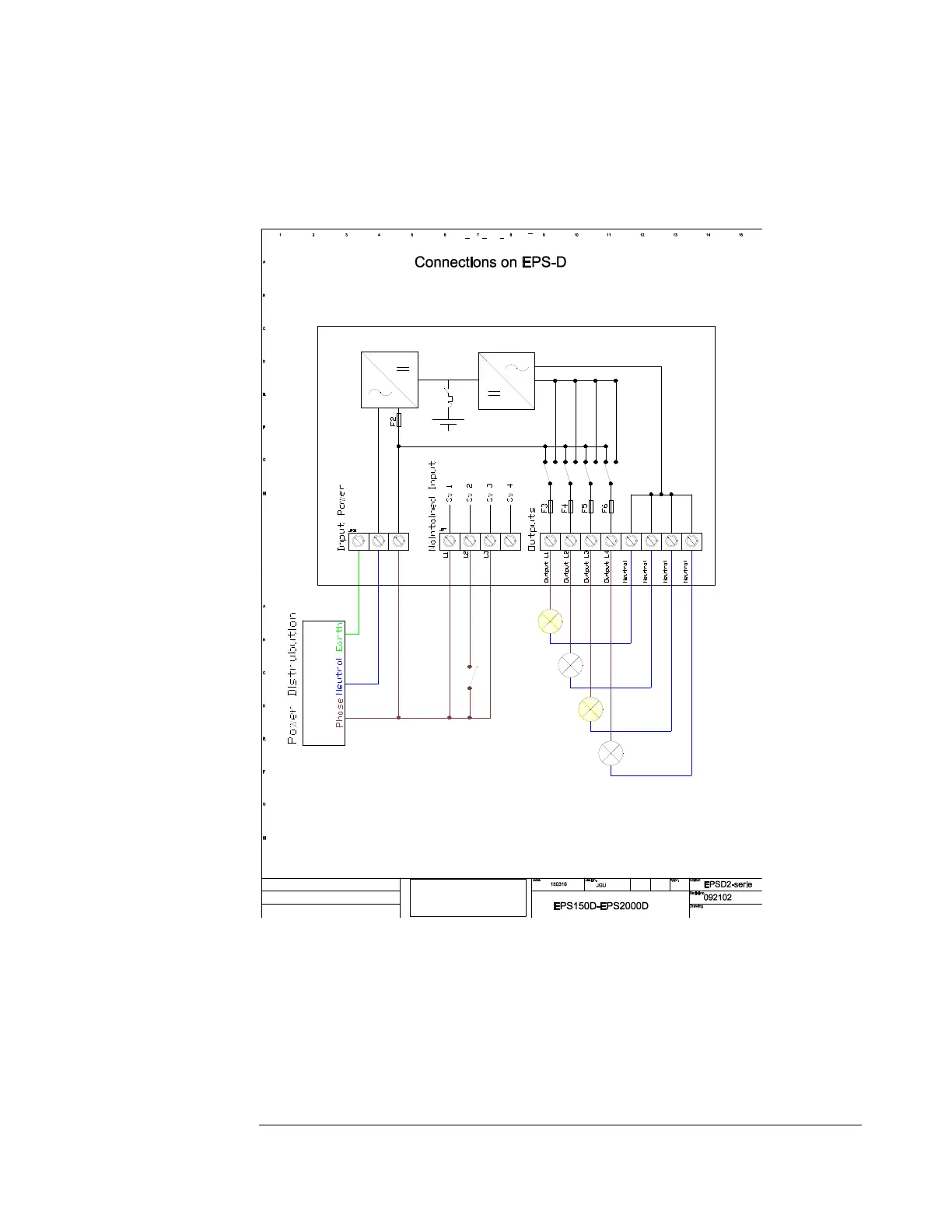

Exempel A-1:
Output 1: Always activated.
Output 2: Activates when BR1 is closed or at mains failure, tests and 24V inputs.
Output 3: Always activated.
Output 4: Deactivated. Activates at mains failure, tests and 24V inputs.
