U S E R M A N U A L E P S - D
Technical specifications and data are subject to change without any prior notice.
34
Changeovers
Mains to inverter – The inverter starts, synchronized to the mains, between 5
and 20 ms after detection of the mains outage, to ensure a safe load changeover
(when load is maintained). The changeover is also determined by the soft start and
delay settings.
Inverter to Mains – The inverter locks towards the mains (synchronizes) and will,
after a short pause, transfer the load to the mains with a maximum interruption of
0.5 sec.
Earth relay– This relay switches between input neutral and earth while under
battery power. This output neutral is earthed while under battery power,
preventing output voltage from floating in relation to earth. Thus the 4-contact
break will work without an additional transformer.

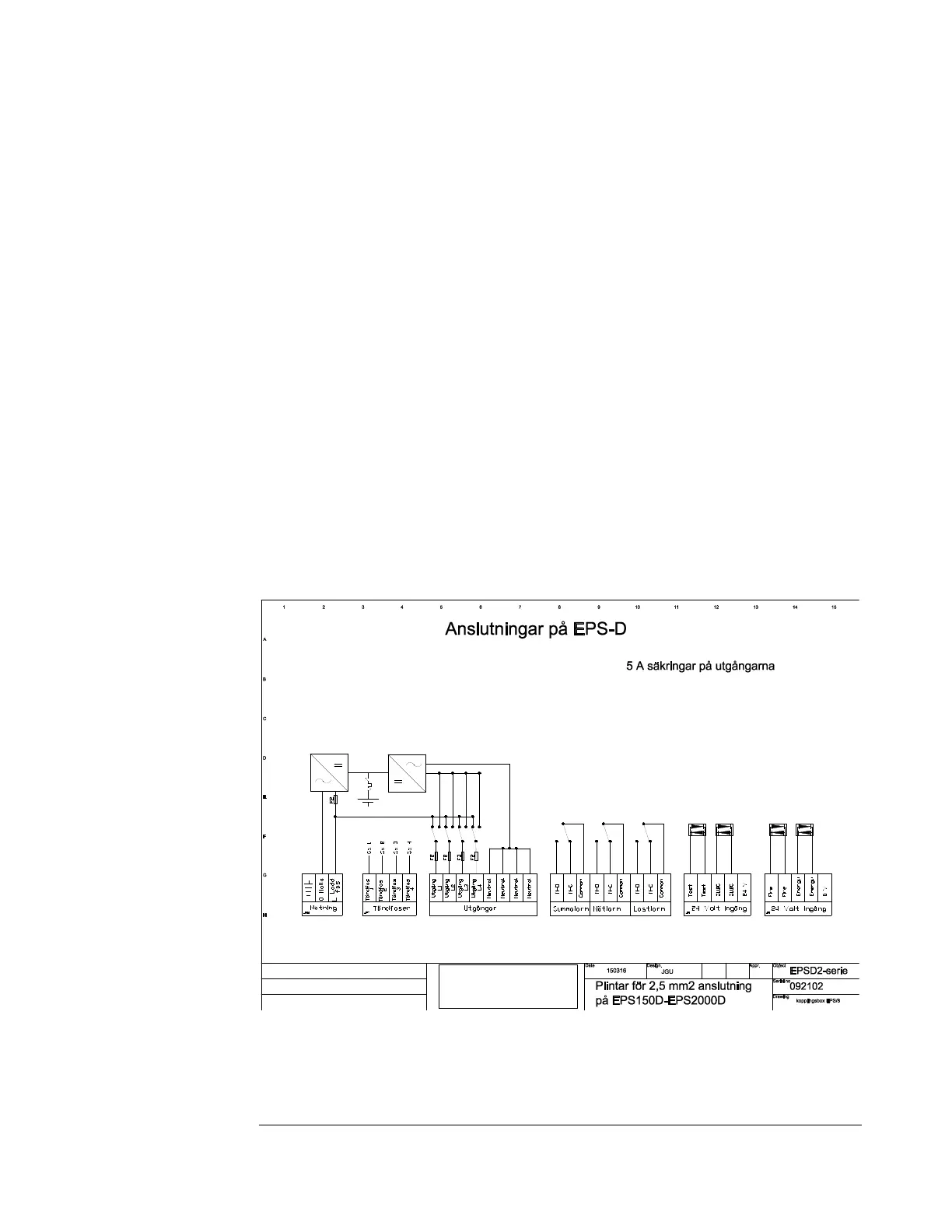

Load connections. –Each output port is individually fused, using a 5 A fast. It
breaks at 11 A on 0.4sec. (2530 VA/W).
