EFI IQ-501 - Setting Media Attributes and Measuring Chart; Reviewing Results and Applying Calibration

How-To: Using the IQ-501 with the Fiery server
10

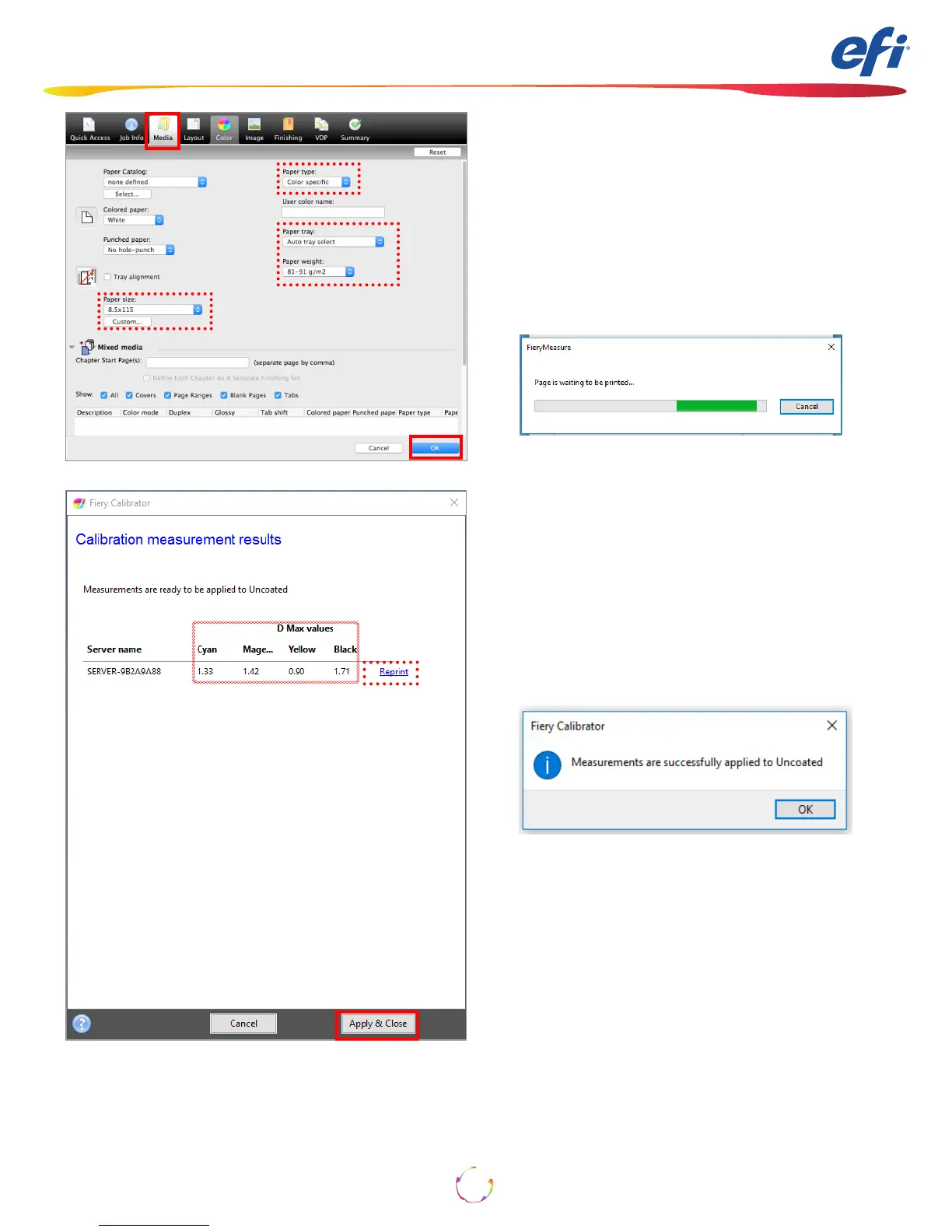

11. The Fiery Measure job properties window
opens.
12. Select the Media tab.
13. Select the media attributes that are dened by
the calibration name, ensuring that the media
size matches the chart size (previous step).
14. Click OK to print and measure the chart.
15. The Calibration measurement results are
shown.
Ensure that the D Max values displayed are
within the expected tolerance for the engine and
media selected. Reprint or take appropriate
service steps if not.
16. Click Apply & Close to complete the calibration.
