Hardware Overview
Document ID: OMM-00174 Rev. D Pro 30f Operations Guide 15
3.1.1 Carriage Assembly
The carriage assembly contains many critical components required for Inkjet printing. These components include print
heads and the electronics to control them, ink tanks for the print heads, lamps for curing the ink, and a negative pressure
system that controls ink flow. Each system is described in the paragraphs and figures included in this section.
3.1.1.1 Front Carriage Assembly
B
A
C
D
F
G
E

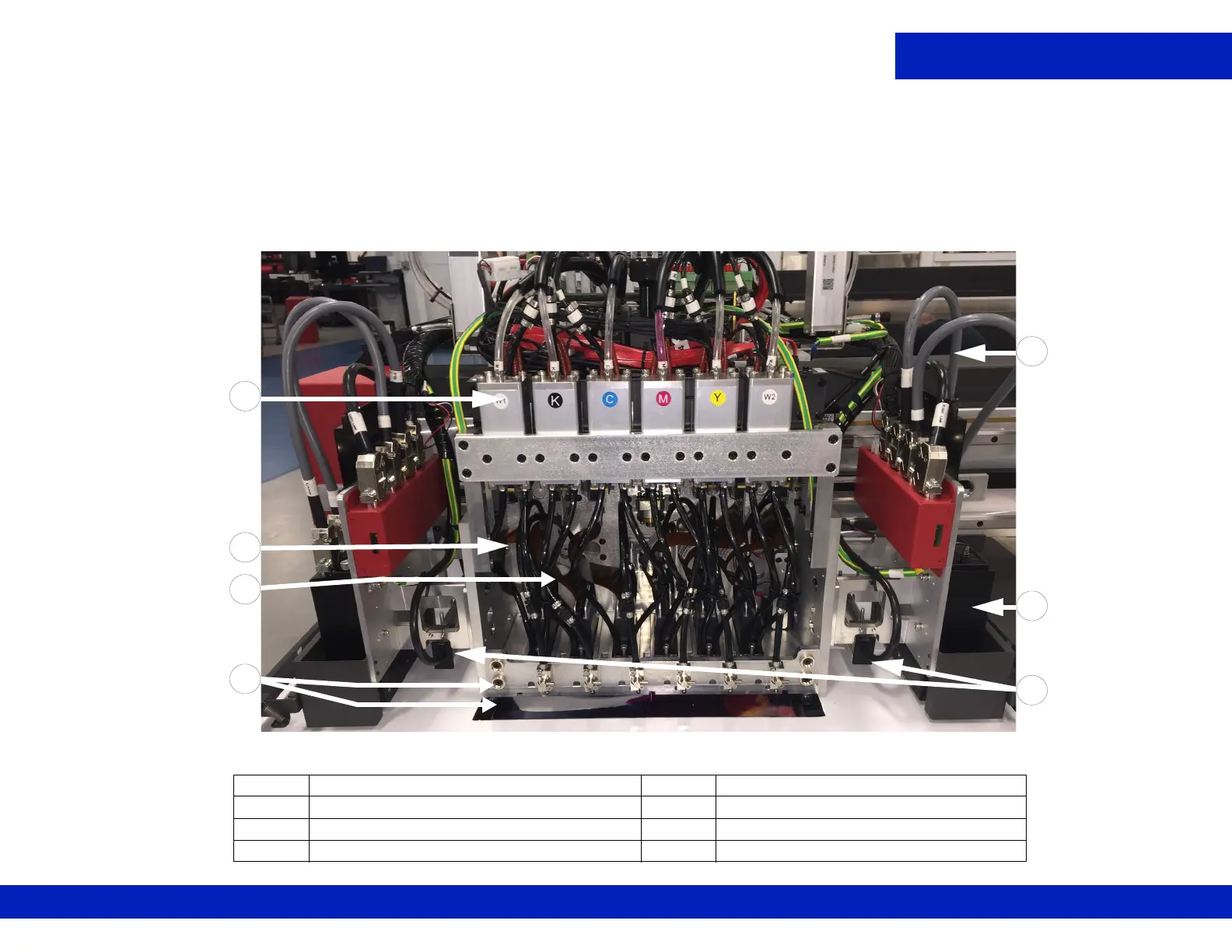

Figure 3-2 : Carriage Front View (No Covers Shown)
ASecondary Ink Tanks ELamp Cables
B Ink Bleed Tubes F LED Lamps
C Ink Supply Tubes G Antistatic Bars
D Ink Bleed Valves and Drain Trough
