EFI Pro 30f - 5.2 Load Media

Printer Setup
Document ID: OMM-00174 Rev. D Pro 30f Operations Guide 40
1. Turn off the vacuum.
2. Press the Media Guide button on the front of the printer (close to the start button) to raise the media registration pins.
3. Load the media aligned against the registration pins.
5.2 Load Media
A
A
B
B

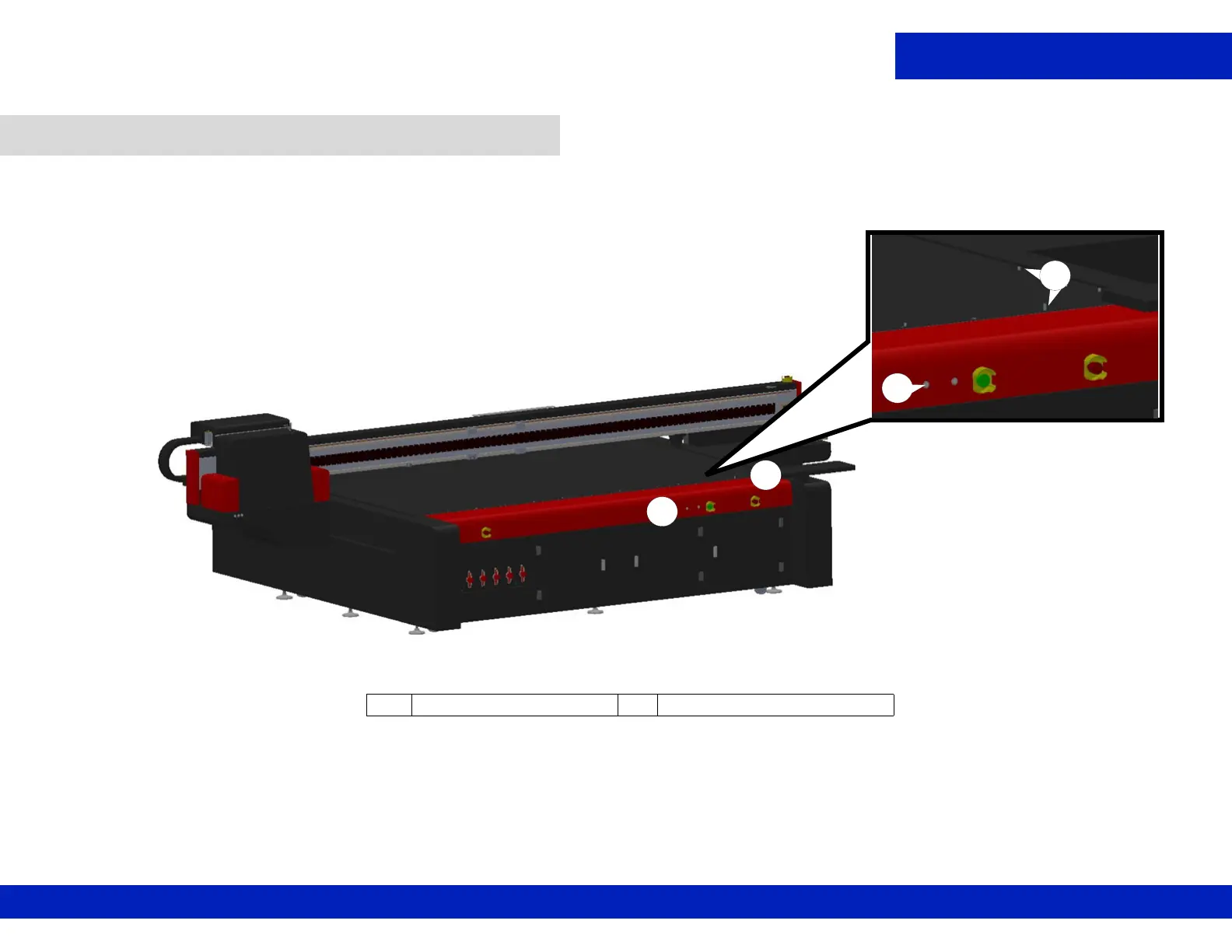

Figure 5-13 Raise Media Registration Pins
A Media guide button B Media registration pins
