Printer Setup
Document ID: OMM-00174 Rev. D Pro 30f Operations Guide 41
4. Open the vacuum valves for the appropriate zones.
5. Use the foot pedal to turn on the vacuum.
NOTE: If the media size does not match the vacuum zone, mask the area
around the media to create a closed vacuum system. Use vinyl or
other material less than the thickness of the print media to mask
the table.
6. Lower the media registration pins.
7. Set margins in the software, then send the job to print.

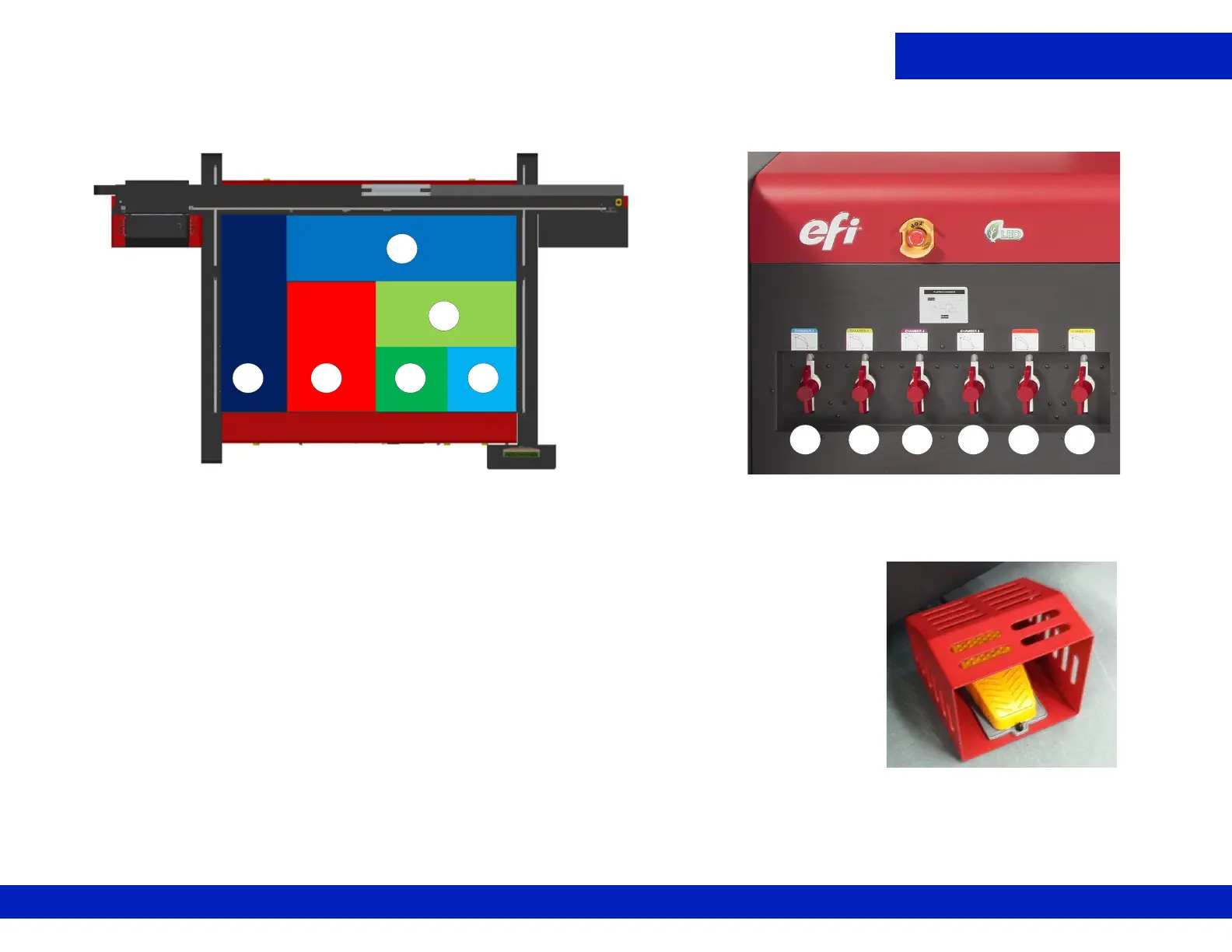

Figure 5-14 : Vacuum Controls
Vacuum Zones
12
3
4
5
6
123456
Vacuum Valves
Figure 5-15 : Media Belt Vacuum Foot Pedal
To Next Page
