EFKA DA320G5351
12

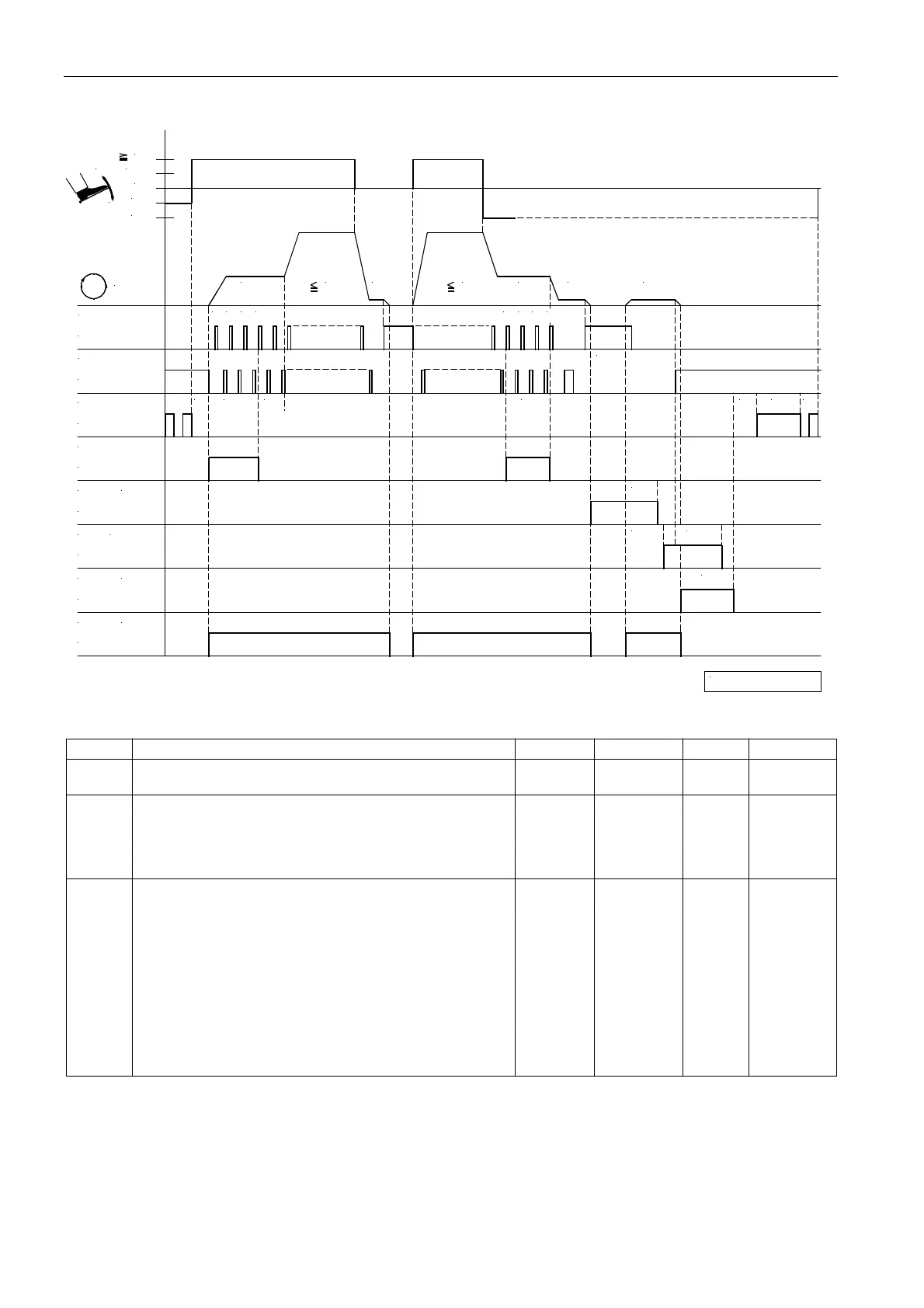

Machine run with intermediate stop
n2
1
c1
(FSPL)
A/36
M2
M3
A/28
A/27
M4
M1
VR
FL
A/37
A/34
A/35
(ML)
(FW)
(FA)
t3
n
POS.2
A/21
A/20
POS.1
+
-
0
-1
-2
0
1/2
1
t1
n3 n2
32
n1
FSA
c3
iFA
FSE
n7n4
3210
n7
tFA
t5
t6
0267/LAUFZW
t7 t4
Mark Function Parameter Control V810 V820
Single start backtack On Key S2 Key 1 Key 1
Single end backtack On Key S3 Key 2 Key 4
n1 Positioning speed 110
n2 Maximum speed 111
n3 Start backtack speed 112
n4 End backtack speed 113
n7 Trimming speed 116
c1 Start backtack stitches backward 001
c3 End backtack stitches backward 002
iFA Activation angle of the thread trimmer 190
FSA Thread tension release switch-off delay 191
FSE Thread tension release activation angle 192
tFA Stop time for thread trimmer 193
t1 Delay until speed release after start backtack 200
t3 Start delay from lifted sewing foot 202
t4 Full power of sewing foot lifting 203
t5 Pulsing of sewing foot lifting 204
t6 Thread wiper ON period 205
t7 Sewing foot switch-on delay after thread wiper 206
