EFKA DA320G5351
10

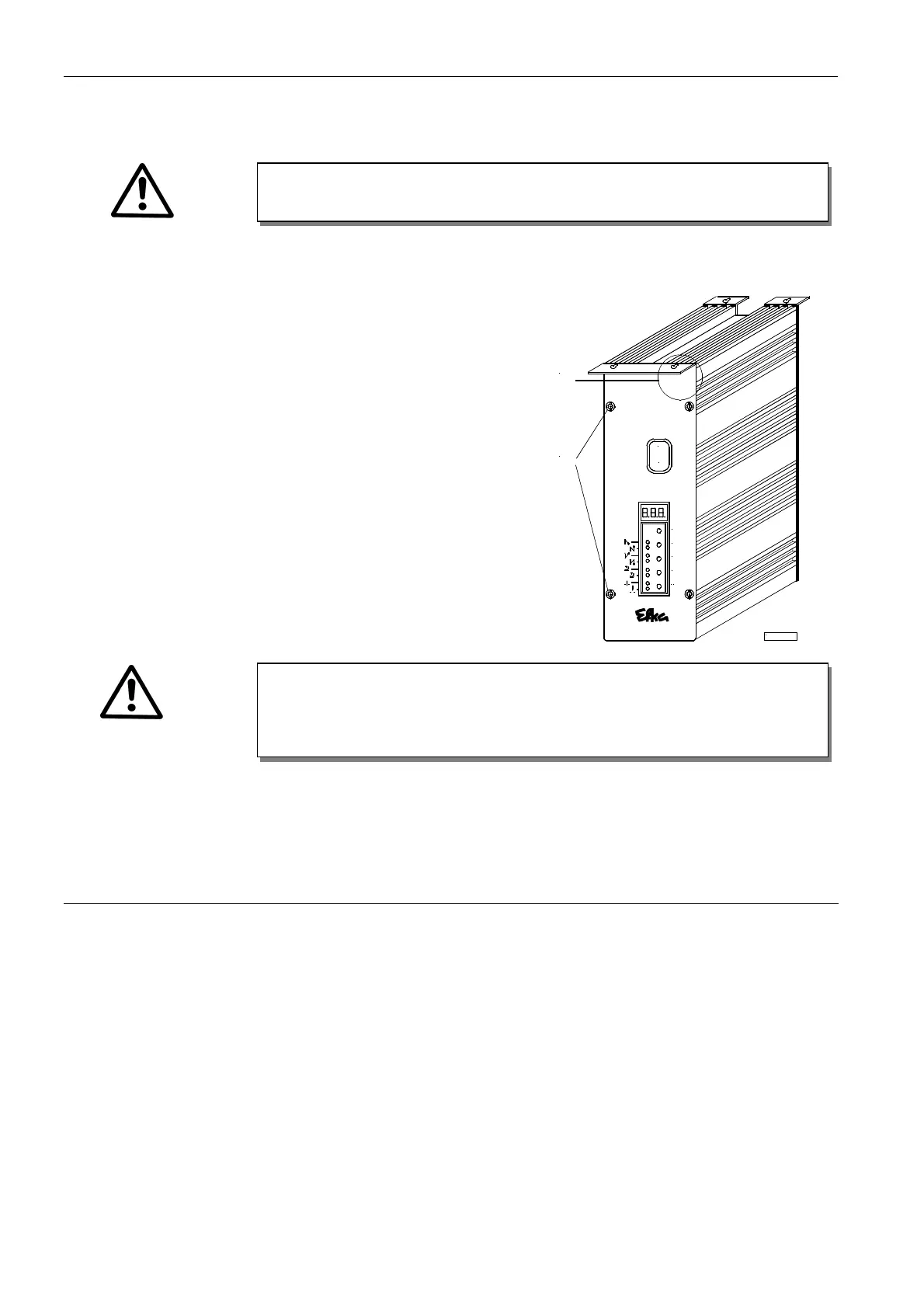

3.4 Connection of a Sewing Light with Transformer
Switch off the control and remove mains plug from outlet
Unscrew the control unit from the machine table
Loosen 2 screws (A) each at the front and at the rear
Open the left part of the housing
Pull the sewing light cable through the cable bushing
Area (B): Connect strands with clamp on the printed circuit board
Insert earth lead into plug-in device on the housing
Close and screw-connect the housing
Mount the control unit on the machine table
CAUTION!
When the sewing light is connected, it is always current-carrying (230V), even if
the control unit is switched off! Only one sewing light with transformer can be
connected to the control unit!
ATTENTION!
B
efore opening the cover, turn power off!
>
>
E
-
+
P
A
B
0
I
KL2399a
