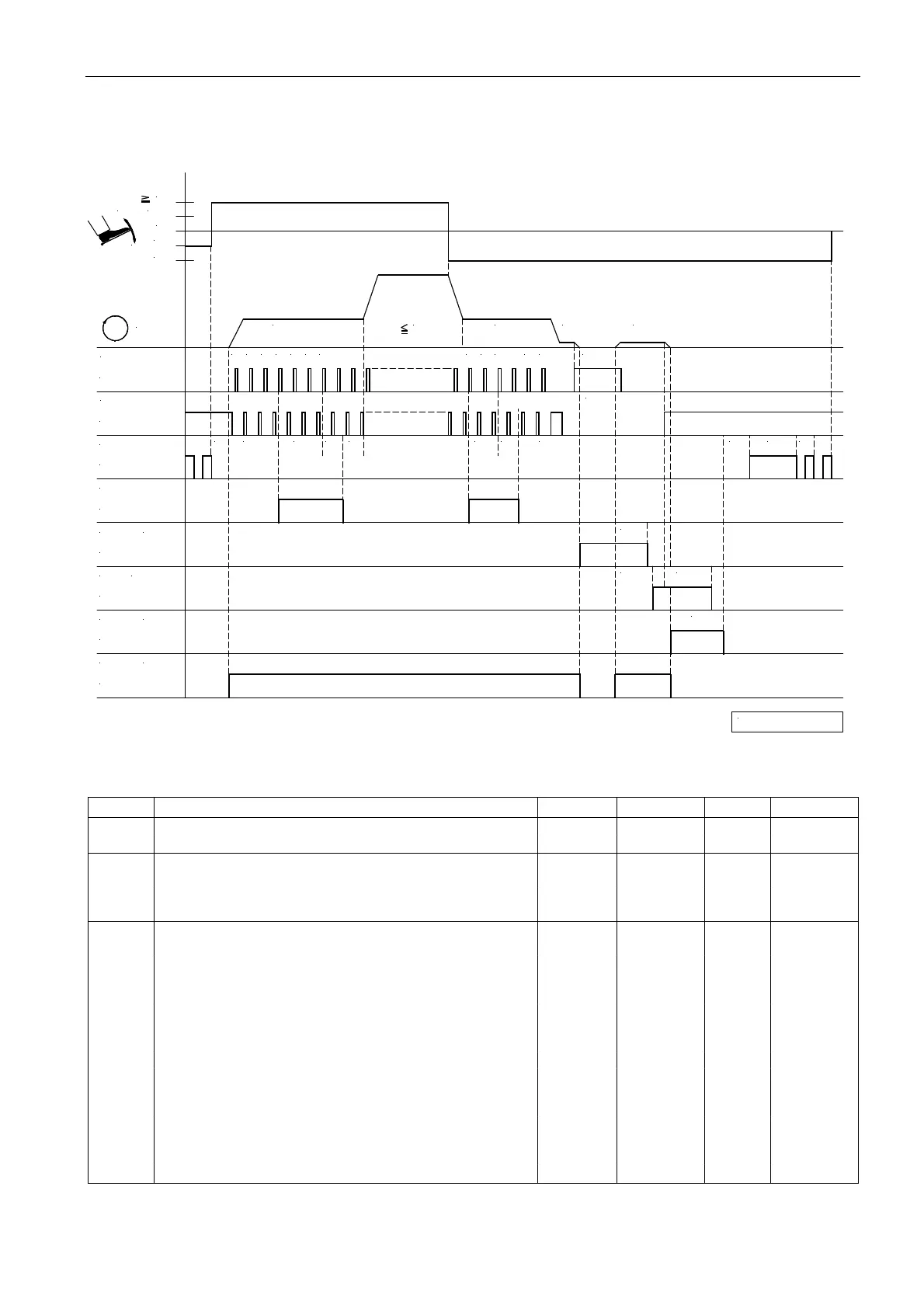

4 Timing Diagrams
Trimming from full machine run
1
c3
1
c2
(FSPL)
A/36
M2
M3
A/28
A/27
M4
M1
VR
FL
A/37
A/34
A/35
(ML)
(FW)
(FA)
t3
n
+
POS.2
A/21
A/20
POS.1
-
0
-1
-2
0
1/2
1
c1 t8 t1
n3
32132
n2
0
t9 c4
t6
FSA
iFA
FSE
tFA
n4 n7
3212
n7
0267/FALAUF
t5t4t7
Mark Function Parameter Control V810 V820
Double start backtack with stitch correction On Key S2 Key 1 Key 1
Double end backtack with stitch correction On Key S3 Key 2 Key 4
n2 Maximum speed 111
n3 Start backtack speed 112
n4 End backtack speed 113
n7 Trimming speed 116
c2 Start backtack stitches forward 000
c1 Start backtack stitches backward 001
c3 End backtack stitches backward 002
c4 End backtack stitches forward 003
t8 Start backtack stitch correction 150
t9 End backtack stitch correction 151
iFA Activation angle of the thread trimmer 190
FSA Thread tension release switch-off delay 191
FSE Thread tension release activation angle 192
tFA Stop time for thread trimmer 193
t1 Delay until speed release after start backtack 200
t3 Start delay from lifted sewing foot 202
t4 Full power of sewing foot lifting 203
t5 Pulsing of sewing foot lifting 204
t6 Thread wiper ON period 205
t7 Sewing foot switch-on delay after thread wiper 206
