Efka DA320G5351 - Position of the Socket Connectors

EFKA DA320G5351
7

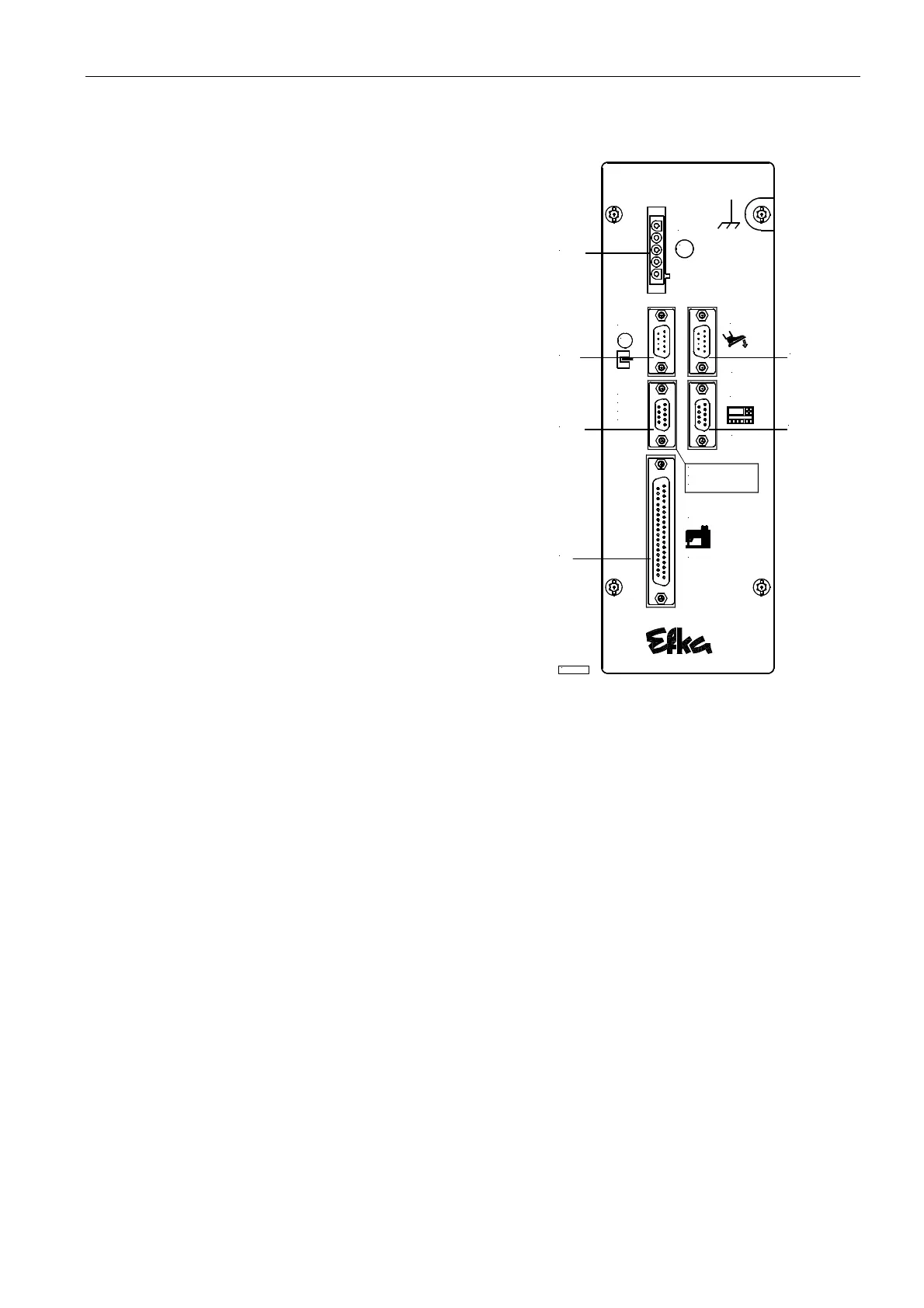

3.2 Position of the Socket Connectors
B2 Socket for commutation transmitter
B18 Socket for - Light barrier module LSM002
- Hall sensor module HSM001
- Pulse encoder IPG001
- EFKANET
(Adapter cord 1113229 in case of multiple assignment)
B41 Socket for motor power supply
B80 Socket for actuator
B776 Socket for V810/V820 control panel
ST2 Socket for solenoid inputs and outputs /
solenoid valves / displays / keys and switches
Adapter 1113229
LSM...+ HSM...
LSM...+ IPG...
ST2
HSM...
KL2356
LSM...
A
B18
A
B2
B18
IPG...
B2
B41
M
M
B41
V8 . .
B776
EB...
B776
B80
B80
