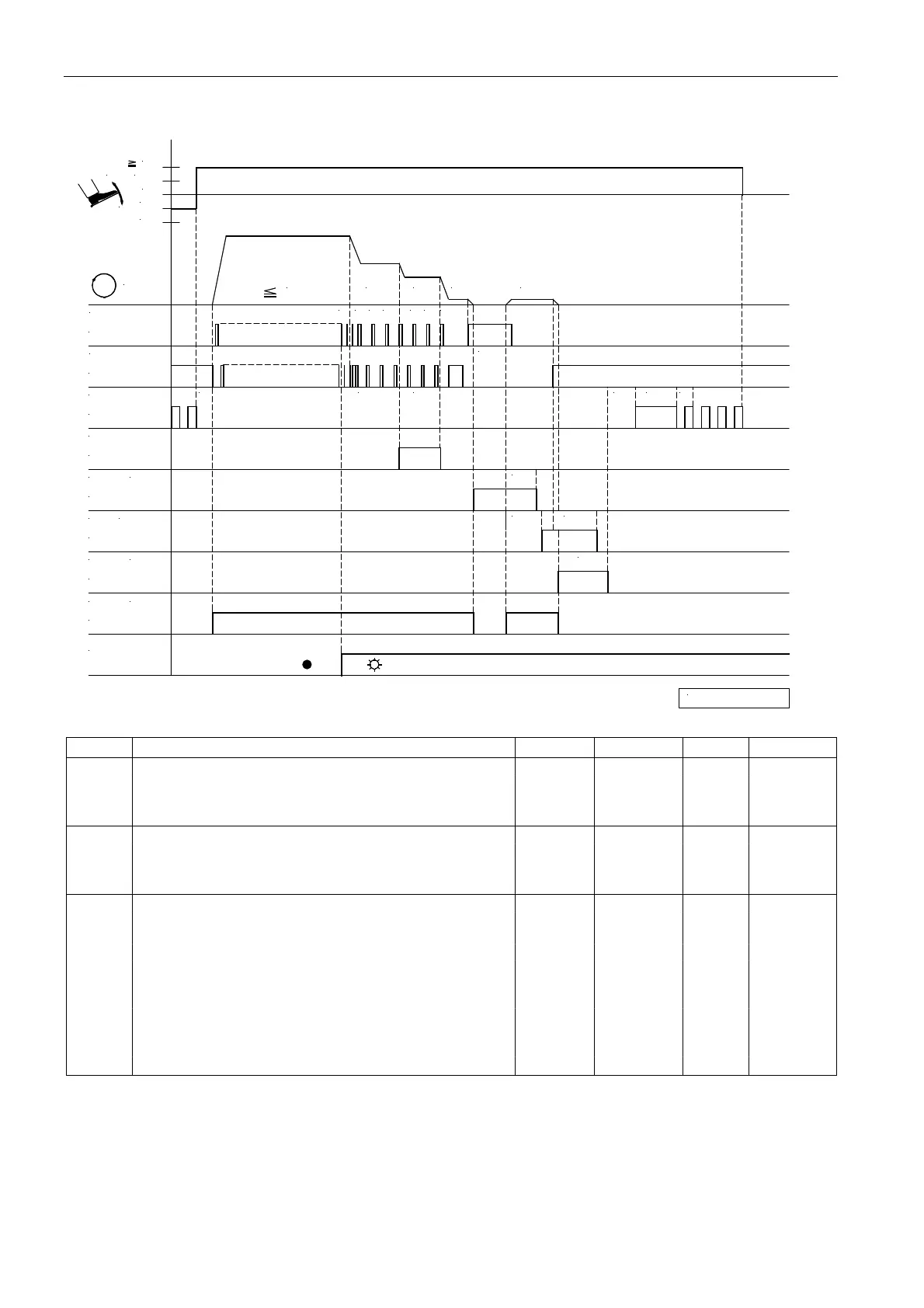

End sensing by light barrier
Mark Function Parameter Control V810 V820
Start backtack Off Key S2 Key 1 Key 1
Single end backtack On Key S3 Key 2 Key 4
Light barrier 009 = 1
Light barrier covered/uncovered 131 = 1
n2 Maximum speed 111
n3 Start backtack speed 112
n5 Speed after light barrier sensing 114
n7 Trimming speed 116
c3 End backtack stitches backward 002
LS Light barrier compensating stitches 004
iFA Activation angle of the thread trimmer 190
FSA Thread tension release switch-off delay 191
FSE Thread tension release activation angle 192
tFA Stop time for thread trimmer 193
t3 Start delay from lifted sewing foot 202
t4 Full power of sewing foot lifting 203
t5 Pulsing of sewing foot lifting 204
t6 Thread wiper ON period 205
t7 Sewing foot switch-on delay after thread wiper 206
