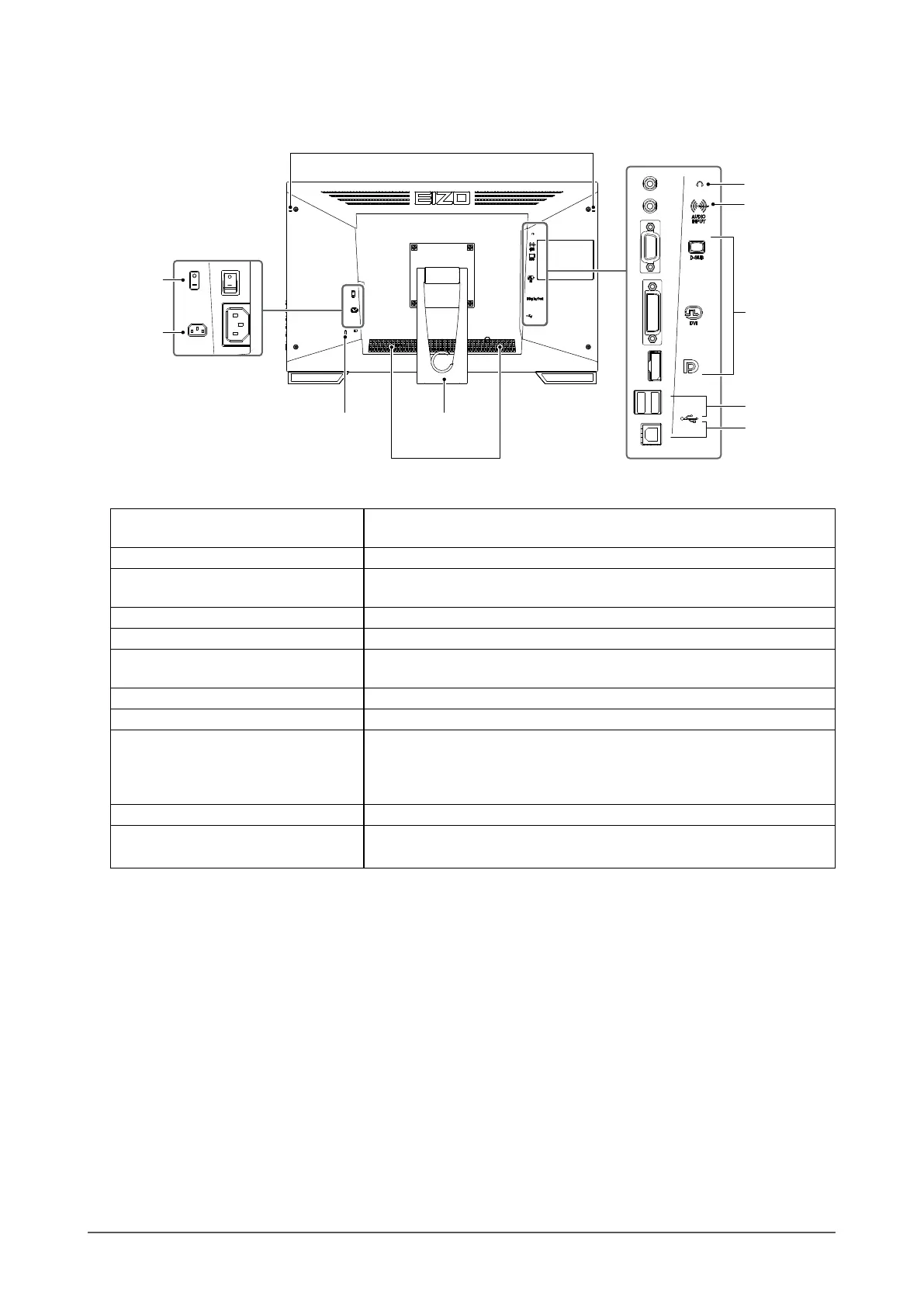

Chapter 1 Introduction
●
Rear
11
12
13
8
9
10
14
15
17
18
16
8. Main power switch
Turns the main power on or o.
| : ON, ○: OFF
9. Power connector Connects the power cord.
10. Touch pen holder attachment
hole
*3
Used to attach a touch pen holder.
11. Security lock slot Complies with Kensington’s MicroSaver security system.
12. Speaker Outputs audio source.
13. Stand
(with cable holder)
Used to adjust the angle of the monitor screen.
14. Headphone jack Connects the headphones.
15. Analog voice input connector Outputs external voice from the monitor.
16. Input signal connector
Connect it to the PC.
Upper port: D-Sub mini 15-pin connector
Medium port: DVI-D connector
Lower port: DisplayPort connector
17. USB downstream port Connects a peripheral USB 2.0 device.
18. USB upstream port
Connects the USB cable for using the monitor as a touch panel monitor or
for using the USB Hub function.
*3 The touch pen holder is supplied with the touch pen (Accessories (page 36)). For the attachment method,
see “1-3. Attaching the Touch Pen Holder” (page 9).
