Eizo DuraVision FDX1001T User Manual

27
Chapter 5 Reference

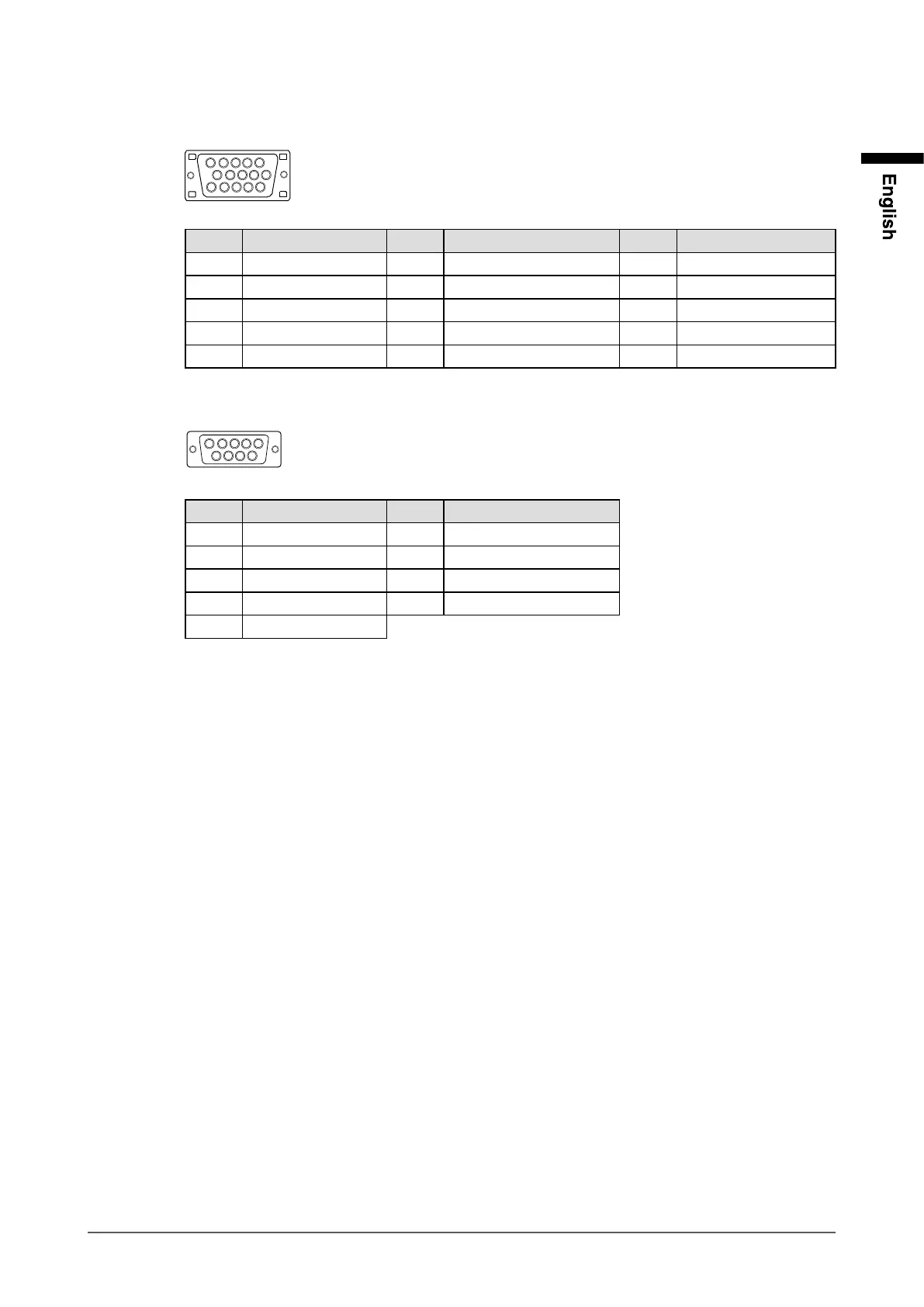

Connector Pin Assignment
D-Sub mini 15-pin connector
5
1
3
4
2
8
7
6
9
10
12
1314
15
11
Pin No. Signal Pin No. Signal Pin No. Signal
1 Red video 6 Red video ground 11 NC*
2 Green video 7 Green video ground 12 Data (SDA)
3 Blue video 8 Blue video ground 13 H. Sync
4 NC* 9 NC* 14 V. Sync
5 Ground 10 Ground 15 Clock (SCL)
(NC*: No Connection)
Serial port for the touch panel
1
5
3
2
4
7
8
9
6
Pin No. Signal Pin No. Signal
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 Ground
•
•

Eizo DuraVision FDX1001T Specifications

General

Brand	Eizo
Model	DuraVision FDX1001T
Category	Monitor
Language	English
