Chapter 5 Reference
Chapter 5 Reference
5-1. Attaching an Arm
The stand can be removed and replaced with an arm (or another stand) to be attached to the monitor. Use
an arm or stand of EIZO option.
ATTENTION
When attaching an arm or stand, follow the instructions of their user’s manual.
When using another manufacturer’s arm or stand, conrm the following in advance and select one conforming to
the VESA standard. Use the M4 × 12 mm screws in use by this monitor.
- Clearance between the screw holes : 100 mm × 100 mm
- Thickness of plate : 2.6 mm
- Strong enough to support weight of the monitor unit (except the stand) and attachments such as cables.
Connect the cables after attaching an arm or a stand.
Since the monitor and arm are so heavy, dropping them may result in injury or equipment damage.
Do not turn the monitor lengthwise.
•
•
•
•
•

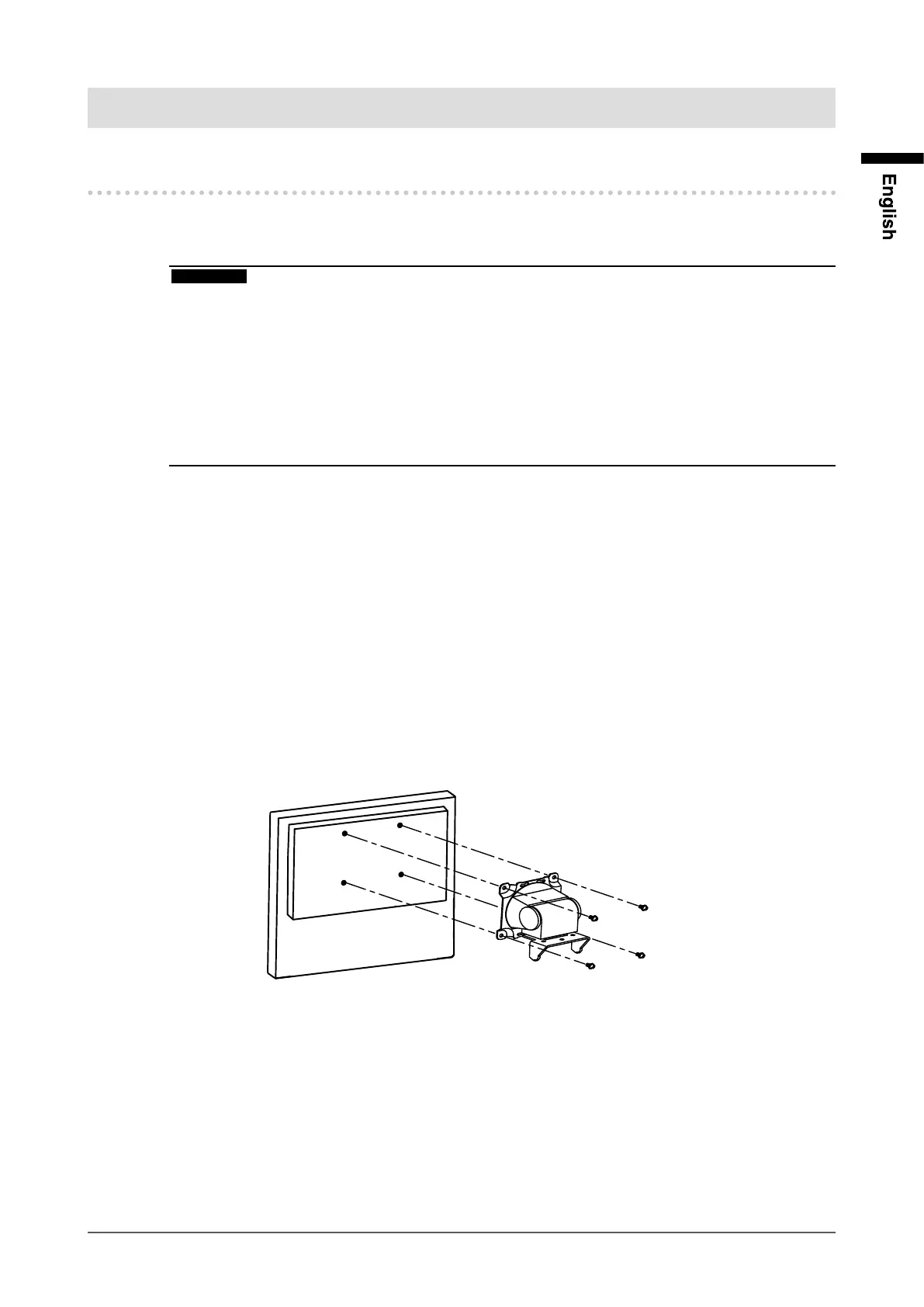

[Attachment Procedure]
1
Lay the LCD monitor on a soft cloth spread over on a stable surface with the
panel surface facing down.
2
Remove the stand.
Prepare a screwdriver. Unscrew the four screws securing the unit and the stand with the
screwdriver.
3
Attach the monitor to the arm or stand.
Secure the monitor to the arm or stand using the screws specied in the user’s manual of the arm or stand.
To Next Page
