Eizo FLEXSCAN EV2456 User Manual

17

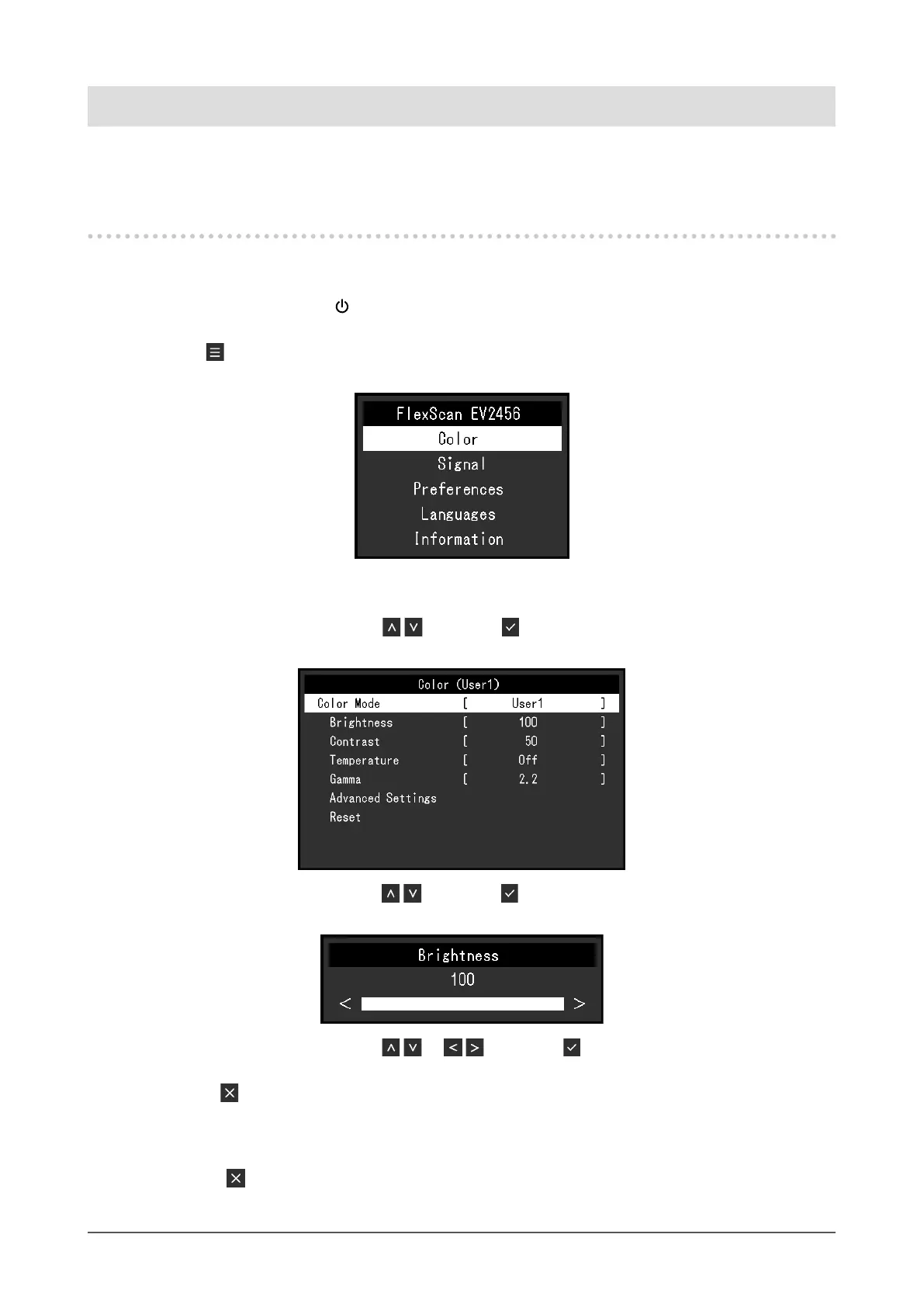

Chapter 3 Advanced Adjustment/Setting
Chapter 3 Advanced Adjustment/Setting
This chapter describes the advanced monitor adjustment and setting procedures using the Setting menu.
For basic functions, see “Chapter 2 Basic Adjustment/Setting” (page 12).
3-1. Basic Operation of the Setting menu
1.
Menu display
1. Touch any switch (except ).
The operation guide appears.
2. Select .
The Setting menu appears.
2.
Adjusting/setting
1. Select a menu to adjust/set with and select .
The Sub menu appears.
2. Select an item to adjust/set with and select .
The Adjustment/Setting menu appears.
3. Perform adjustment/setting with or and select to accept the changes.
The Sub menu appears.
Selecting
during adjustment/setting will cancel the adjustment/setting and restore the state prior to
making changes.
3.
Exiting
1. Selecting several times will terminate the Setting menu.

Eizo FLEXSCAN EV2456 Specifications

General

3D	No
HD type	WUXGA
Pixel pitch	0.27 x 0.27 mm
Screen shape	Flat
Display diagonal	24.1 \
Separate H/V sync	Yes
Display resolution	1920 x 1200 pixels
Display technology	LED
Native aspect ratio	16:10
Vertical scan range	55 - 76 Hz
Horizontal scan range	31 - 81 kHz
Viewable size, vertical	324 mm
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	518.4 mm
Display brightness (typical)	350 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA)
USB hub version	3.2 Gen 1 (3.1 Gen 1)
Headphone connectivity	3.5 mm
USB upstream port type	USB Type-B
USB Type-A downstream ports quantity	2
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (max)	44 W
Power consumption (standby)	0.5 W
Power consumption (typical)	13.5 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	CB, CCC, CE, China RoHS, ENERGY STAR, EPEAT Bronze, Federal Communications Commission (FCC), ICES, PSE, RCM, RoHS, TCO, TUV, UKCA, VCCI, WEEE, cTUVus
Tilt up angle range	- °
Number of OSD languages	9
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN, SWE
RMS rated power	2 W
Certification	CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), TCO Certified Generation 9, EPEAT 2018 (US), TÜV/Blue Low Light Content, TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC
Product color	Black
Cables included	AC, USB
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	190 mm
Height (with stand)	351.4 mm
Weight (with stand)	5700 g
Depth (without stand)	45.5 mm
Width (without stand)	531 mm
Height (without stand)	341.9 mm
Weight (without stand)	3700 g
