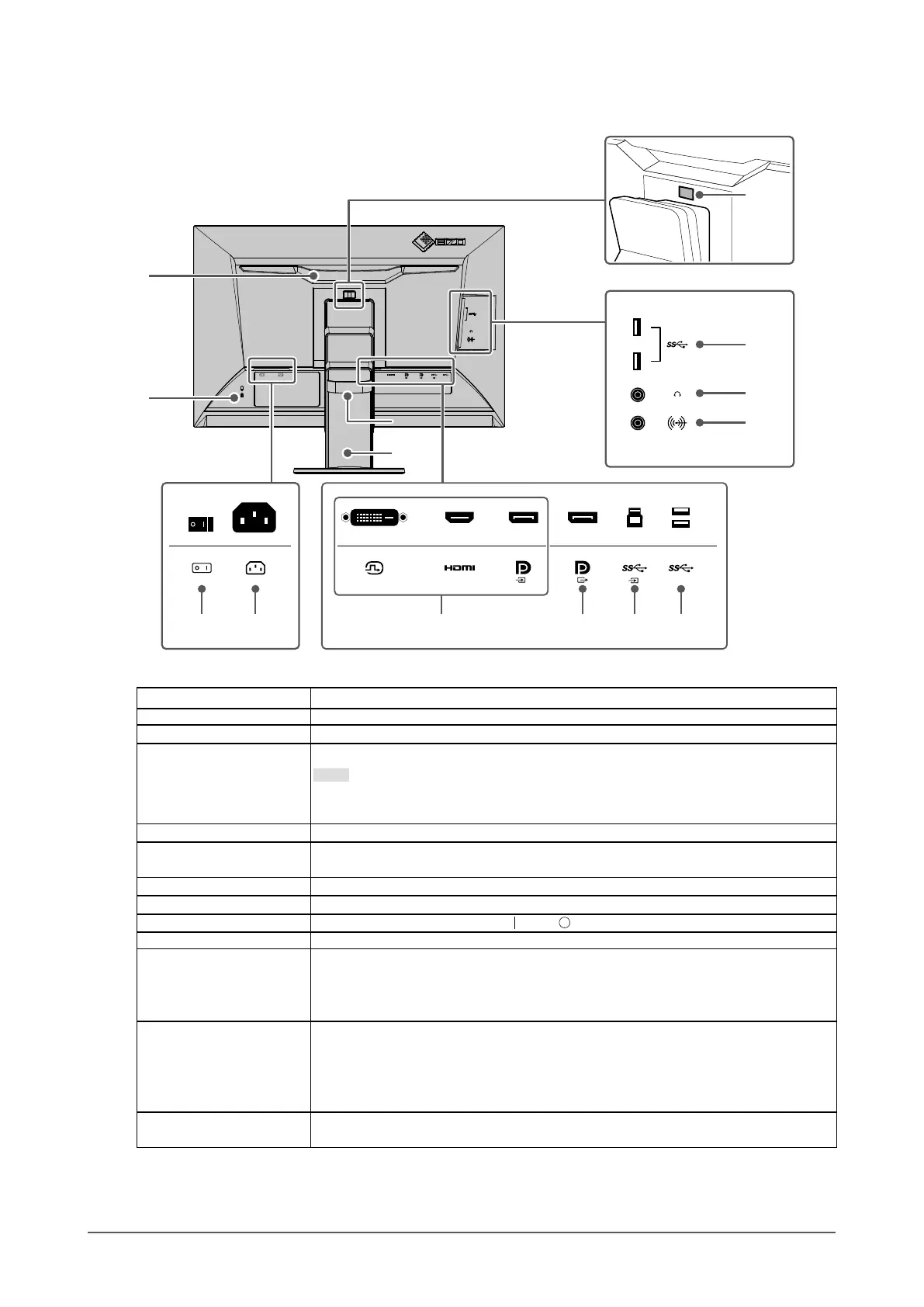

Rear
13
12
10
9
11
8
16 17 18 914 15
7
6
6. Handle This handle is used for transportation.
7. Security lock slot Complies with Kensington’s MicroSaver security system.
8. Lock button Use this button to remove the monitor from the stand.
9. USB downstream
port
Connects to a peripheral USB device.
Note
• When connecting (linking together) three or more monitors in a daisy chain
connection using the USB hub function, use the bottom USB downstream port.
10. Headphone jack Connects to headphones.
11. Stereo mini jack If you connect an external device using the stereo mini jack cable, external audio
can be output from the monitor.
12. Cable holder Holds the monitor cables.
13. Stand
*1
Adjusts the height and angle (tilt and swivel) of the monitor.
14. Main power switch
Turns the main power on or off.
: On, : Off
15. Power connector Connects the power cord.
16. Input signal
connectors
The following connectors are available on the monitor rear in order of left to right.
DVI connector
HDMI connector
DisplayPort connector
17. DisplayPort output
connector
When connecting DisplayPorts in a daisy chain connection, this connects to the
DisplayPort input connectors of the other monitors in the conguration. When
making a connection, it is necessary to change the version of the DisplayPort on
the monitor outputting the DisplayPort signal from Version 1.1 (the default setting)
to Version 1.2 (refer to “DisplayPort” (page 27)).
18. USB upstream port
Connect the USB cable when using software that requires USB connection or when
using the USB hub function.
*1 An optional arm (or optional stand) can be attached by removing the stand section.
10
Chapter 1 Introduction
