3-1 Connecting More than Two PCs to the
Monitor
More than two PCs can be connected to the monitor through the D-Sub mini 15
pin, the DVI-D and the DisplayPort connector on the back of the monitor.

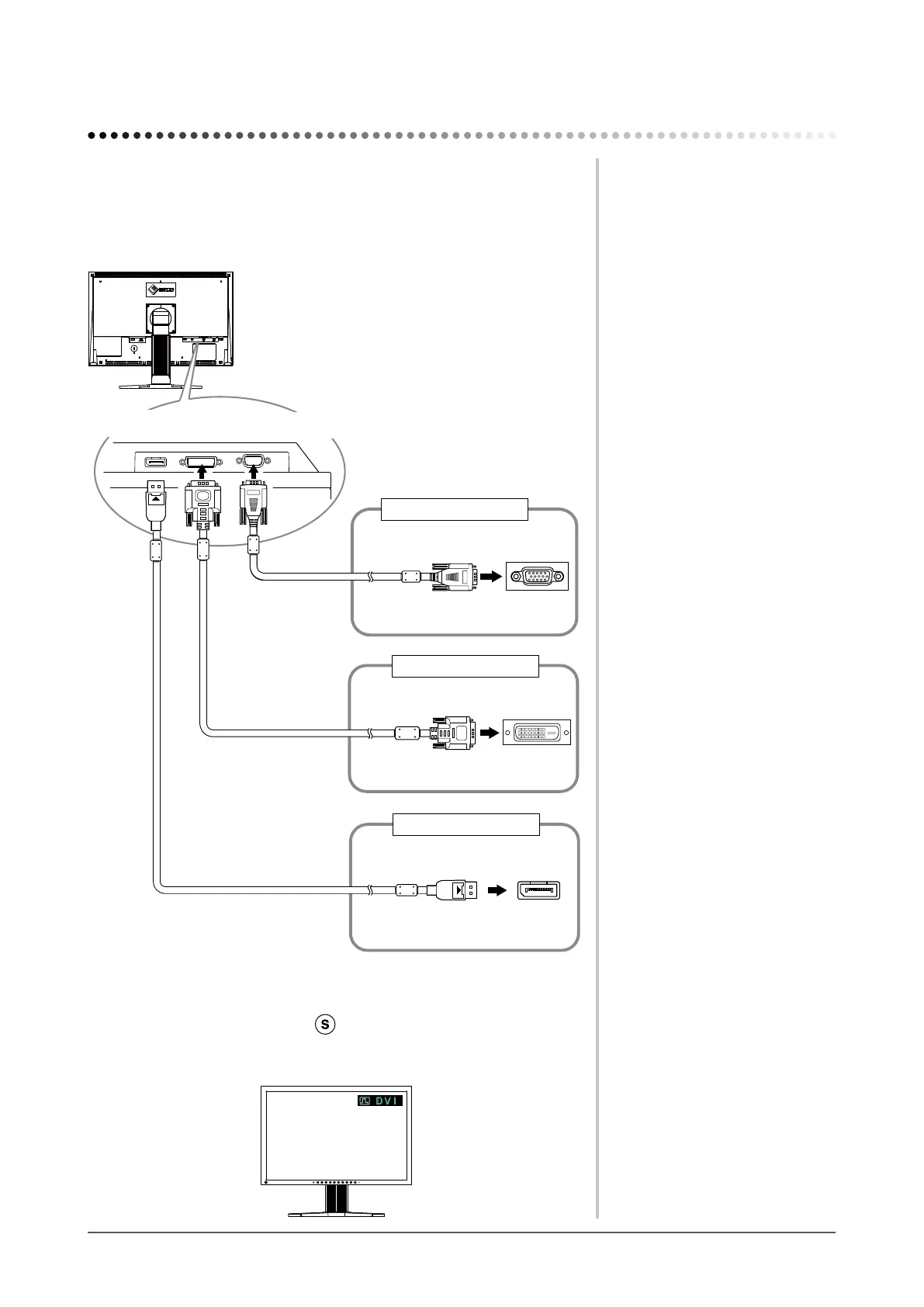

Connection examples
D-Submini
15-pinConnector
DVI-Dconnector
Signalcable
(suppliedFD-C39)
Signalcable
(suppliedMD-C87)
To PC 1
To PC 2
To PC 3
Signalcable
(PP200 option)
D-Submini
15-pinConnector
DVI-Dconnector
DisplayPort connector
DisplayPort
connector
Analog
Digital
Digital
●
To switch the input signal
The input signal switches each time
is pressed.
When the signal is switched, the active input port name appears at the top right
corner of the screen.
