Eizo FLEXSCAN S2433W User Manual

30
Chapter3ConnectingCables
3-3 Connecting Peripheral USB Devices
This monitor has a hub compatible with USB. Connected to a PC compatible
with USB or another USB hub, this monitor functions as a USB hub allowing
connection to peripheral USB devices.
● Required System Environment
(1) A PC equipped with a USB port or another USB hub connected to
a USB compatible PC
(2) Windows 2000/XP/Vista or Mac OS 9.2.2 and Mac OS X 10.2 or later
(3) EIZO USB cable (MD-C93)
● Connection Procedure (Setup of USB Function)
(1) Connect the monitor rst to a PC using the signal cable, and run
the PC.
(2) Connect the supplied USB cable between the downstream USB
port of a USB compatible PC (or another USB hub) and the
monitor’s upstream USB port.
(3) Connect the peripheral USB device to the USB port (downstream)
of the monitor.
The USB hub function is set up automatically upon connection of
the USB cable.
Attention
• This monitor may not work depending
on PC, OS or peripheral devices
to be used. For USB compatibility
of peripheral devices, contact their
manufactures.
• Devices connected to the USB port
(upstream and downstream) work
when the monitor is in power saving
mode or when the power button of
the monitor is Off. Therefore, power
consumption of the monitor varies
with connected devices even in the
power saving mode.
• When the main power switch is Off,
device connected to the USB port will
not operate.

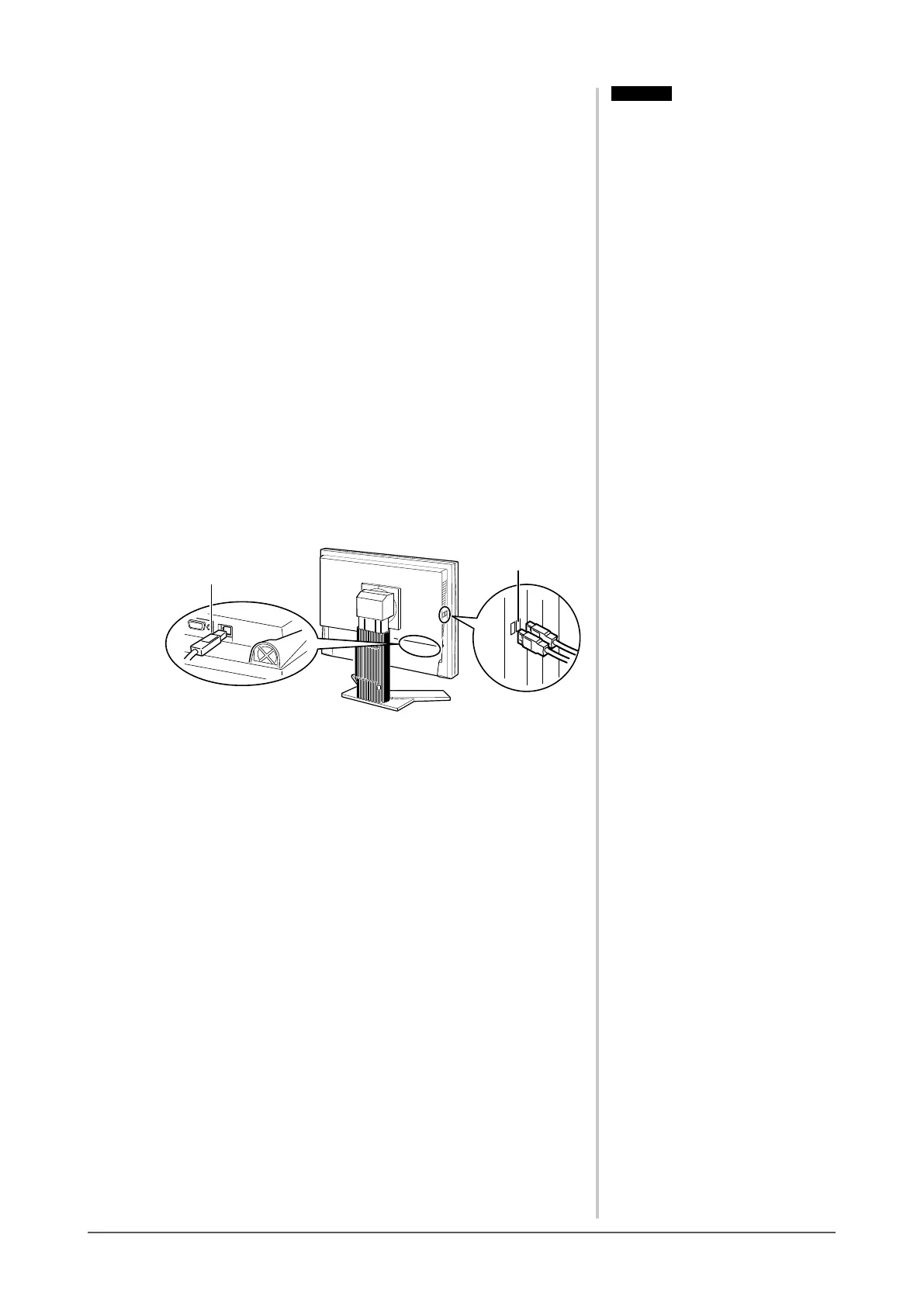

Upstream
Downstream

Eizo FLEXSCAN S2433W Specifications

General

Pixel pitch	0.270 x 0.270 mm
Aspect ratio	16:10
Response time	6 ms
Display diagonal	24.1 \
Display resolution	1920 x 1200 pixels
Vertical scan range	55 - 76 Hz
Horizontal scan range	31 - 94 kHz
Viewable size diagonal	611 mm
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Digital vertical frequency	59 - 61 Hz
Digital horizontal frequency	31 - 76 kHz
Display brightness (typical)	360 cd/m²
Display viewable area (HxV)	518.4 x 324 mm
HDCP	Yes
I/O ports	DisplayPort
USB hub version	2.0
Headphone connectivity	3.5 mm
USB Type-A downstream ports quantity	3
RMS rated power	1 W
Certification	TCO Displays 5.0, EPEAT Gold, TÜV/Ergonomics ( ISO 13406-2), TÜV/GS, c-Tick, CE, CB, UL (cTÜVus), CSA (cTÜVus), FCC-B, Canadian ICES-003-B, TÜV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, EIZO Eco Products 2009
Product color	Black
Market positioning	-
Compliance industry standards	VESA DDC 2B
Power consumption (typical)	95 W
Power consumption (PowerSave)	1.5 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	208.5 mm
Height (with stand)	538 mm
Weight (with stand)	10200 g
Depth (without stand)	85 mm
Width (without stand)	566 mm
Height (without stand)	367 mm
Weight (without stand)	7200 g
